Pin
Description
Pin 5
Relay 2 NC
Pin 6
Relay 2 NO
Pin 7
Input 1 (Ground to activate)
Pin 8
GND
Pin 9
Relay 3 COM
Pin 10
Relay 3 NC
Pin 11
Relay 3 NO
Pin 12
Relay 4 COM
Pin 13
RELAY 4 NC
Pin 14
RELAY 4 NO
Pin 15
Input 2 (Ground to activate)

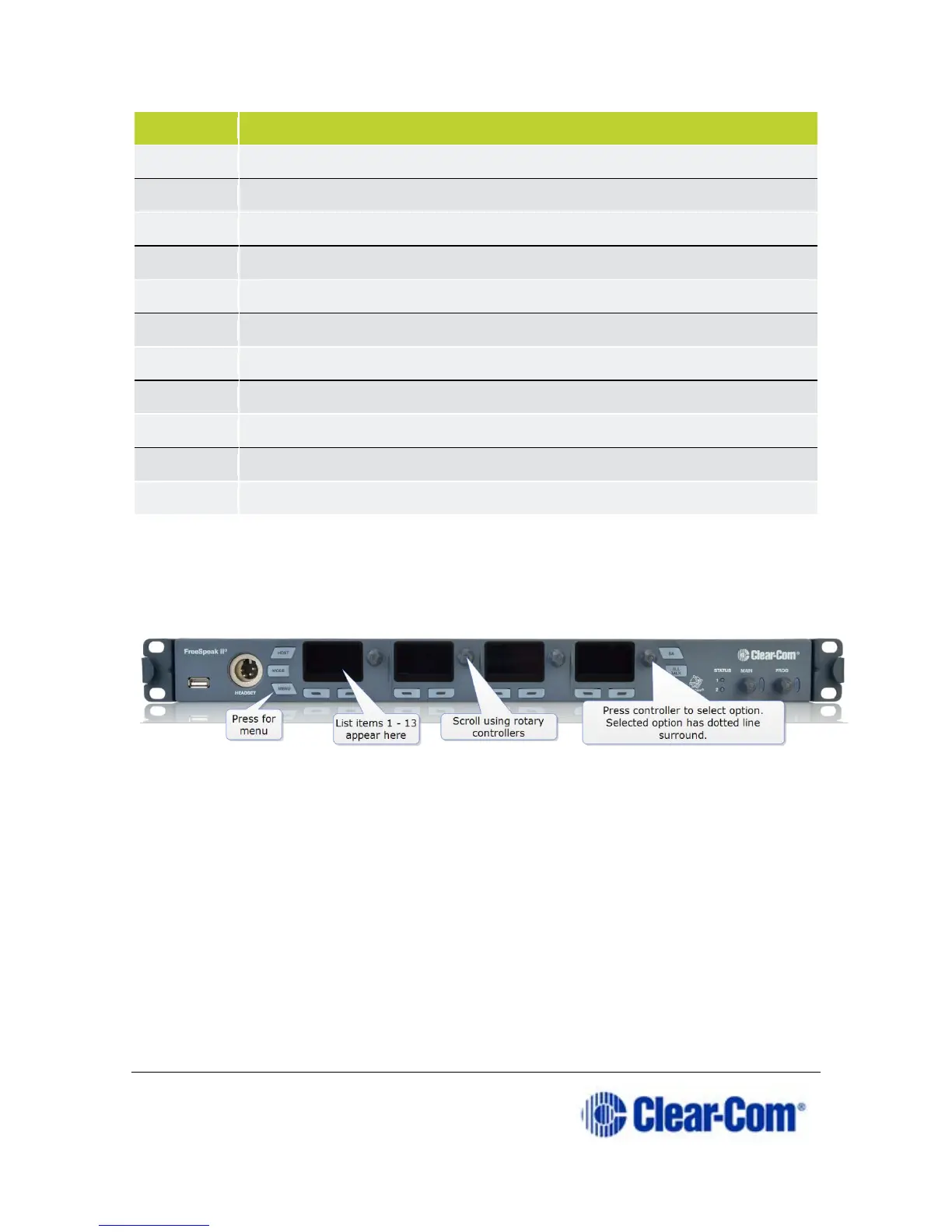

2.6 FreeSpeak II Base Station menu 'at-a-glance'
guide
2.6.1 Audio Settings:
• Headset
• Program input
• Stage announce
2.6.2 Station settings:
• Program audio on Base Station Keysets (1-4)
• Display settings
• Make Base headset a Group Member (listen to group announcements)
