Page 88 399G169 Rev B 27 April 2016
Note: Configure port settings (power, termination, port function, port levels etc.) as
required.
3) Assign Channels to beltpack keys (A, B, C, D, Reply)
Audio assignment for beltpacks is always done with a Role. A Role is a pre-
defined beltpack configuration map. You select a Role for a beltpack when it
is first powered on. The Role a beltpack is using can be changed from the
Base station, the CCM or the beltpack itself.
In the first case, it is easiest to use the default Role. This puts Channel 1 and
Channel 2 on to the beltpack keys.
To change the Channel on a beltpack you need to edit the Role that beltpack

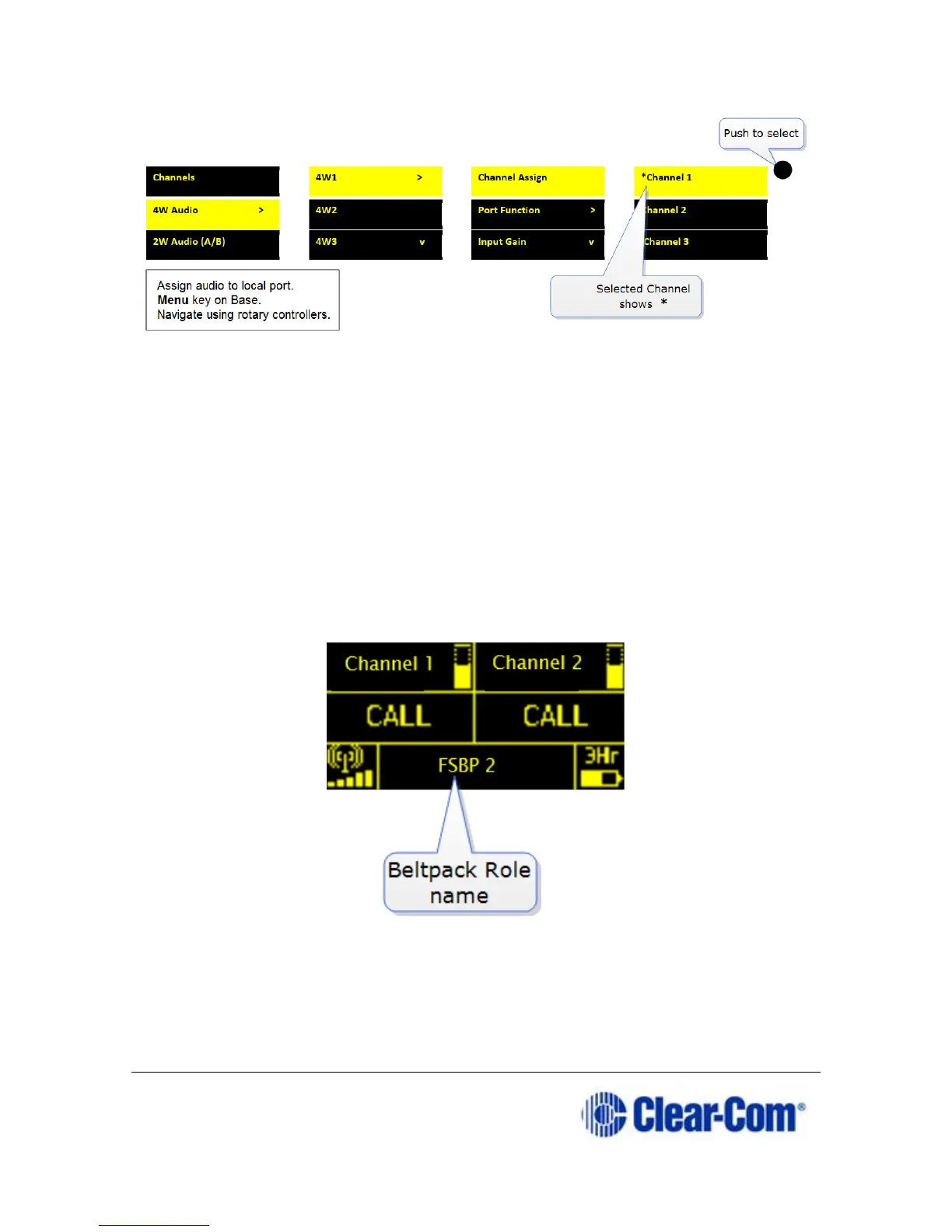

is using. Find the beltpack Role name at the bottom of the beltpack screen:
Edit Beltpack Roles in the CCM:
