833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
65-0296—01 26 750-241
After the first safety parameter group has been confirmed by
the user (by pressing the Yes button), the next safety

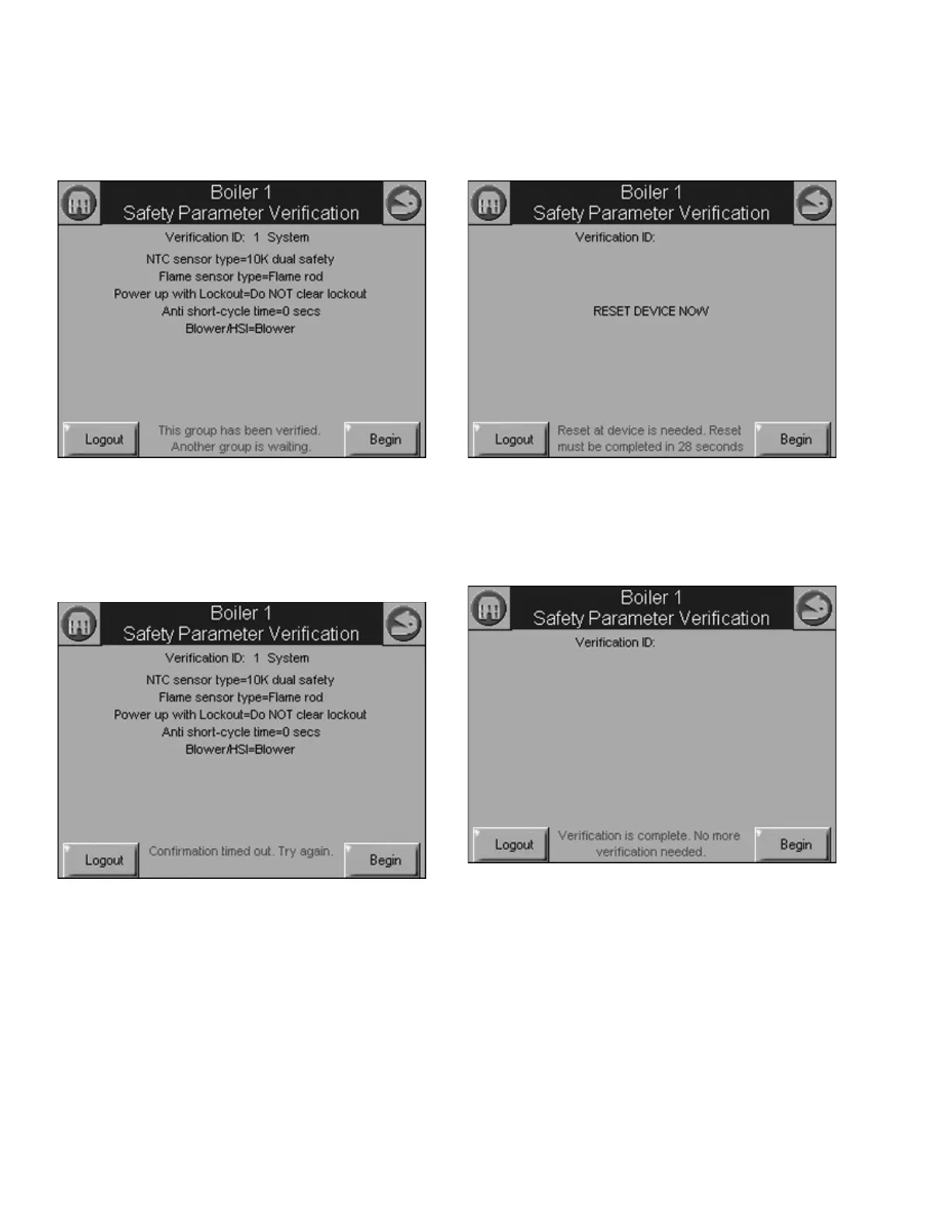

parameter group waits for verification as shown in Fig. 53.
Fig. 53. Safety parameter settings confirmed; next group
waiting for confirmation.
The user has 30 secs to confirm each safety configuration
group’s settings. If the user takes too long to confirm the
settings, an error message is displayed, as shown in Fig. 54.
Fig. 54. Confirmation timed out.
After all safety parameter groups have been verified, the user
must press the Reset button on the 833-3639A within 30
seconds to confirm the correct device. See Fig. 55.
Fig. 55. Reset 833-3639A.
When the user has pressed Reset button on the 833-3639A,
completing verification procedure, a Verification Complete
screen is displayed, as shown in as shown in Fig. 56.
Fig. 56. Safety parameter configuration complete.
