ProtoNode Gateway
750-426 17

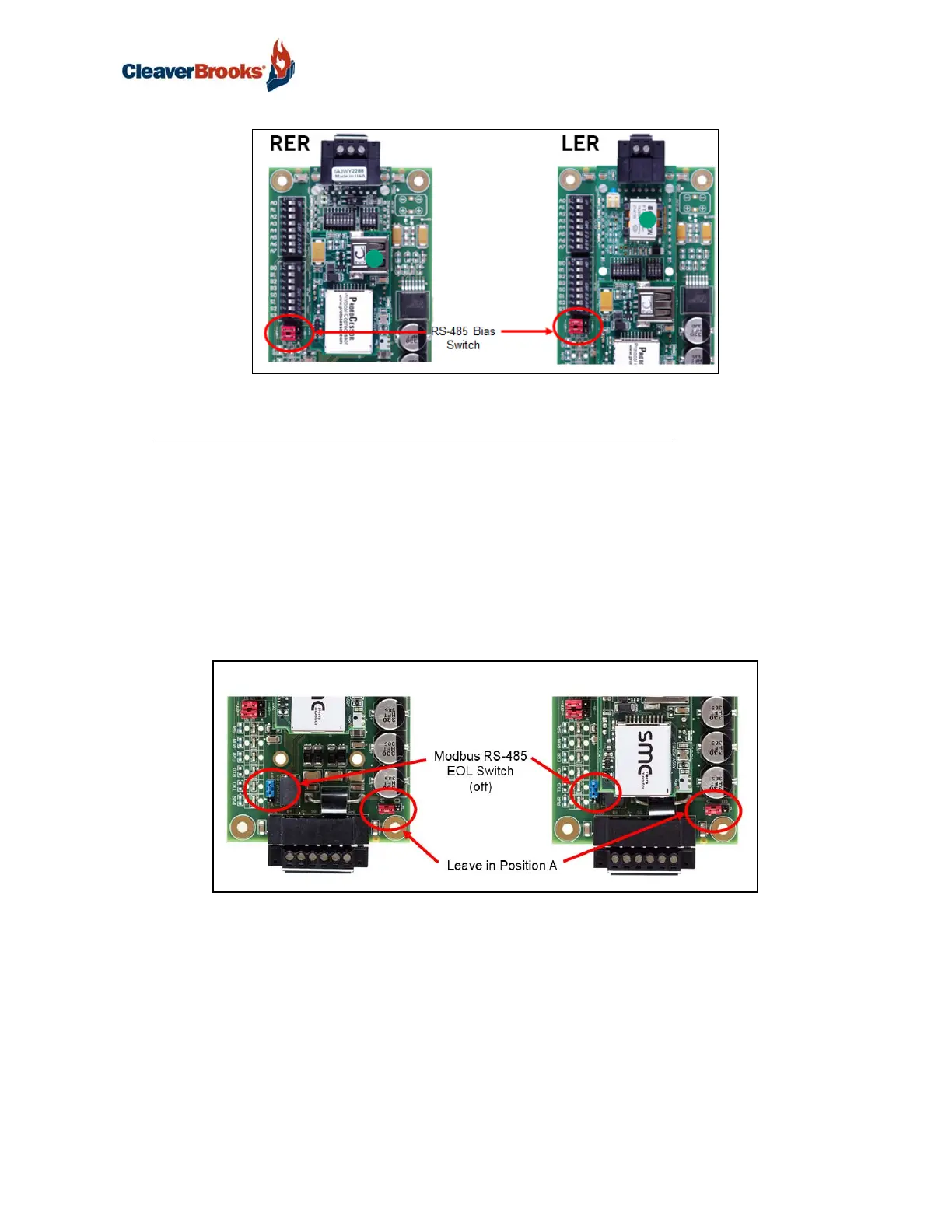

FIGURE 11 - RS-485 Bias Switch
3.2.2 End of Line Termination Switch for the Modbus RS-485 Device Network
On long RS-485 cabling runs, the RS-485 trunk must be properly terminated at each end.
The ProtoNode has an End Of Line (EOL) blue jumper. The default setting for this Blue EOL switch is
OFF with the jumper straddling the pins closest to the inside of the board of the ProtoNode.
On short cabling runs the EOL switch does not to need to be turned ON.
If the ProtoNode is placed at one of the ends of the trunk, set the blue EOL jumper to the ON posi-
tion straddling the pins closest to the outside of the board of the ProtoNode.
Always leave the single Red Jumper in the A position (default factory setting).
FIGURE 12 - RS-485 EOL Termination Switch
(off)
RER
LER
