CleaverBrooks ProtoNode User Manual

ProtoNode Gateway
26 750-426
4.4 BACnet/IP and Modbus TCP/IP: Setting IP Address for Field Network
After setting a local PC to the same subnet as the ProtoNode (Section 5.1), open a web browser on
the PC and enter the IP Address of the ProtoNode; the default address is 192.168.1.24.
The Web Configurator is displayed as the landing page (Figure 27).
To access the FieldServer Graphic User Interface (FS-GUI), click on the “Diagnostics & Debugging”
button in the bottom right corner of the page.

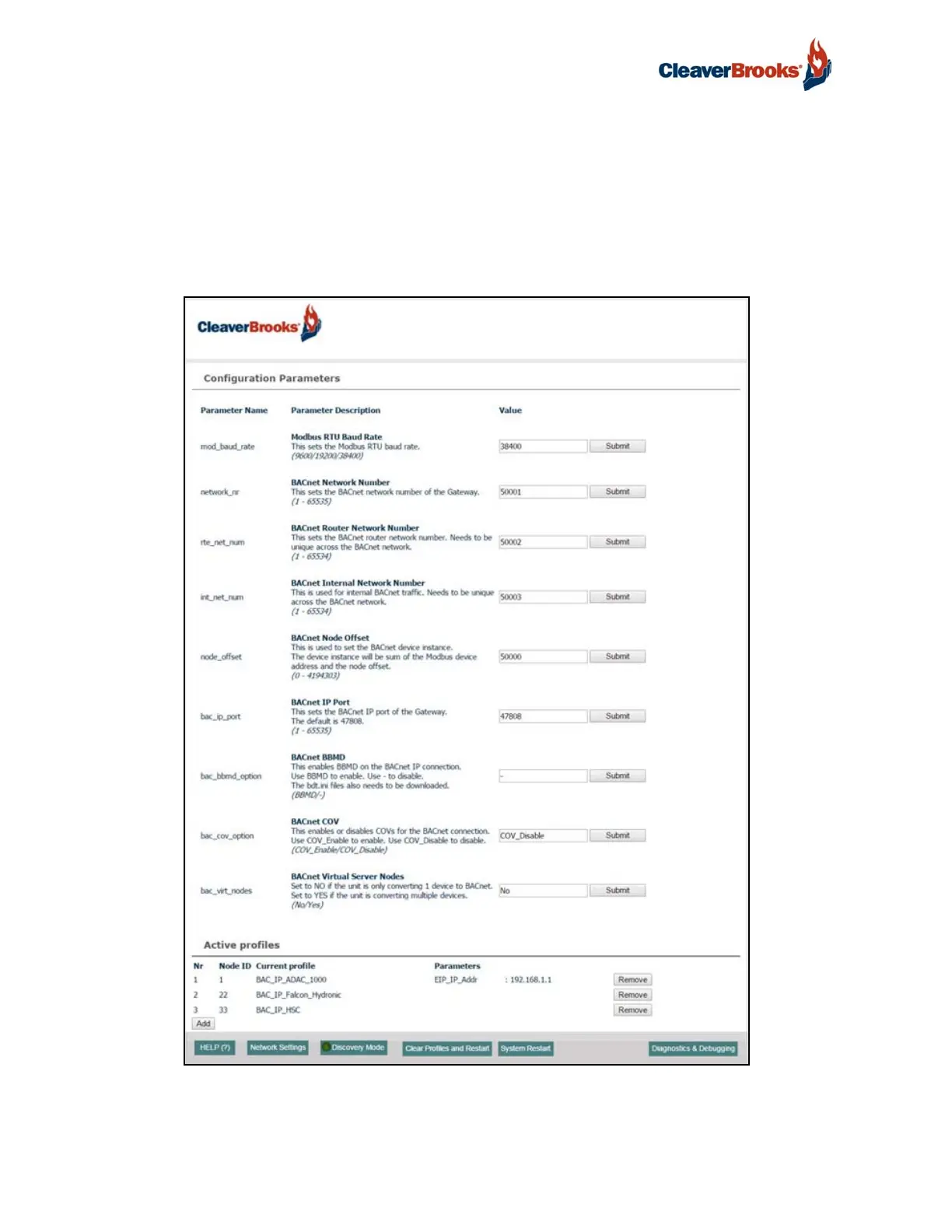

FIGURE 27 - Web Configurator Screen with Active Profiles
