ProtoNode Gateway
750-426 35
On the registration page, fill in user credentials and all other device information fields for registration
of each individual ProtoNode in the field. The Username and Password are the same as those on the
user’s FieldPoP account.
To input the device location do one of the following:
• Enter the address in the address field
• Click the <Get Current Location> button to auto-populate. NOTE: This button will only work if location
services have been enabled on the local browser. If using the Chrome browser and connected via LAN,
this method will not work.
• Drop a location directly on the Google map
• Enter the latitude and longitude manually
Click <Register Device>. Once the device has successfully been registered, the following screen will
appear listing the device details and additional information auto-populated by the ProtoNode.

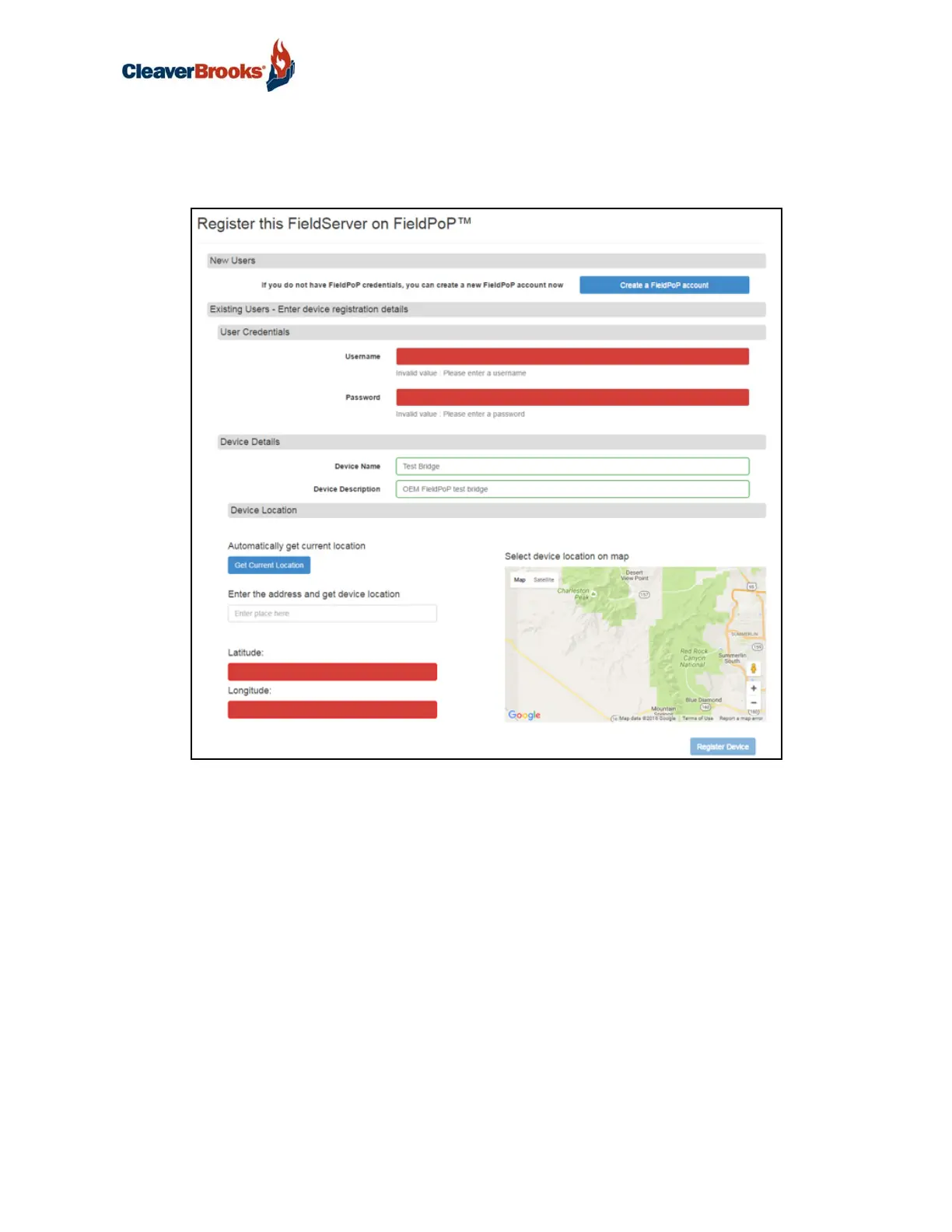

FIGURE 38 - SMC Cloud Registration Page
