ProtoNode Gateway

22 750-426

4.2 Connecting to ProtoNode's Web Configurator

After setting a local PC on the same subnet as the ProtoNode (Section 4.1), open a web browser on

the PC and enter the IP Address of the ProtoNode; the default address is 192.168.1.24.

NOTE: If the IP Address of the ProtoNode has been changed by previous configuration, the

assigned IP Address can be discovered using the FS Toolbox utility. See Appendix A.1 for instruc-

tions.

• Once at the Web App splash page, click the <Login> button.

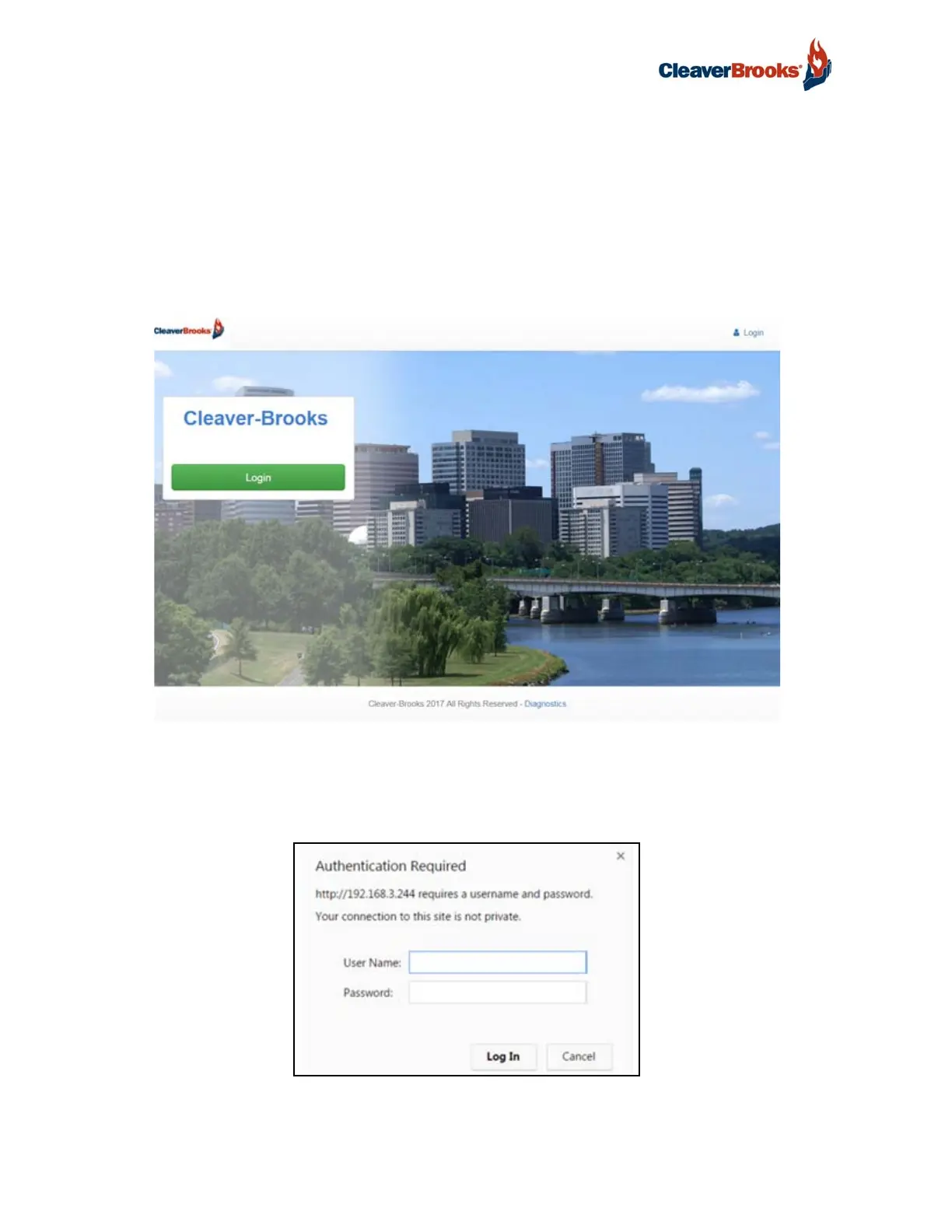

FIGURE 20 - Web App Splash Page

• Enter the previously set up or default user name and password.

NOTE: The default user name is “admin”. The default password is “admin”.

FIGURE 21 - Login Window
