SAILOR 600 VSAT Ka system
2-4 Chapter 2: Introduction 98-148248-C

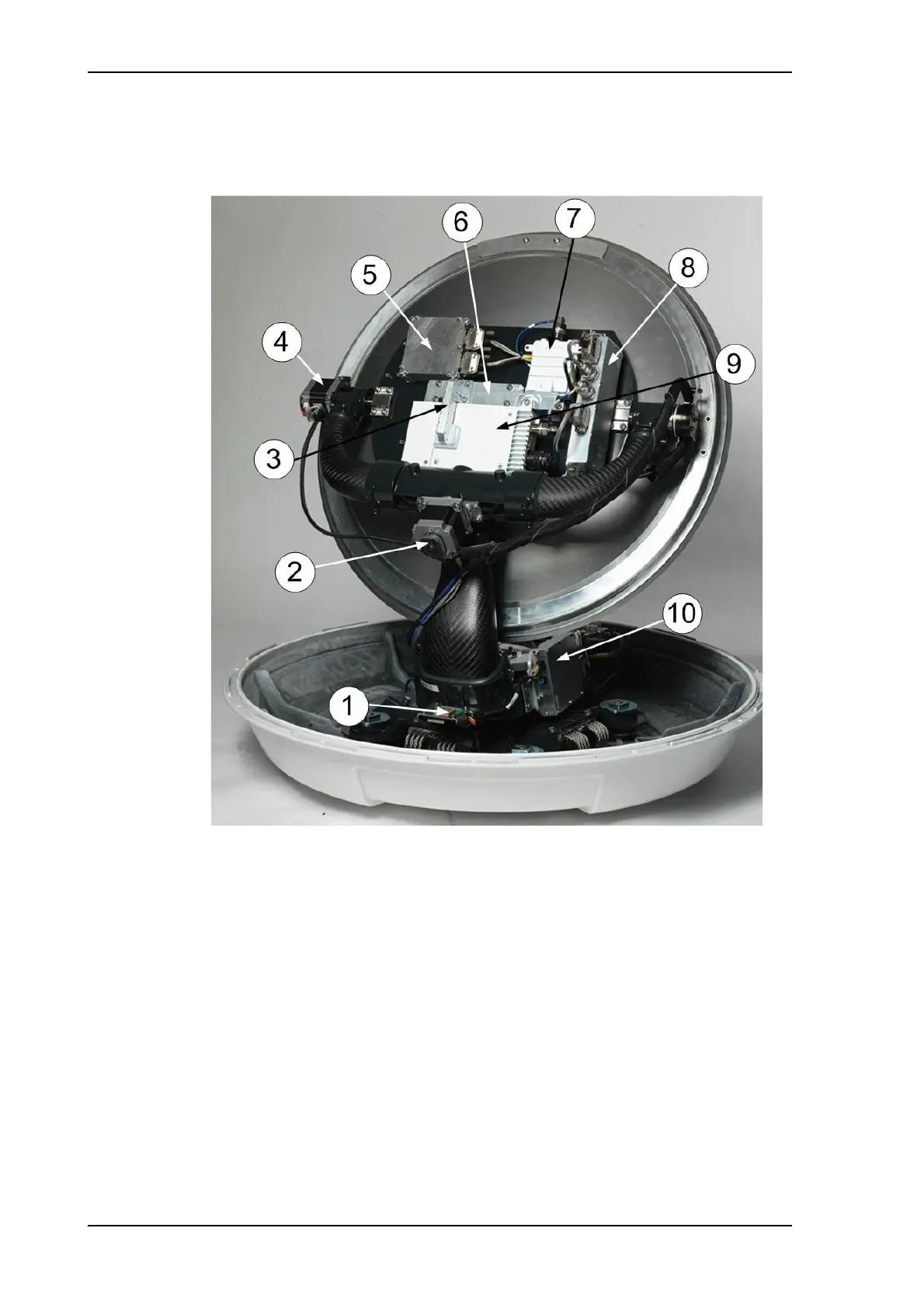

2.1.2.1 Modules in the SAILOR 600 VSAT Ka ADU
1. GNSS module.
2. X-elevation motor and encoder.
3. Wave guide.
4. Elevation motor and encoder
5. Inertial Sensor Module (ISM2).
6. Polariser.
7. Low Noise Block downconverter (LNB),
8. BUC Control Module (BCM).
9. Block Up Converter (BUC).
10. Pedestal Control Module (PCM2).
Figure 2-4: Above Deck Unit modules 1/2
