98-148248-C Chapter 2: Introduction 2-5
2222
Introduction
11. VSAT Interface Module (VIM).
12. Azimuth motor and encoder.
13. Zero Reference Module (ZRM)
14. Feed horn.
15. Field Vector Driver Module (FDM).
A lifting harness (included in the delivery) helps getting the ADU safely into place. Satellite
profile parameters are entered in the built-in web server of the ACU, using a PC. The system
configuration is saved in two modules, there is no loss of data at repair.All modules either
have a service and power LED status indicator or support diagnostics via the web interface.
Each module is encapsulated in a metal box with self-contained mounting bolts. If
necessary, belts and modules can be exchanged on site. The ADU software is updated
automatically when you make a software update of the ACU.

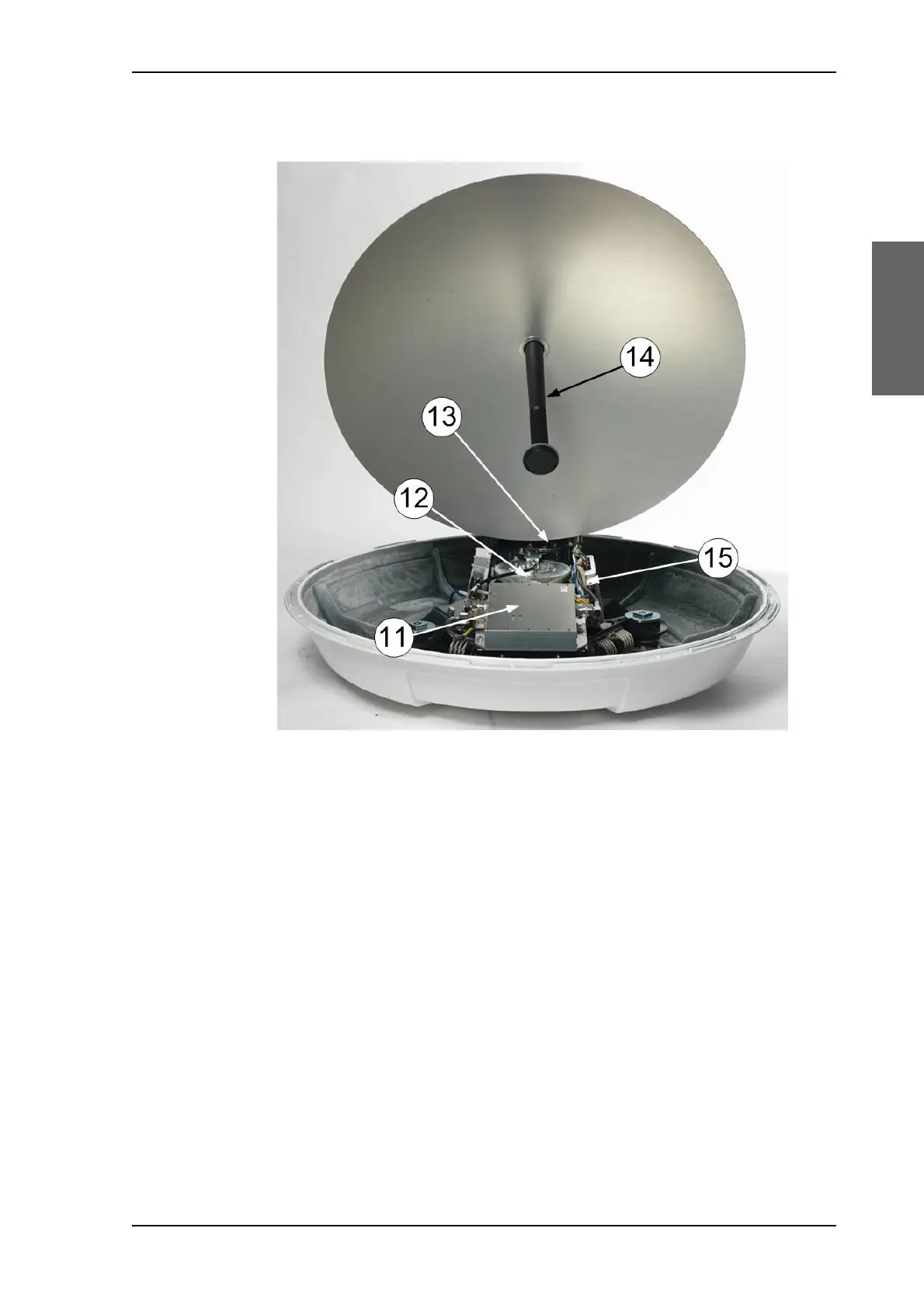

Figure 2-5: Above Deck Unit modules 2/2
