Configuration with the web interface
98-148248-C Chapter 6: Configuration 6-17
6666
The web interface has the following sections:
1. The navigation pane holds the main menu. Clicking an item in the menu opens a sub-
menu in the navigation pane or a new page in the contents section.
2. The top bar shows the signal strength, current status and icons for events, if any, and
the host name.
The signal status field shows the tracking signal strength of the antenna. The signal
strength can vary during operation, depending on the current position relative to the
satellite.
3. The icon bar shows icons for active events, when relevant. The host name is shown on
every page of the web interface.
4. The host name is useful for identifying the system at remote login and when requesting
reports from the system. The host name is recommended to contain the name of the
vessel. To change the host name see To configure the LAN network on page 6-26.
5. The contents section shows the page selected in the navigation pane. This section is
used for viewing or changing settings, or for performing actions.
For a description of the individual items in the contents section see Sections on the
Dashboard on page 6-19.
The following icon may appear in the icon bar in the web interface:

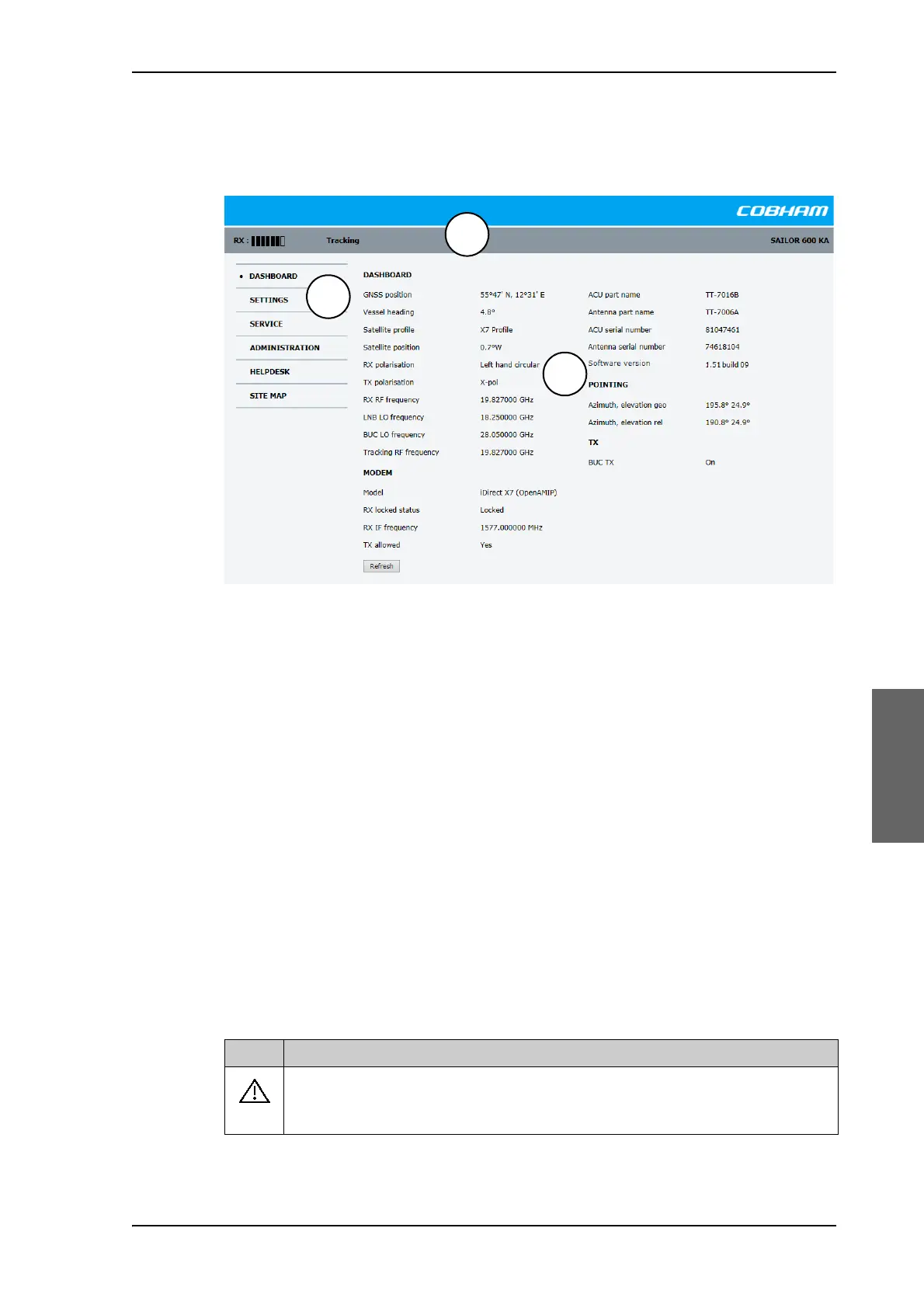

Figure 6-13: Web interface: DASHBOARD of SAILOR 600 VSAT Ka
Icon Explanation
An event is active. Click the icon to see a list of active events. For explanations of
the event messages, see Event messages – overview on page D-1. Note that this
icon will remain in the icon bar as long as the event is active.
Table 6-5: Web interface: Event icon
