8
) The Concord Handilift unit must be moved utilizing a dolly, cart or other wheeled means.
rag the Handilift into position. Dragging the unit may cause damage to the
stomers’ premises.
r
d to help gain access in difficult installations.
E. PREPARATION FOR POSITIONING
1
NEVER d
components and/or the cu
OPTION: To reduce the weight of the unit for easier handling, the unit may be shipped
with the platform and under-platform obstruction sensor, and the automatic ramp
removed. Before installation, the tower base support arms and cantilever arm torsion ba
may also be remove

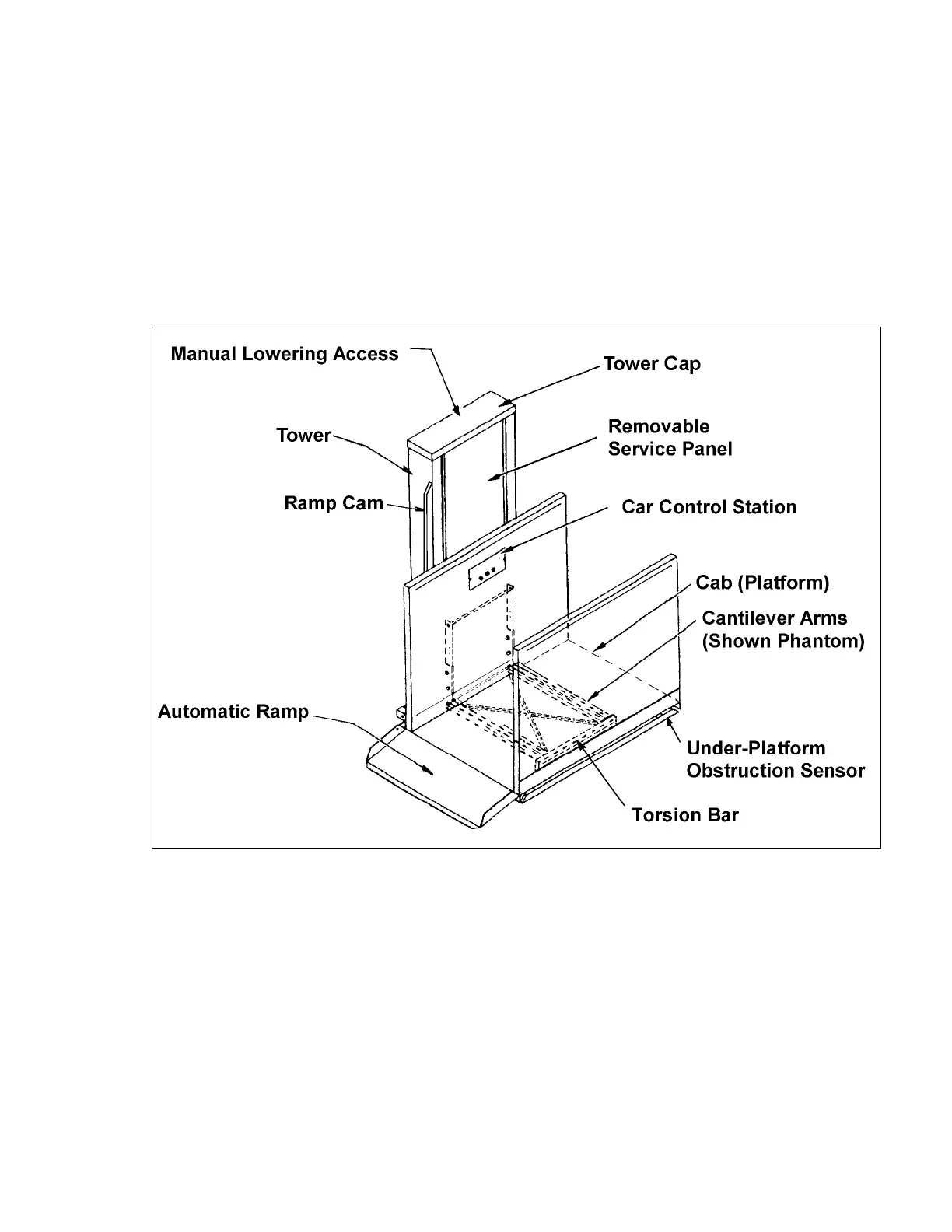

Figure # 2 T andilift Arrangement ypical H
