UNDER PLATFORM SAFETY PROP (OPTIONAL)
The purpose of this prop is to “shore up” the platform, when work is being performed under the carriage.
the cantilever arms and the hole in the safety prop bracket.

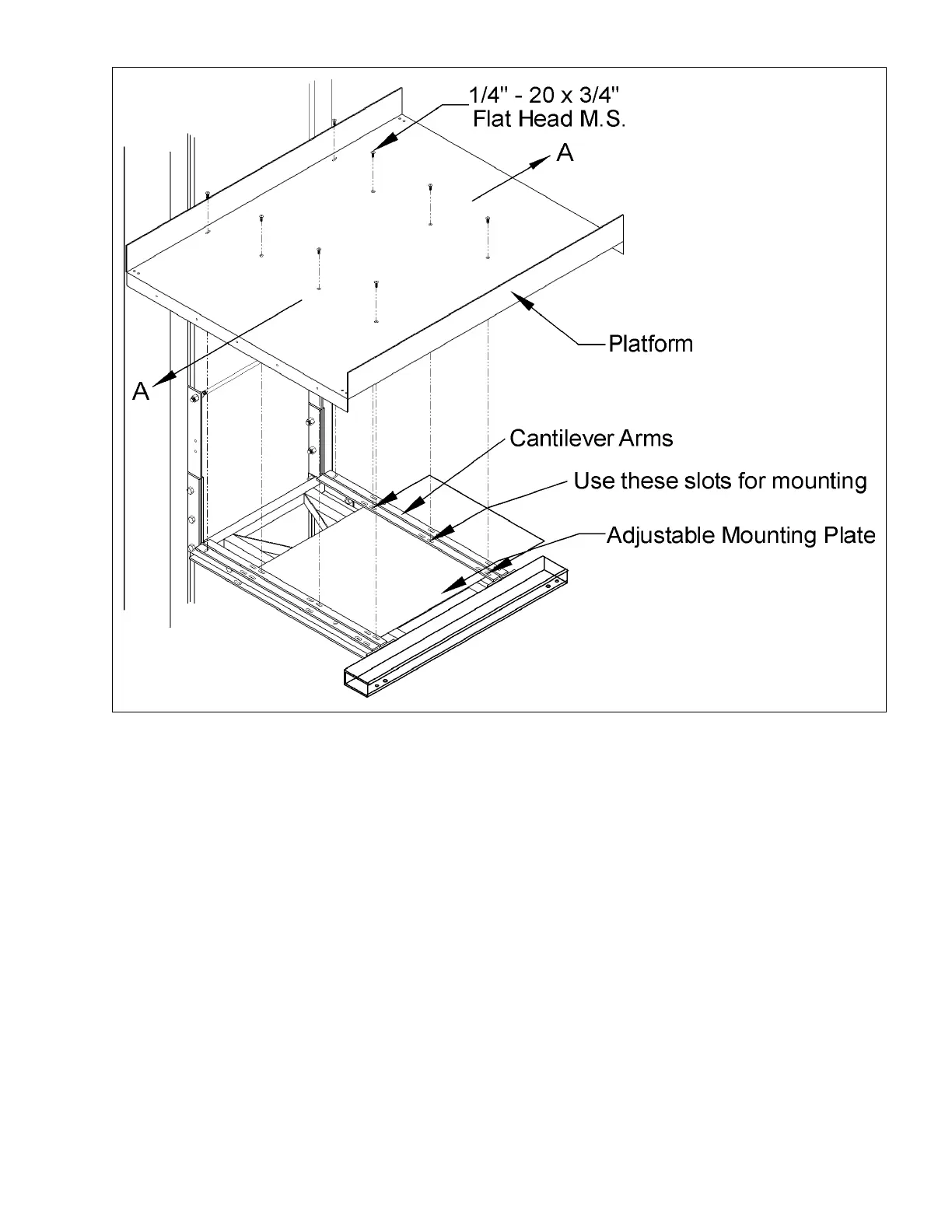

Figure # 8 Attaching Platform to Sling
1) To attach the prop to the carriage, slide the safety prop bracket between the cantilever
arms, as shown in Figure # 9 below.
2) Align the holes provided in
3) Install a 3/8" (9 mm) - 16 x 1 1/2" (38 mm) bolt and nut through the holes.
