CAB ASSEMBLY
1) Install the main power supply. See section Appendix 'A' - Electrical Schematics, Sheet
7.0.
2) a) Before the platform is installed, it is easy to access all parts of the oil reservoir and
lifting bracket. Check that no damage has occurred during shipping or installation.
s
tion, if there is a faulty sensor switch).
Connect the split nut switch and obstruction sensor switches to appropriate plugs in
the car control station. (Refer to the WIRING SCHEMATIC, Sheet 9 in the
b) Check that the split nut switch operates well and check that all electrical connection
are secure.
c) The under-platform sensor switches are attached, pre-wired and tested before
shipping. See Figure # 6. Check all connections and switches for damages. (The
lift will not operate in the DOWN direc
"APPENDIX A - SCHEMATICS" section of this manual).

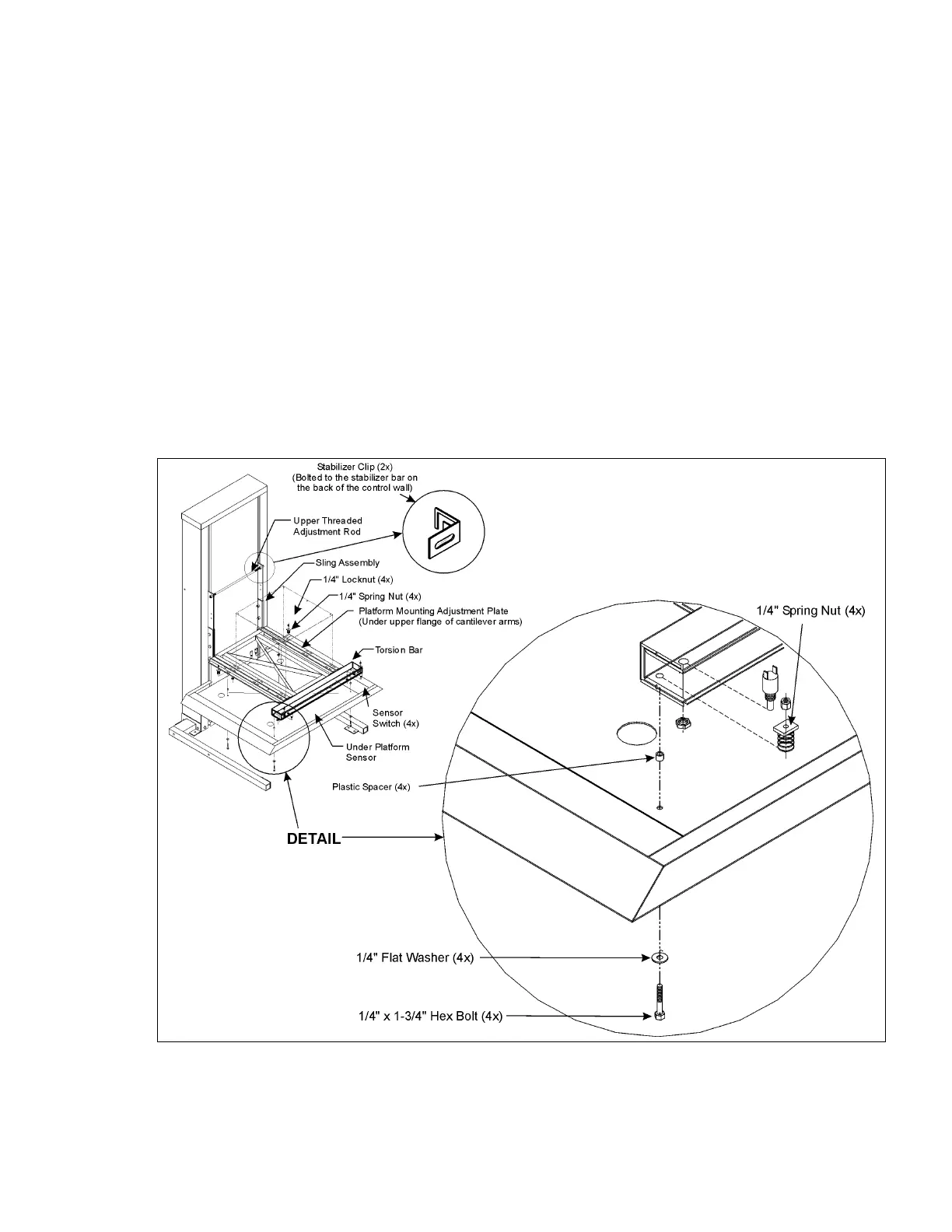

Figure # 6 Attaching the Under-Platform Obstruction Sensor
3) Re-attach the torsion bar, if previously removed.
