ANCHORING
For concrete, use a minimum of 1/2" (13 mm) diameter anchors, at least 2-1/2" (64 mm) in length.
d floors require lag bolts of 1/2" (13 mm) minimum diameter and 2-1/2" (64 mm) minimum length.
Ma sure that the Handilift is level, plumb and square before, during and after you have completed the
anchoring procedure. “Drop” a plumb line along each of the two rails and make sure that the rails a
b in both directions. plum
NOTE
If the ace under tower base has been shimmed at one end, there will be a noticeable open sp
the pit channel and the jack unit. This space MUST be SOLIDLY shimmed between the pit
channel and the foundation. Use a minimum shim size of 4" (102 mm) for the square steel
shims. USE THE LARGEST SHIM POSSIBLE. AVOID THE USE OF STEEL WASHERS
FOR SHIMMING PURPOSES.

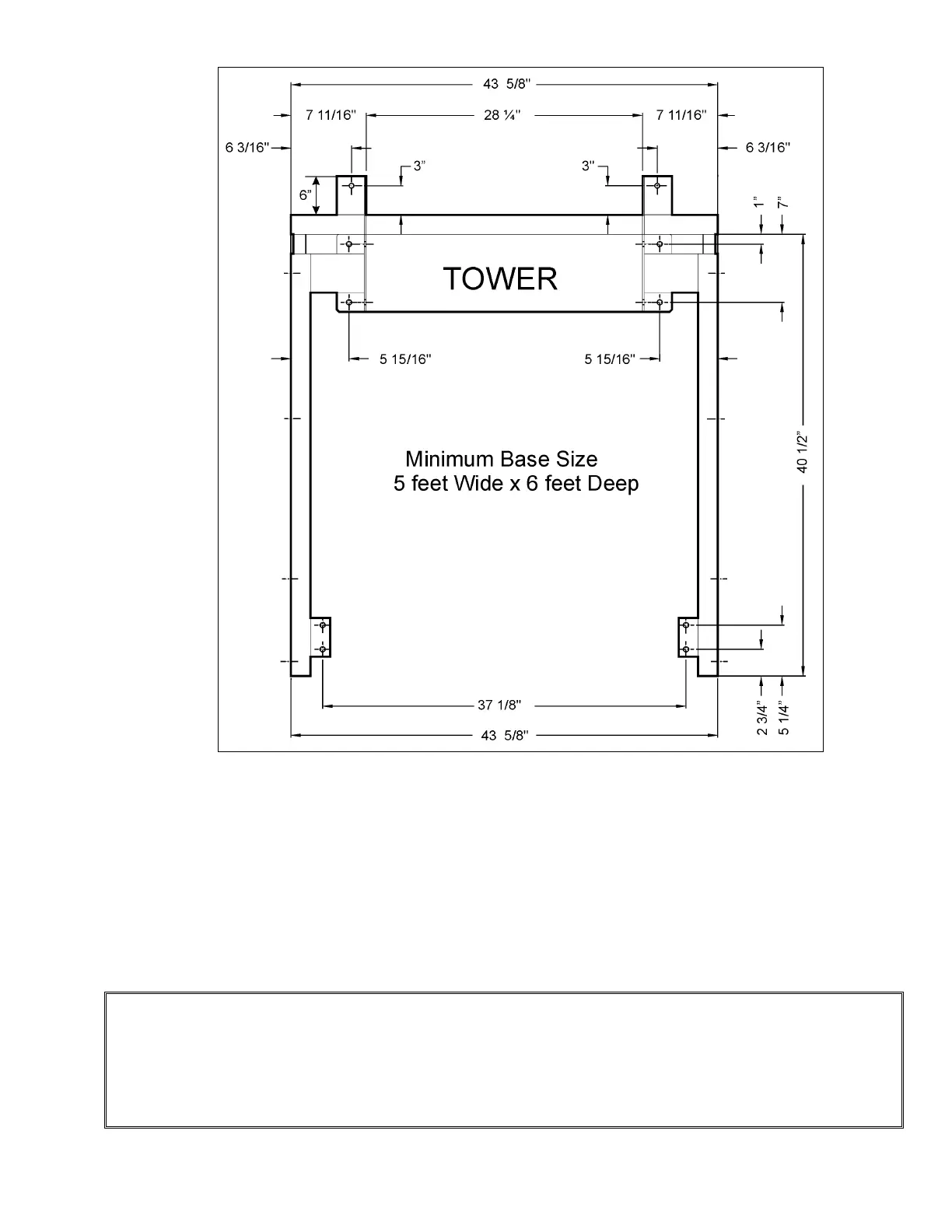

Figure # 3 Standard Footprint Drawing - Free Standing
