CONCORD HANDILIFT - Controller Subassembly

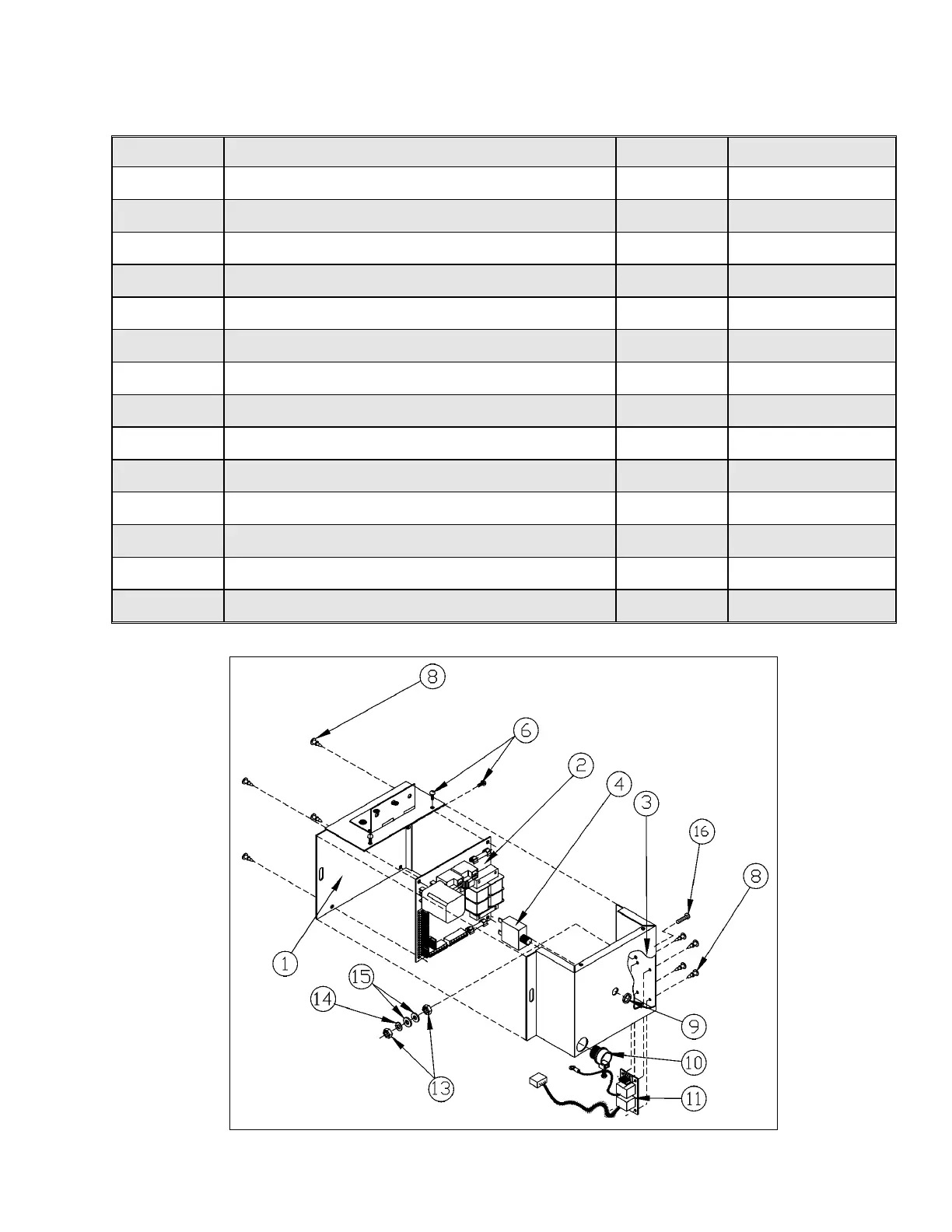

CONTROLLER SUBASSEMBLY
Concord Handilift Vertical Wheelchair Platform Lift
REF. DESCRIPTION QTY. PART NUMBER
1 Controller Plate Hinge W/A 1 248176
2 Handilift 1.12 P.C.B. - Assy. 1 776000
3 Controller Cover Panel 1 248042
4 Overload Circuit Breaker 15 Amp 1 647000
6 MSPH #8-30 x 0.50" PLPS ZNC 3 101140
76
8 Standoff RLCBSRE-4-01 Plastic 8 625009
9 15/32"-32 N.S. Locknut supplied with item 4 1 n/a
10 3/8" Flex Connector - Straight 1 100600
11 Direction Interlock PCB 1 776002
12 Harness 1 776007
13 Hex Nut #10-32 2 101116
14 Lock Washer # 10 1 101223
15 Flat Washer # 10 2 101210
16 Pem Stud FH-32-122I 1 100680
Controller Subassembl
y
