andilift EN (Enclosed) INSTALLATION
SSEMBLY
NOTE
H
A
For "PRE-DELIVERY" instructions, please refer to the "Handilift SE (Semi-Enclosed)
INSTALLATION" section of this manual.
1) Refer to the "General Arrangement" enclosure drawings at the end of this section.
To assist in identifying enclosure panels, refer to Figure # 22. The four sides of the Handilift
enclosure have been shown as A, B, C and D, regardless of the hand of the unit. (Specific
drawings detailing this particular installation m
NOTE
ay have been forwarded with the enclosure
shipment).
An enclosure pit frame is used where enclosure and unit are mounted in a pit. Please refer to
Figure # 24, BEFORE ENCLOSURE WALL ASSEMBLY!
NOTE
Once the enclosure panels up to the transom level have been installed, install the transom.
Larger transom panels will not stand without the support of the surrounding panels (A5 in
Figure # 24). Each panel fits only as shown on the specific arrangement drawn and they may
not be interchanged!

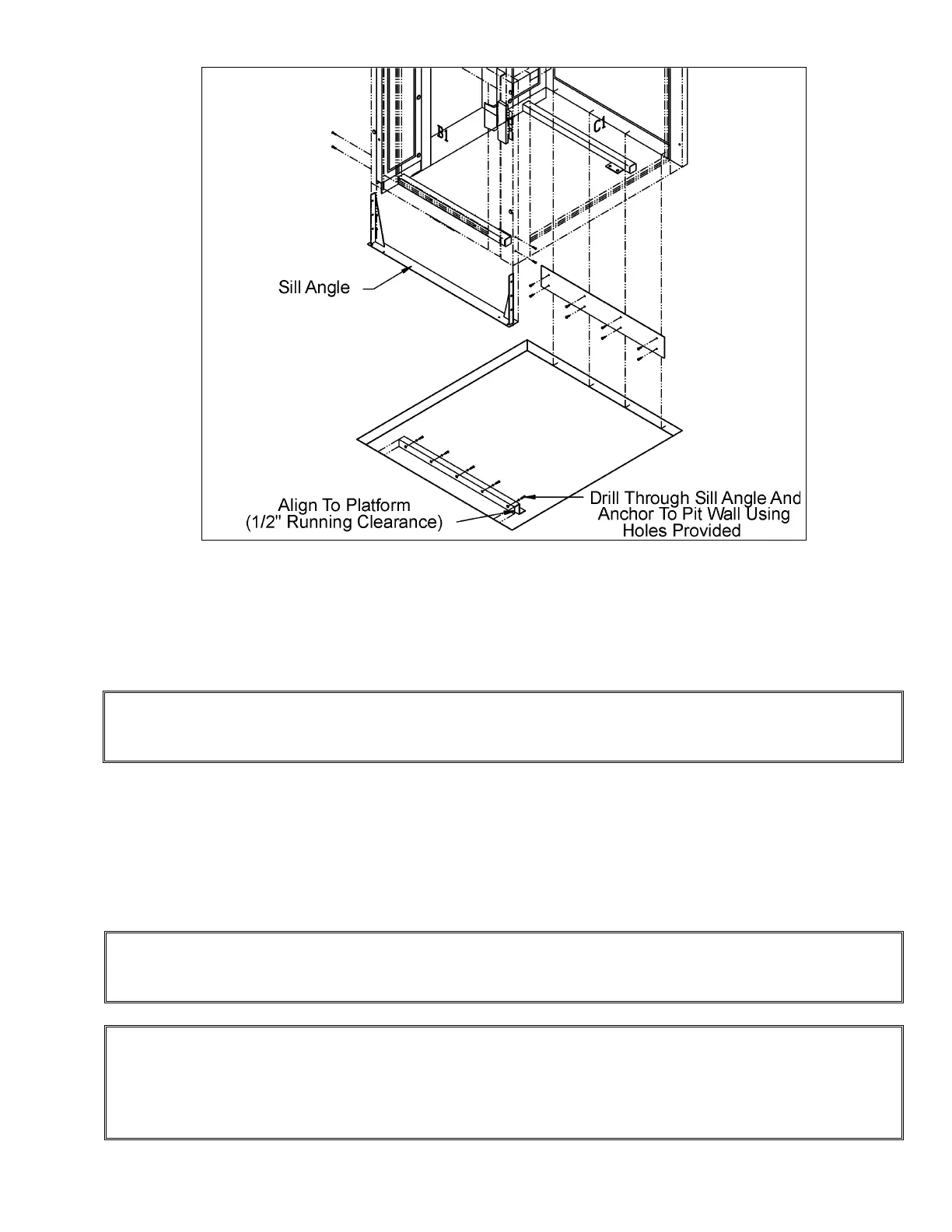

Figure # 23 Semi-Enclosure Assembly Drawing - Semi-Pitted Application
To Next Page
