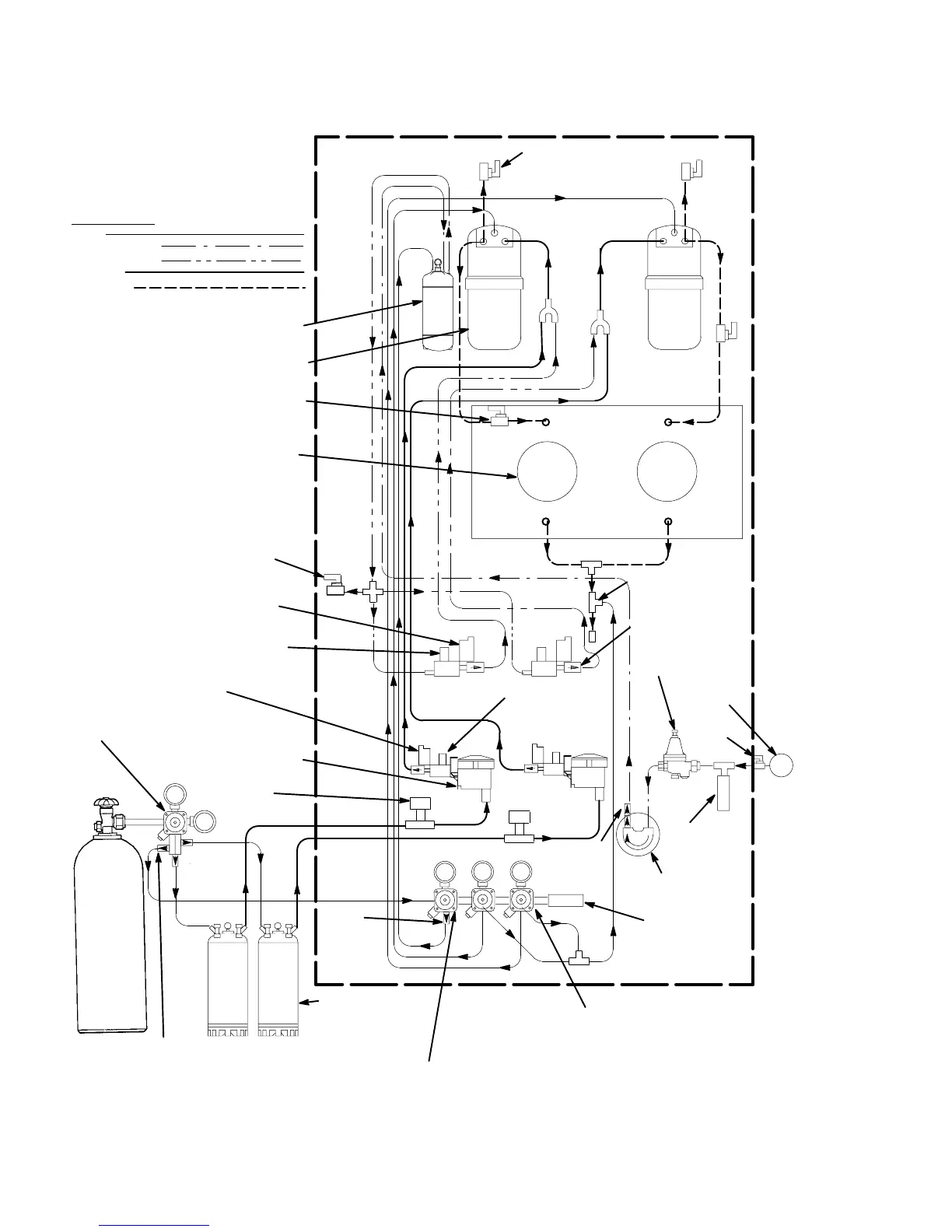

Cornelius FCB POST-MIX DISPENSER - Figure 2. Flow Diagram (Two-Flavor Fcb Dispenser)

62813
*WATER PRESSURE REGULATOR IS
FACTORY ADJUSTED TO 45 PSI AND
SHOULD NOT BE READJUSTED.
**SYRUP SOLD–OUT SWITCHES ARE
FACTORY ADJUSTED AND SHOULD
NOT BE READJUSTED.
PRODUCT BLENDER
TANK(2)
PRODUCT SAMPLE
VALVE(2)
SYRUP FLOW
REGULATOR(2)
CARBONATOR
TANK
PRODUCT SHUTOFF
VALVE(2)
CARBONATED WATER
VOLUME SAMPLE VALVE
CARBONATED WATER
SOLENOID VALVE(2)
SYRUP SOLENOID
VALVE(2)
PRIMARY CO
2
REGULATOR ASS’Y
CO
2
CYLINDER
CO
2
CHECK
VALVE(3)
SOFT DRINK
TANK(2)
FREEZE
CYLINDER(2)
CARBONATED WATER
FLOW REGULATOR(2)
FREEZE CYLINDER
OVERFLOW TUBE
LIQUID CHECK
VALVE(2)
DOUBLE
LIQUID
CHECK
VALVE
SYRUP SOLD–OUT
FLOAT SWITCH(2)
*WATER PRESSURE
REGULATOR
SHUTOFF
VALVE
PLAIN WATER
SOURCE
WATER
PRESSURE
SWITCH
CARBONATOR
WATER PUMP
CO
2
PRESSURE
SWITCH
SECONDARY CO
2
REGULATOR
TO CARBONATOR TANK
(100–PSI GAGE)
SECONDARY CO
2
REGULATORS
TO PRODUCT BLENDER
TANKS (60–PSI GAGE) (2)
**SYRUP SOLD–OUT
SWITCH
CO
2
CHECK
VALVE
LINE LEGEND
CO
2
PLAIN WATER
CARB WATER
SYRUP
PRODUCT
FIGURE 2. FLOW DIAGRAM (TWO-FLAVOR FCB DISPENSER)
