Cornelius FCB POST-MIX DISPENSER - Figure 25. Carbonator Tank and Linkage Assembly

2813 84
1
2
3
4
5
6
7
7
8
9
10
11
12

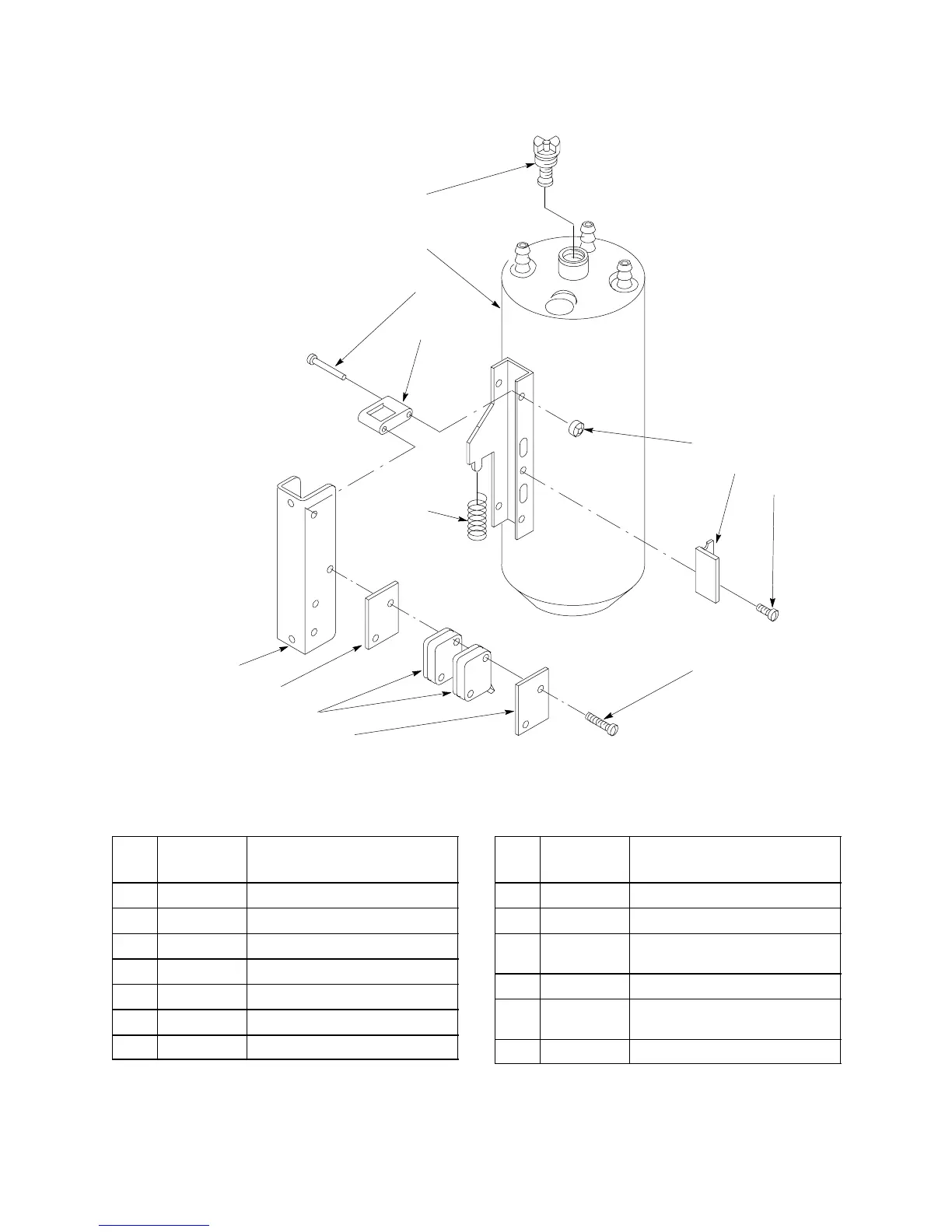

FIGURE 25. CARBONATOR TANK AND LINKAGE ASSEMBLY
Item
No. Part No. Name
326136 Carbonator Tank and Linkage Ass’y
1 326135 Tank, Carbonator
2 317746 Link, Pivot
3 317772 Pin
4 318036 Push-on Nut
5 317747 Pivot Housing
6 317752 Spring
Item
No. Part No. Name
7 318037 Insulation, Switch
8 317771 Level Control Switch
9 315961 Machine Screw, Sl. Rd. Hd., No.
4-40 By 1-1/8-In. Long
10 318123 Switch, Actuator
11 342663 Thread Cutting Screw, Phil Pan Hd.,
Sems, No. 8-32 By 3/8-In. Long
12 318362 Relief Valve
