Cornelius FCB POST-MIX DISPENSER - Figure 27. Double Check Valve Assembly

2813 86
1
1
2
3
4
5
6
7

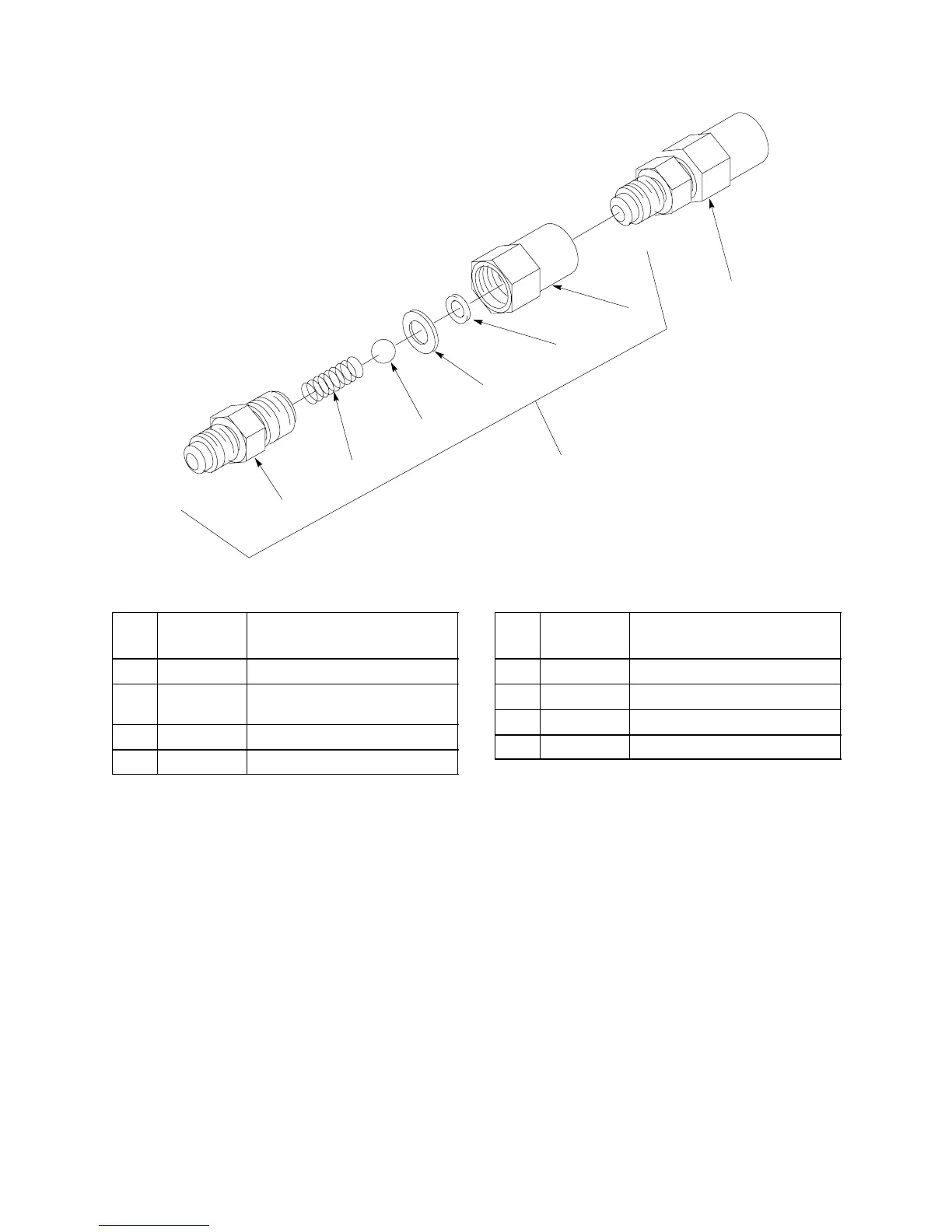

FIGURE 27. DOUBLE CHECK VALVE ASSEMBLY
Item
No. Part No. Name
311765-001 Double Check Valve Ass’y
1 311764-001 Single Check Valve Ass’y
(Includes 2-7)
2 317965 Retainer
3 312196 Spring
Item
No. Part No. Name
4 312419 Ball
5 312415 Washer, .300 I.D.
6 312418 Quad Ring, .329 I.D.
7 317963 Receptacle
