Cornelius FCB POST-MIX DISPENSER - Figure 23. Dispensing Valve Assembly

2813 82
1
2
7
3
4
5
6
8
9
10
11
12
13

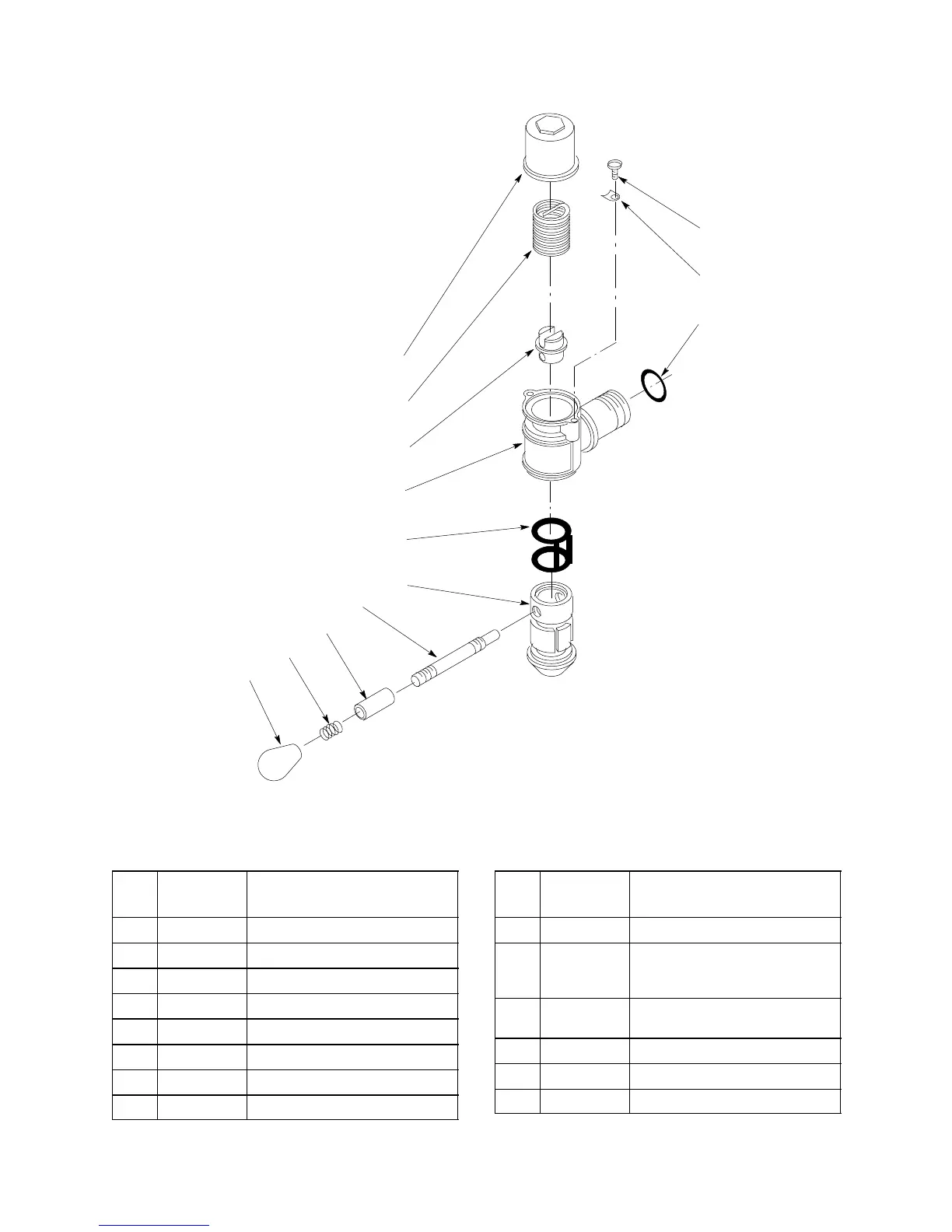

FIGURE 23. DISPENSING VALVE ASSEMBLY
Item
No. Part No. Name
1557 Dispensing Valve Ass’y
1 1556 Body and Shank
2 1554 Valve
3 1576 Housing
4 1575 Fitting
5 325305 Spring
6 321651 Lever, Valve
7 1555 Knob
Item
No. Part No. Name
8 325647 Plate
9 317784 Thread Cutting Screw, Phil Truss
Hd., Stainless Steel, No. 8-32 By
3/8-In. long
10 2818 O-Ring, Caged, .562 I.D. By
.210 C.S.
11 321653 O-Ring, .862 I.D. By .103 C.S.
12 1544 Spring
13 1543 Shaft Release
