CONTROL PANEL
HIDDEN “SECURITY SWITCH”
TOP PANEL
TOP PANEL RETAINING
SCREW (2)
MASTER
CIRCUIT
BOARD
CONTROL PANEL
FACEPLATE RELIEF
VALVE (4)
LOWER FRONT
ACCESS PANEL
CUP REST
DRIP TRAY
SIDE PANEL (2)
FAULT MESSAGE DISPLAY
DISPENSING VALVE (4)
FACEPLATE (4)
BACK PANEL
RELAY CIRCUIT
BOARD NO. 2
UPPER CONTROL BOX
RELAY CIRCUIT
BOARD NO. 1
SIDE PANEL
RETAINING SCREW
VENTILATION LOUVERS
NOTE: Two-flavor Unit- The No. 1 freeze cylinder
is the left–hand cylinder facing the front of the
Unit. No. 2 freeze cylinder is to the right of No. 1
freeze cylinder.
Four-flavor Unit- The No. 1 freeze cylinder is the
left-hand cylinder facing the front of the Unit.
The other three freeze cylinders, to the right of
No. 1 freeze cylinder, are labeled 2, 11, and 22.

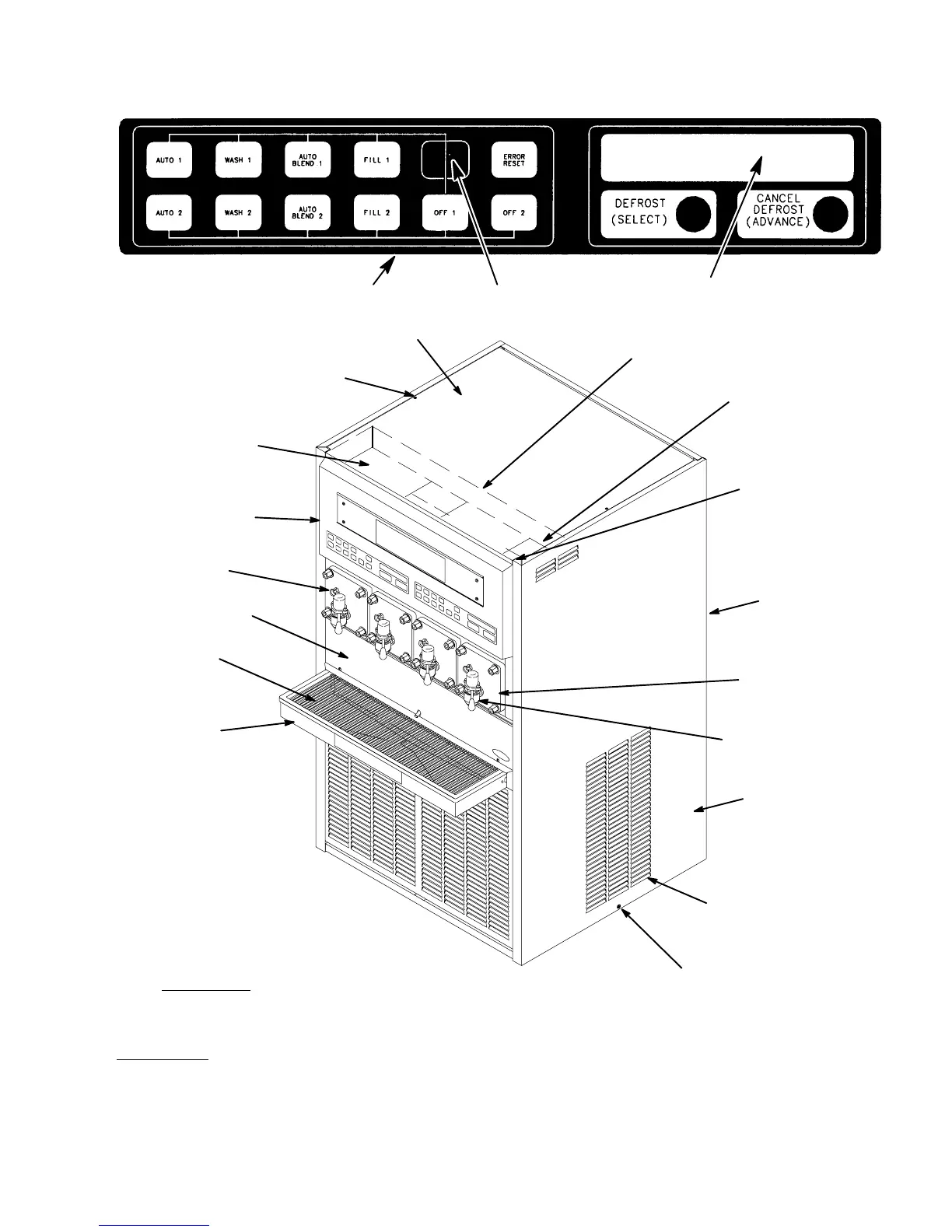

FIGURE 6. OPERATING CONTROLS (FOUR-FLAVOR UNIT)
