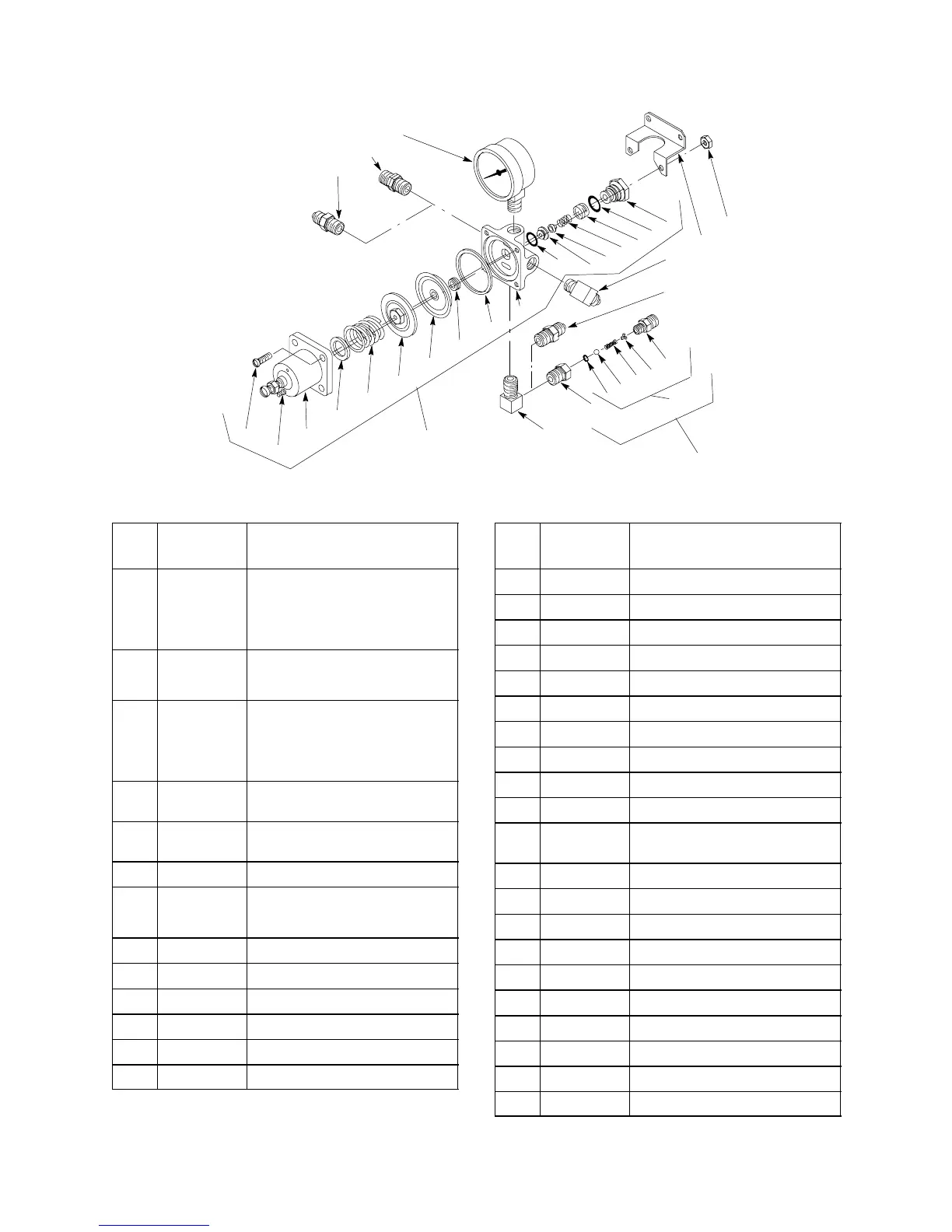

FIGURE 24. CO
2
REGULATOR ASSEMBLY
Item
No. Part No. Name
326097 CO
2
Regulator Ass’y and Bracket,
Secondary (2-Flavor)
326099 CO
2
Regulator Ass’y and Bracket,
Secondary (4-Flavor)
1 183287 Gage, 60 PSI
183286 Gage, 100 PSI
2 183449 CO
2
Regulator Ass’y, 60 PSI,
Orange (Includes 3-18)
183412 CO
2
Regulator Ass’y, 100 PSI, Gold
(Includes 3-18)
3 183040 Machine Screw, Phil Fill Hd., No.
10-32 By 7/8-In. Long
4 183233-059 Cover Kit (Includes Nonremovable
Adjusting Screw)
5 183021 Retainer, Spring
6 315424 Adjusting Spring, 60PSI
183020 Adjusting Spring, 100 PSI
7 130174 Diaphram Ass’y
8 183011-047 Baffle
9 130167 Guide
10 183010 Gasket
11 183009-007 Retainer, Seat
12 183008 O-Ring, .489 I.D. By .070 C.S.
Item
No. Part No. Name
13 183007 Filter Screen
14 183006 Spring, Poppet
15 130170 Valve, Poppet
16 130168 Reducing Valve Seat
17 183003 Gasket, Seat
18 183001-015 Body
19 183047 Fitting, 1/4-NPT
20 183061 Fitting, 1/4-NPT By 7/16-20
21 187485 Fitting, Elbow, 1/4-NPT By 7/16-20
22 183068 Fitting, Elbow, 1/4-NPT
23 183301-001 Check Valve Ass’y with Adapter
(Includes 24-30)
24 183300-001 Adapter
25 183320-100 Check Valve Ass’y (Includes 26-30)
26 183294 Quad Ring, .145 I.D. By .070 C.S.
27 183296 Ball
28 183297 Spring
29 183298 Retainer
30 183295-100 Body
31 183317 Bracket, Regulator
32 321811 Hex Nut, Keps, 1/4-20
33 324211 Fitting, 1/16-NPT By 5/32-Barb
To Next Page
