Cornelius FCB POST-MIX DISPENSER - Figure 3. Flow Diagram (Four-Flavor Fcb Dispenser)

7 2813
*WATER PRESSURE REGULATORS
ARE FACTORY ADJUSTED TO 45-PSI
AND SHOULD NOT BE READJUSTED.
**SYRUP SOLD-OUT SWITCHES
ARE FACTORY ADJUSTED AND
SHOULD NOT BE READJUSTED.
PRODUCT SAMPLE
VALVE (4))
PRODUCT BLENDER
TANK (4)
PRODUCT
SHUTOFF
VALVE (4)
SYRUP FLOW
REGULATOR (4)
FREEZE
CYLINDER (4)
SECONDARY CO
2
REGULATORS
TO CARBONATOR TANKS
(100-PSI GAGES)
SECONDARY CO
2
REGULATORS
TO PRODUCT BLENDER
TANKS (60-PSI GAGES)
CO
2
PRESSURE
SWITCH
CO
2
GAS
CHECK VALVE (2)
FREEZE CYLINDERS
OVERFLOW TUBE
DOUBLE LIQUID
CHECK VALVE (2)
CARBONATOR
WATER PUMP (2)
*WATER PRESSURE
REGULATOR (2)
CARBONATED
WATER
SAMPLE VALVE (2)
CARBONATOR
TANK (2)
WATER PRESSURE
SWITCH
(2)
CARBONATED WATER
FLOW REGULATOR (4)
CARBONATED WATER
SOLENOID (4)
SYRUP FLOAT
SWITCH (4)
SYRUP
SOLENOID (4)
LIQUID CHECK
VALVE (4)
LIQUID CHECK
VALVE (4)
**SYRUP SOLD-OUT
SWITCH (4)
CO
2
GAS
CHECK VALVE (5)
CO
2
CYLINDER
PRIMARY
CO
2
REGULATOR
PLAIN WATER
SOURCE
SHUTOFF VALVE
LINE LEGEND
CO
2
PLAIN WATER
CARB WATER
SYRUP
PRODUCT
SYRUP TANK (4)
121122
1
2
11
22
CARBONATED WATER
VOLUME SAMPLE VALVE

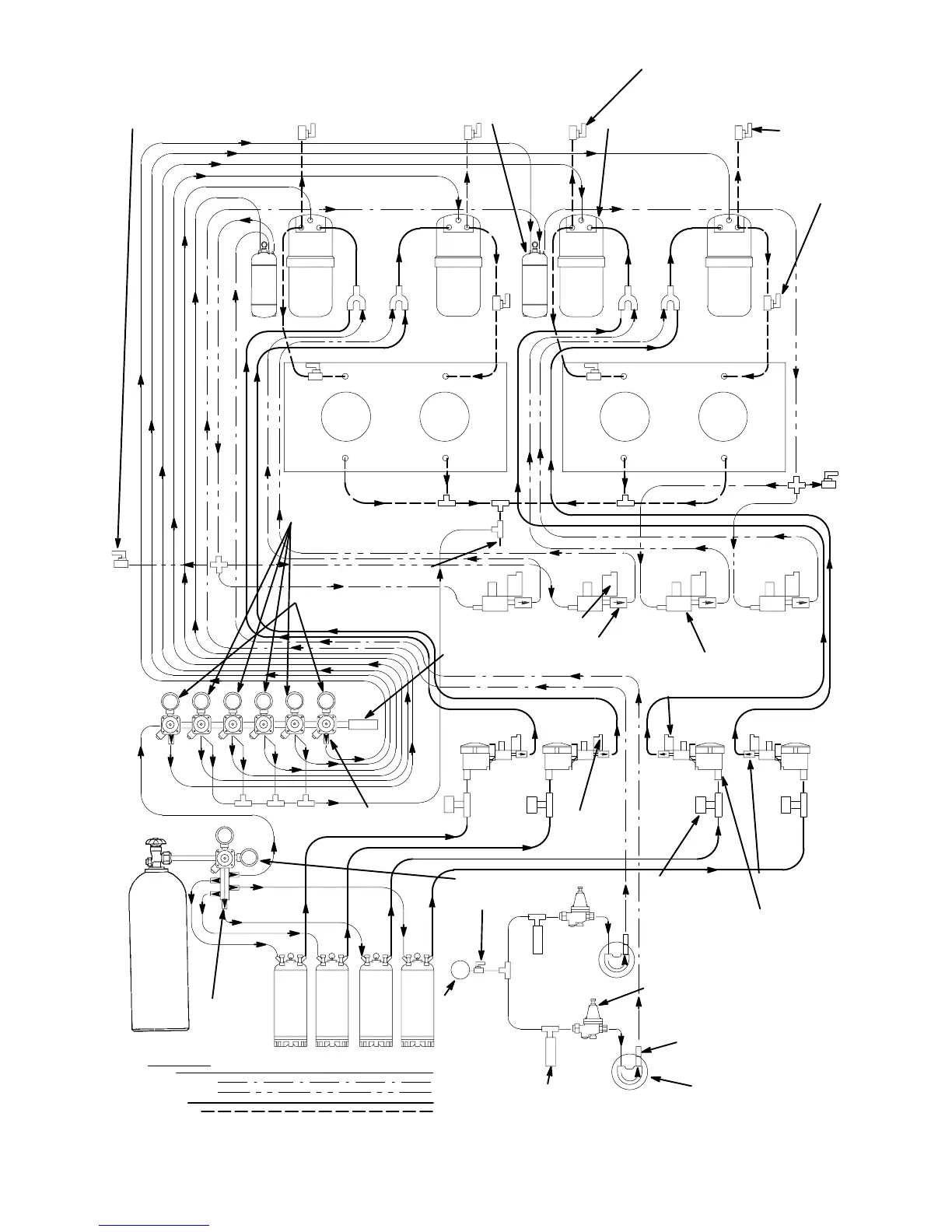

FIGURE 3. FLOW DIAGRAM (FOUR-FLAVOR FCB DISPENSER)
