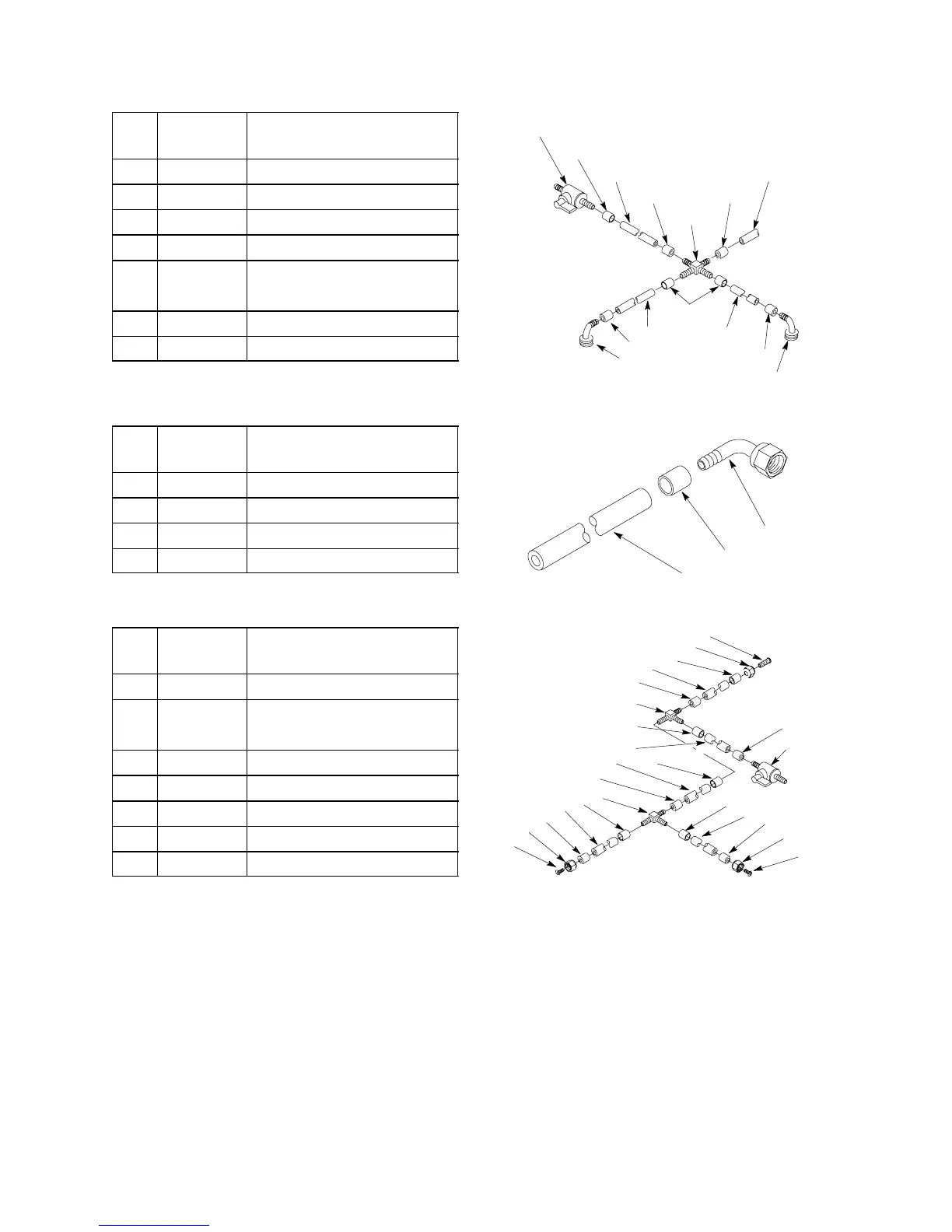

Cornelius FCB POST-MIX DISPENSER - Figure 32. Tubing Assembly (Carb Water); Figure 33. Tubing Assembly (Water Pump to Motor); Figure 34. Tubing Assembly (Water Inlet)

281389
Item
No. Part No. Name
2492 Tube Ass’y, Carb Water Outlet
1 770602 Fitting, Cross, Barb
2 770501 Fitting, Elbow, Valve
3 325012 Shut-Off Valve
4 174103 Tube, .250 I.D. By 52-In. Long
174103 Tube, .250 I.D. By 3-7/8-In. Long
5 176001 Ferrule, .425 O.D. Tube
6 174103-001 Tube, .250 I.D. By 36-In. Long
1
2
2
3
4
4
4
5
5
5
5
5
5
6
FIGURE 32. TUBING ASSEMBLY (CARB WATER)
Item
No. Part No. Name
2495 Tube Ass’y, Water Pump to Motor
1 174103-001 Tube, .250 I.D. By 21-In. Long
2 176001 Ferrule, .425 O.D. Tube
3 770401 Fitting, Elbow, Swivel, 7/16-20
1
2
3
FIGURE 33. TUBING ASSEMBLY (WATER PUMP TO MOTOR)
Item
No. Part No. Name
2593 Tube Ass’y, Water Inlet
1 174292 Tube, .375 I.D. By 96-In. Long
174292 Tube, .375 I.D. By 9-In. Long
2 311242 Nut, Swivel, 5/8-18
3 176205 Nipple, .375 I.D. Tube
4 176204 Ferrule, .640 O.D. Tube
5 770609 Fitting, Tee, Barb
6 111557 Shut-Off Valve
1
1
1
1
2
2
2
3
3
3
4
4
44
4
4
4
4
4
4
5
5
61
FIGURE 34. TUBING ASSEMBLY (WATER INLET)
