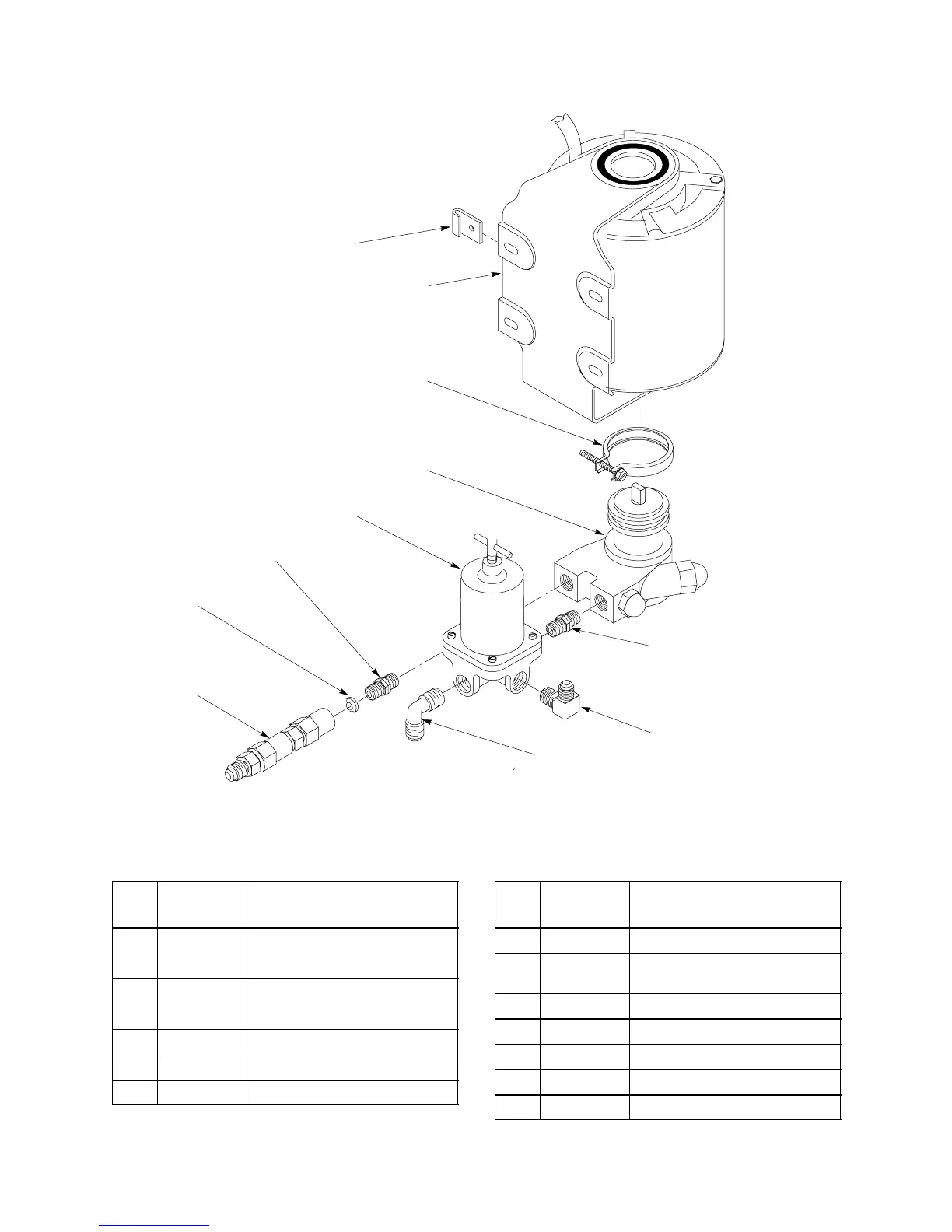

Cornelius FCB POST-MIX DISPENSER - Figure 26. Pump and Motor Assy

281385
1
2
3
4
5
6
7
8
9
10
11
FIGURE 26. PUMP AND MOTOR ASS’Y
Item
No. Part No. Name
2494 Pump and Motor Ass’y, 115V. 60HZ
2493 Pump and Motor Ass’y, 230V. 50HZ
1 320626 Motor, 115V. 60HZ
199020 Motor, 230V. 50HZ
2 312996 Pump, Water, 90GPH
3 178025-100 Tapered Gasket, White
4 187483 Clamp, Pump to Motor
Item
No. Part No. Name
5 311437 Fitting, 3/8-NPT By 7/16-20
6 311765-001 Double Check Valve Ass’y
(See Figure 27)
7 311855 J-Nut, 1/4-20
8 183047 Fitting, Elbow, 1/4-NPT By 7/16-20
9 311738 Fitting, Elbow, 1/4-NPT By 1/2-16
10 187484 Fitting, 1/4-NPT By 3/8-NPT
11 0784 Regulator, Water Pressure
