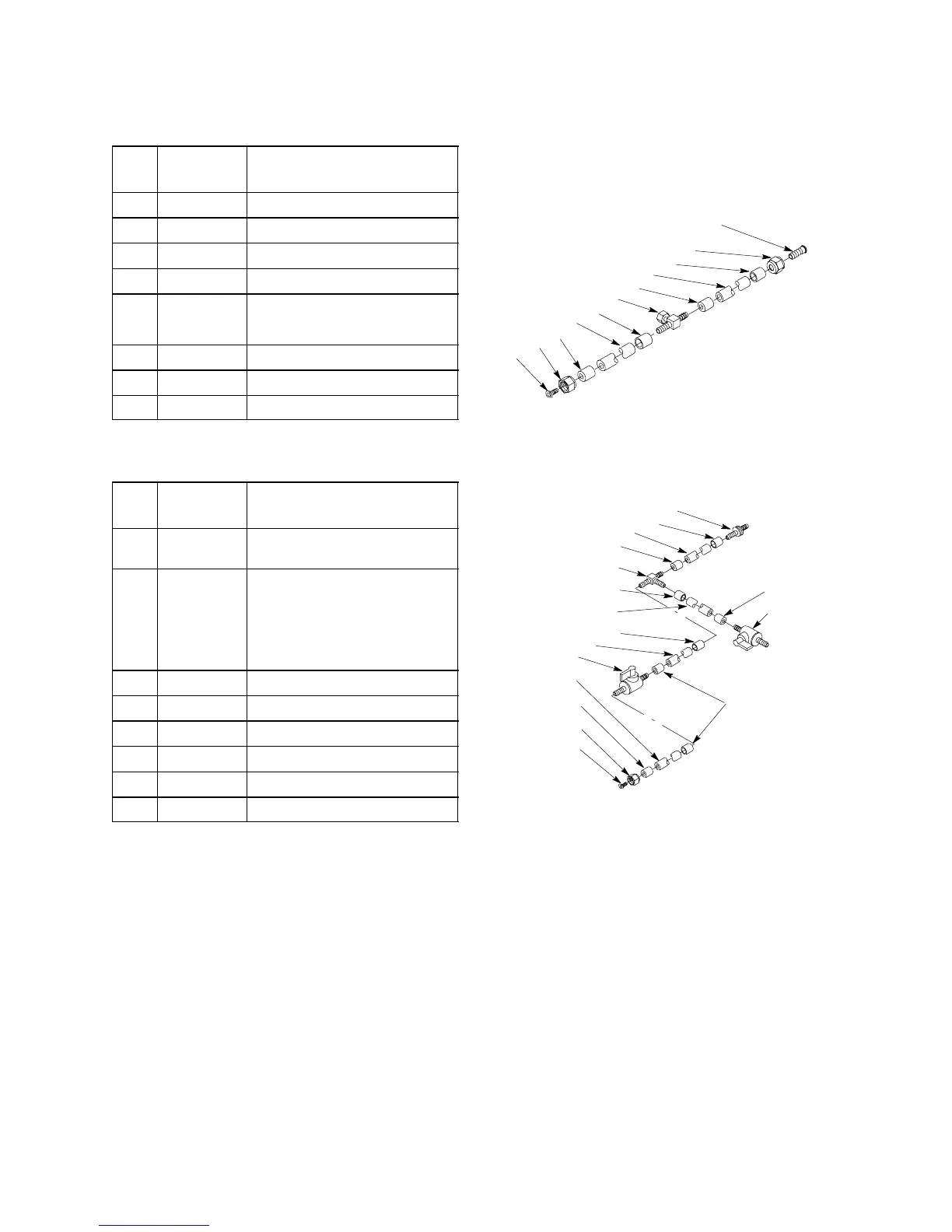

Cornelius FCB POST-MIX DISPENSER - Figure 35. Tubing Assembly (Syrup); Figure 36. Tubing Assembly (Blender to Freeze Cylinder)

2813 90
Item
No. Part No. Name
326113 Tube Ass’y, Syrup
1 176017 Nut, Swivel, 7/16-20
2 770104 Nipple, .265 I.D. Tube
3 176000 Ferrule, .500 O.D. Tube
4 174478 Tube, .265 I.D. By 92-In. Long
174478 Tube, .265 I.D. By 3-In. Long
5 770698 Fitting, Tee, Barb
6 176271 Nipple, .265 I.D. Tube
7 311242 Nut, Swivel, 5/8-18
NO TAG
1
2
3
3
3
3
4
4
5
6
7
FIGURE 35. TUBING ASSEMBLY (SYRUP)
Item
No. Part No. Name
1578 Tube Ass’y, Blender to Freeze
Cylinder
1 174103 Tube, .250 I.D. By 1-3/4-In. Long
174103 Tube, .250 I.D. By 2-1/2-In. Long
174103 Tube, .250 I.D. By 18-1/2-In. Long
174103 Tube, .250 I.D. By 54-In. Long
2 176001 Ferrule, .375 O.D. Tube
3 176016 Nut, Swivel, 1/2-16
4 770204 Nipple, .250 I.D. Tube
5 1561 Connector, Barb
6 325012 Shut-Off Valve
7 770601 Fitting, Tee, Barb
1
1
1
1
2
2
22
2
2
2
3
4
5
6
6
7
FIGURE 36. TUBING ASSEMBLY (BLENDER TO FREEZE CYLINDER)
