Cornelius FCB POST-MIX DISPENSER - Page 99

281391
Item
No. Part No. Name
2491 Tube Ass’y, Water Solenoid to
Blender
1 311742 Connector, Barb
2 176001 Ferrule, .375 O.D. Tube
3 174103
Tube, .250 I.D. By 3-3/8-In. Long
174103 Tube, .250 I.D. By 1-3/4-In. Long
4 309854 Clamp, .400 O.D. Tube
5 779005 Turnaround, Barb
6 770104 Nipple, .250 I.D. Tube
7 176017 Nut, Swivel, 7/16-20
1
2
2
2
3
3
4
5
6
7

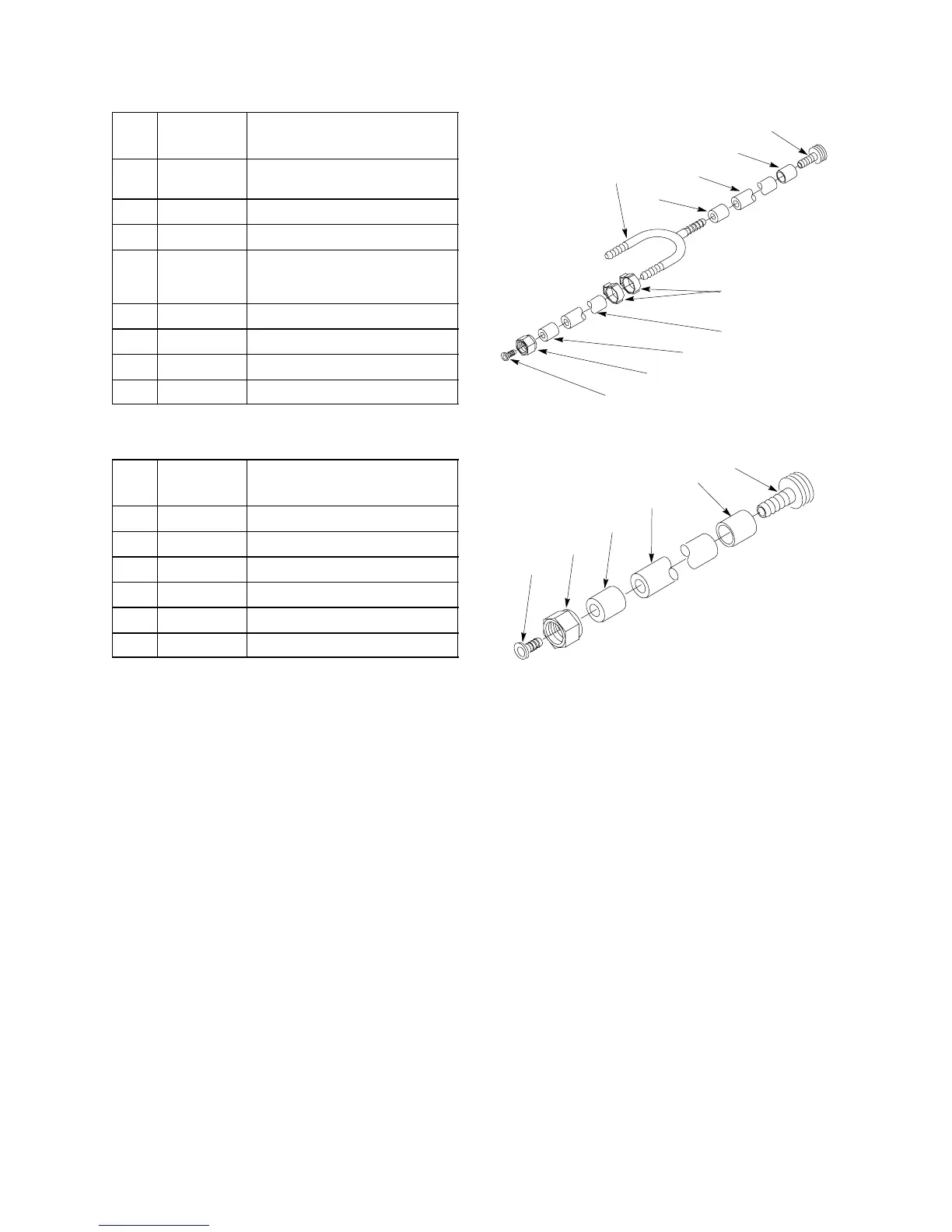

FIGURE 37. TUBING ASSEMBLY (WATER SOLENOID TO BLENDER)
Item
No. Part No. Name
326098 Tube Ass’y, Regulator to Blender
1 174103 Tube, .250 I.D. 48-In. Long
2 176001 Ferrule, .375 O.D. Tube
3 176017 Nut, Swivel, 7/16-20
4 770104 Nipple, .250 I.D. Tube
5 311741 Connector, Barb
1
2
2
3
4
5
FIGURE 38. TUBING ASSEMBLY (REGULATOR TO BLENDER)
