PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 48 - © 2015-2016, Cornelius Inc.
11. Screw (2) #8-32 truss head screws into the upper
frame front, one each side. Do not fully seat screws.

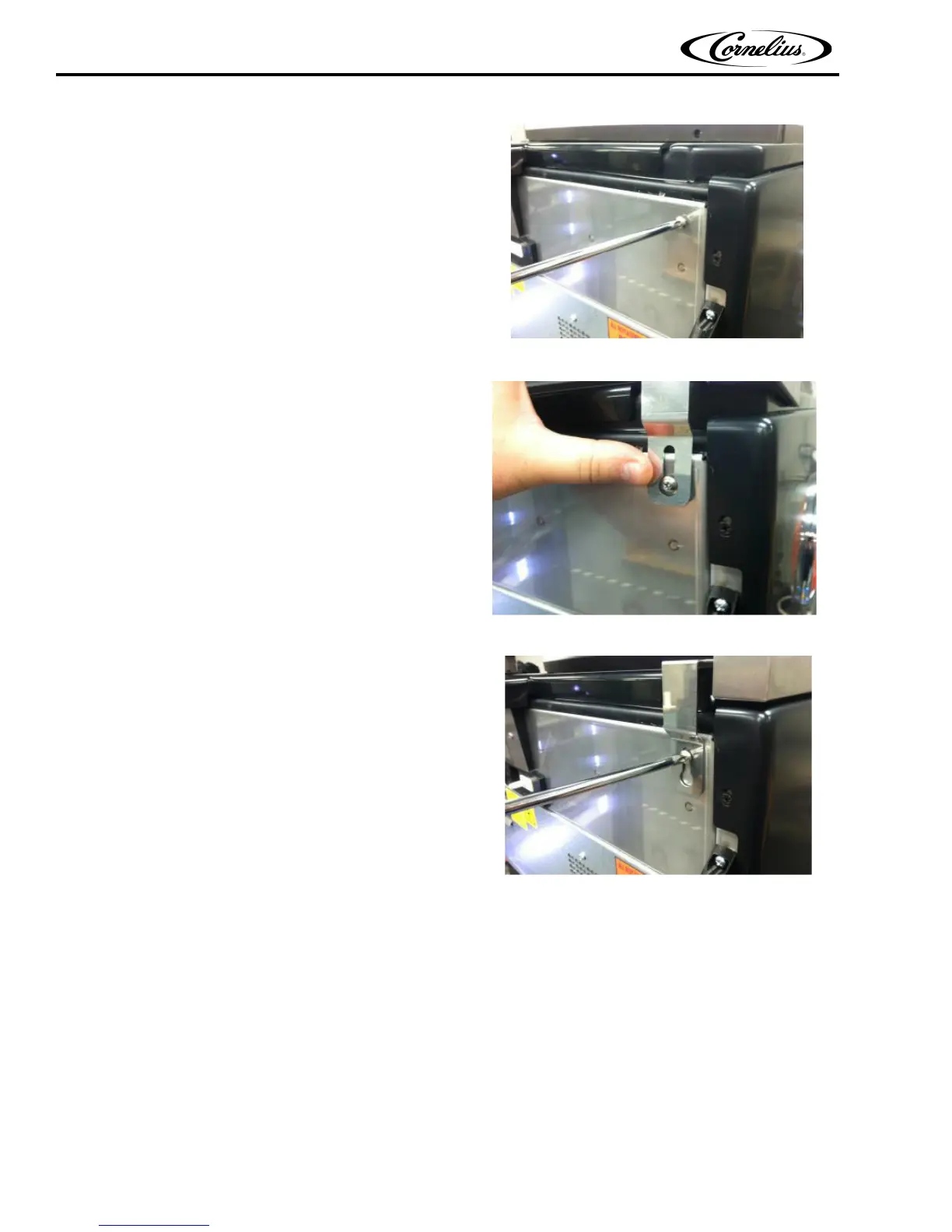

Figure 100.
12. Place Filler panel on top (make rubber bumpers are
installed on the 4 holes on Filler panel) and place
keyslot into the #8-32 screws as shown in Figure
101.
Figure 101.
13. Tighten screws down to secure filler panel.
Figure 102.
14. Close the door and check for fit and function.
