8-8 8-ORDINARY MAINTENANCE
COROB™ TATOCOLOR
6. Shut off the machine and unplug the power supply cable.

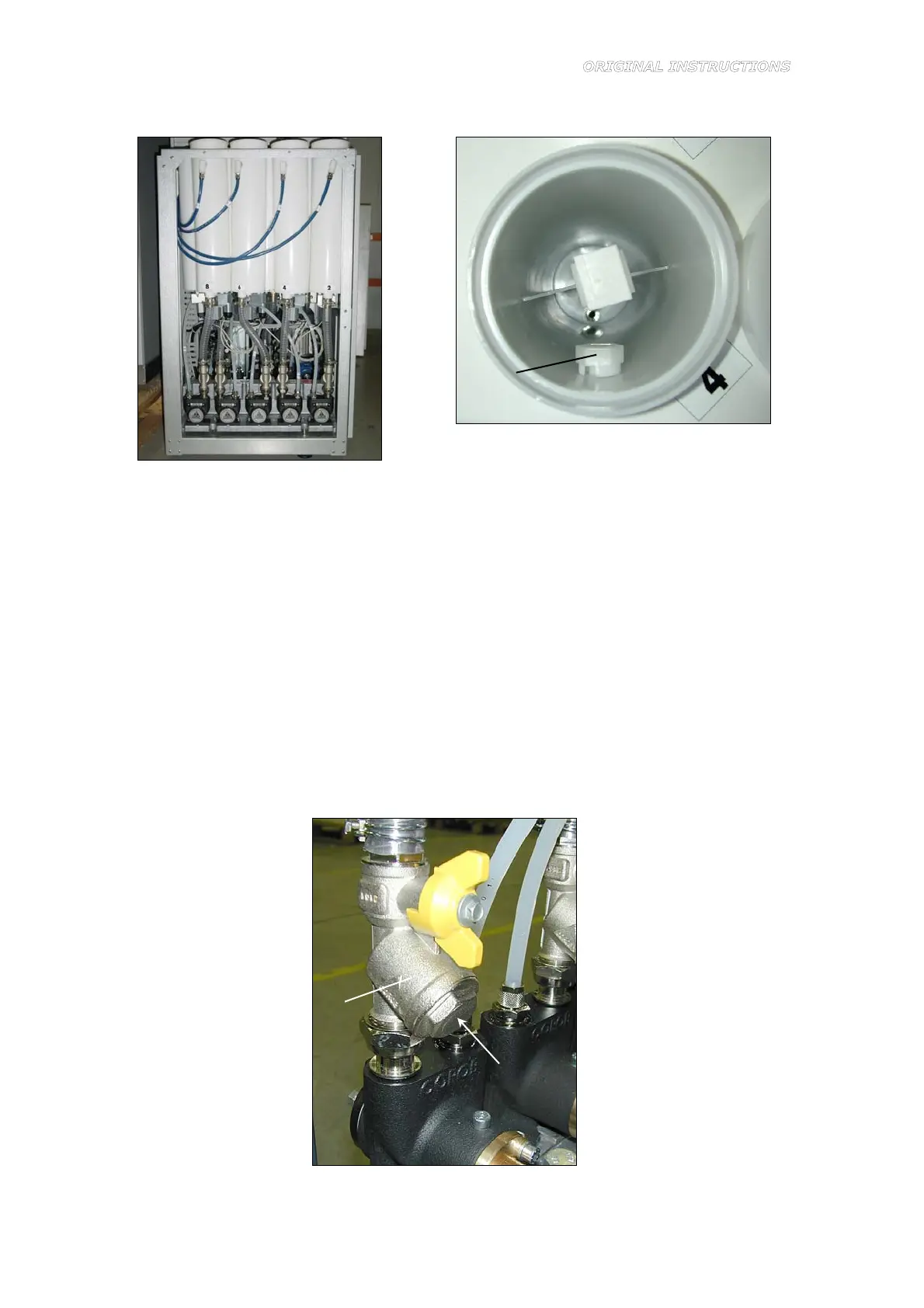

Figure 8-4 Figure 8-5
7. You may now proceed with cleaning every filter on the machine (Figure 8-6).
– Find the filter (1) located above the pump.
– Insert a can large enough to collect the residual colorant left in the filter compartment
under the filter cap (2).
– Use a suitable wrench to unscrew the filter cap and collect the residual colorant in the can
together with the cap and filtering net.
– Insert a clean cloth that leaves no residue of any kind in the filter body; this is essential to
prevent colorant from dripping inside the machine.
– If the circuit contains water-based colorant, clean the filtering net thoroughly with running
water, warm if possible; use solvent if the circuit contains solvent-based colorant. The
filtering net must be replaced if it cannot be cleaned properly.
– Clean the filter cap.
– Insert the filtering net in the filter body and screw the cap back on.
Figure 8-6
1
1
2
