7D-Link DSL-2888A User Manual
Section 1 - Product Overview
2 3 8
64 75 9
1

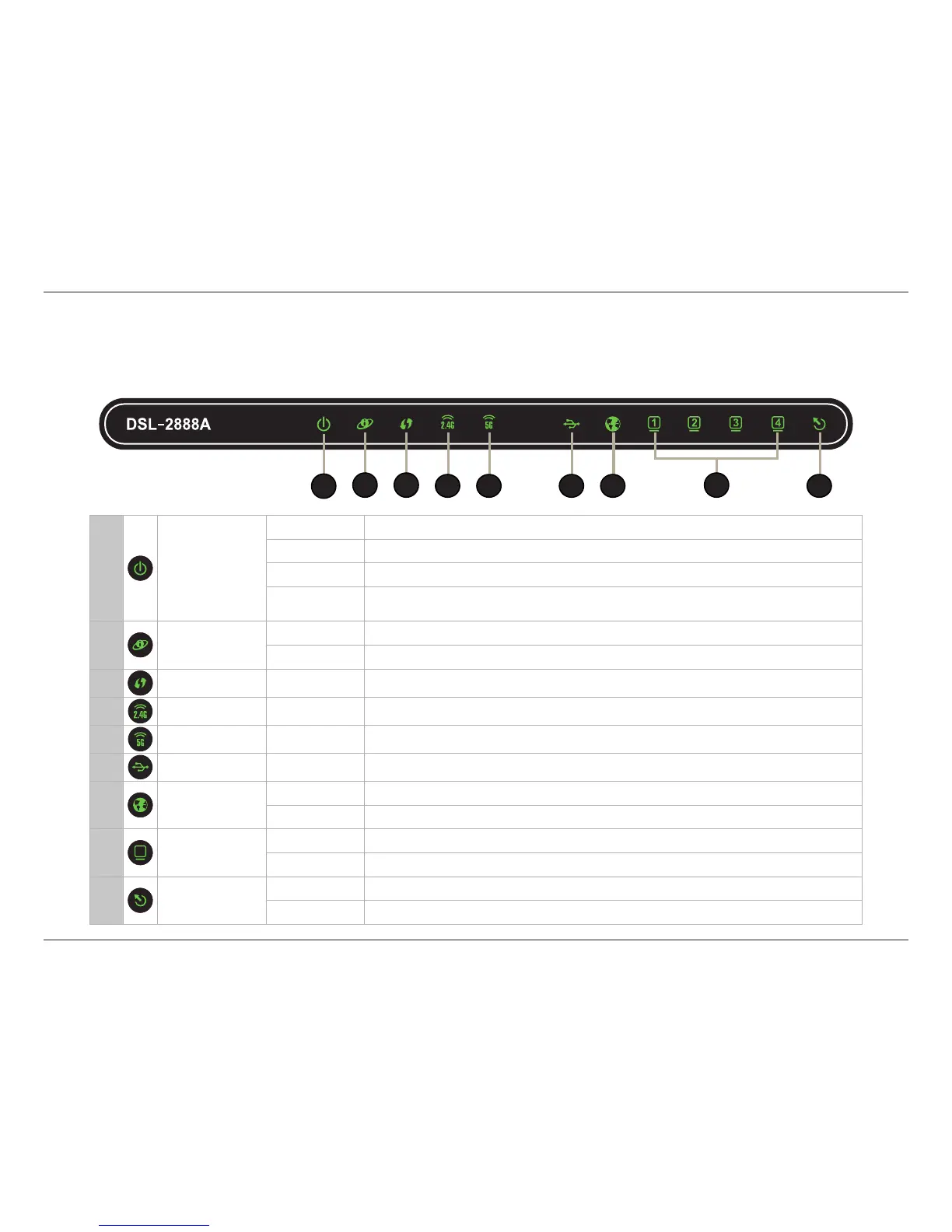

Hardware Overview
LEDs
1 Power
Solid Green A solid green light indicates the device is powered on and working properly.
Solid Red A solid red light indicates that the device is booting or an error has occurred.
Blinking Green A blinking green light indicates that backup mode is active.
Blinking Red
A blinking red light indicates that the device is resetting to the factory defaults or
that the rmware is being updated.
2 Internet
Solid Green A solid green light indicates an Internet connection.
Solid Red A solid red light indicates no Internet connection is available.
3 WPS Solid Green A solid green light indicates the WPS process is active.
4 Wireless 2.4 Solid Green A solid green light indicates that the 2.4 GHz wireless network is enabled.
5 Wireless 5G Solid Green A solid green light indicates that the 5 GHz wireless network is enabled.
6
USB Solid Green A solid green light indicates that a USB device is detected on a USB port.
7 WAN
Solid Green A solid blue light indicates an Ethernet WAN port connection.
Blinking Green A blinking green light indicates Ethernet WAN port activity.
8
LAN Ports 1-4
Solid Green A solid green light indicates a device is connected to the respective LAN port.
Blinking Green A blinking green light indicates LAN port activity.
9 DSL
Solid Green A solid green light indicates a proper connection to a DSL enabled telephone line.
Blinking Green A blinking green light indicates the DSL port is negotiating a connection.
