Section 4 - Conguration
DSL Phy Version:
Displays the DSL Phy version.
Cable Status:
Displays the current cable status.
DSL Status:
Displays the current negotiation state of the DSL port.
Mode:
Displays the current DSL mode.
Link Power State:
Displays the current link power state.
SNR Margin (0.1
dB):
The DSL connection's signal to noise ratio is listed here.
Attenuation (0.1
dB):
The DSL connection's attenuation is listed here.
Output Power (0.1
dBm):
The DSL connection's power output is listed here.
Attainable Rate
(Kbps):
The measured maximum attainable rate is listed here.
Rate (Kbps):
The negotiated connection speed is listed here.
Internet
COPYRIGHT © 2016 D-Link
DSL-2888A HW:V1.0.0 FW:V1.1.43
Settings Features ManagementHome
Internet DSL-2888A
Connected Clients: 1
USB Device
Internet Connected

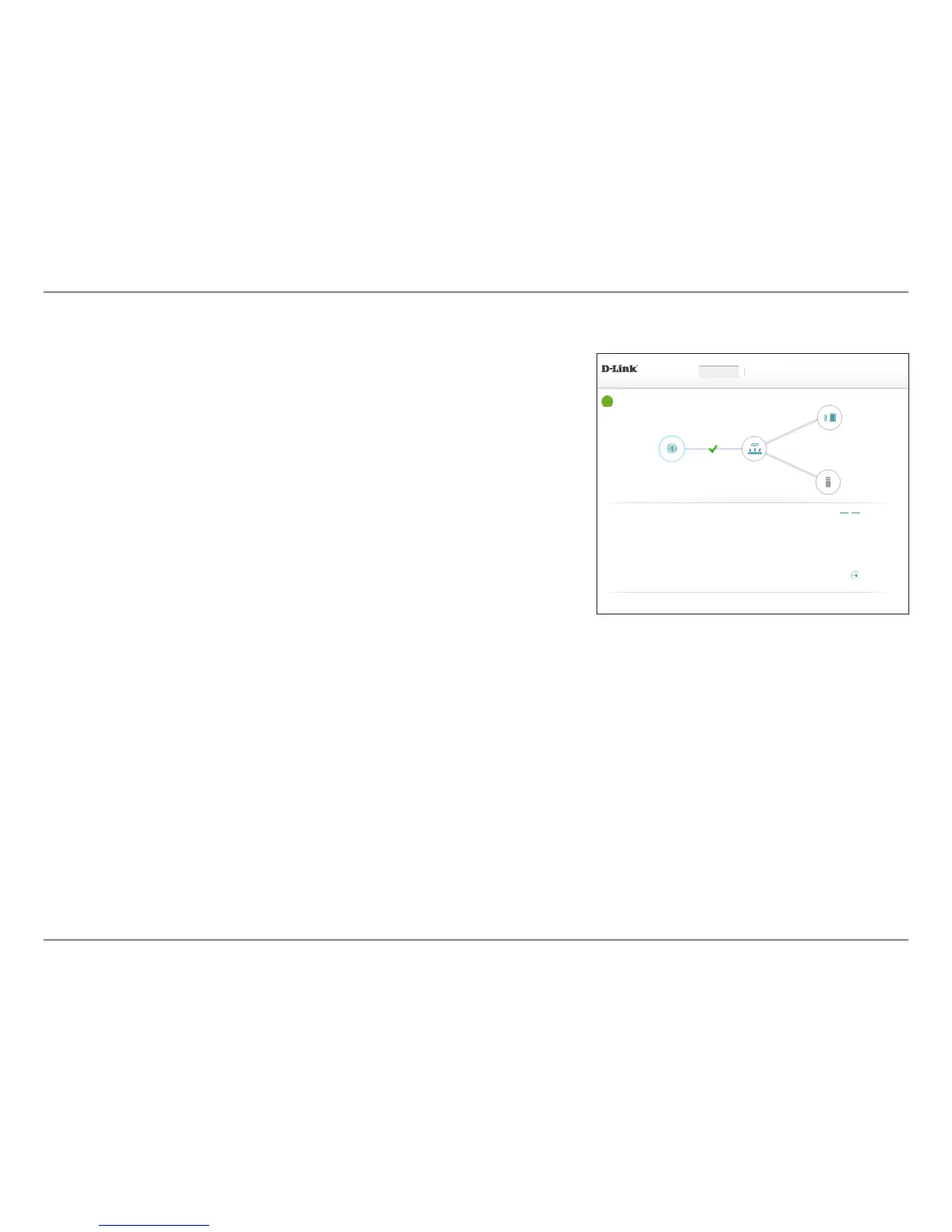

Click on any item in the diagram for more information.
DSL / IPv4 / IPv6
DSL Phy Version: G3_01.37.00
UpLink / DownLink
Cable Status: Connected SNR Margin (0.1 dB): 121 / 175
DSL Status: UP Attenuation (0.1 dB): 0 / 5
Mode: G.993.2_Annex_A Output Power (0.1 dBm): 131 / 135
Attainable Rate (Kbps): 135752 / 226704
Rate (Kbps): 100014 / 127998
Go to settings
DSL
Click the DSL button to see the DSL hardware connection information.
