D-Link DSL-2888A User Manual

85D-Link DSL-2888A User Manual
Appendix B - Networking Basics
Networking Basics

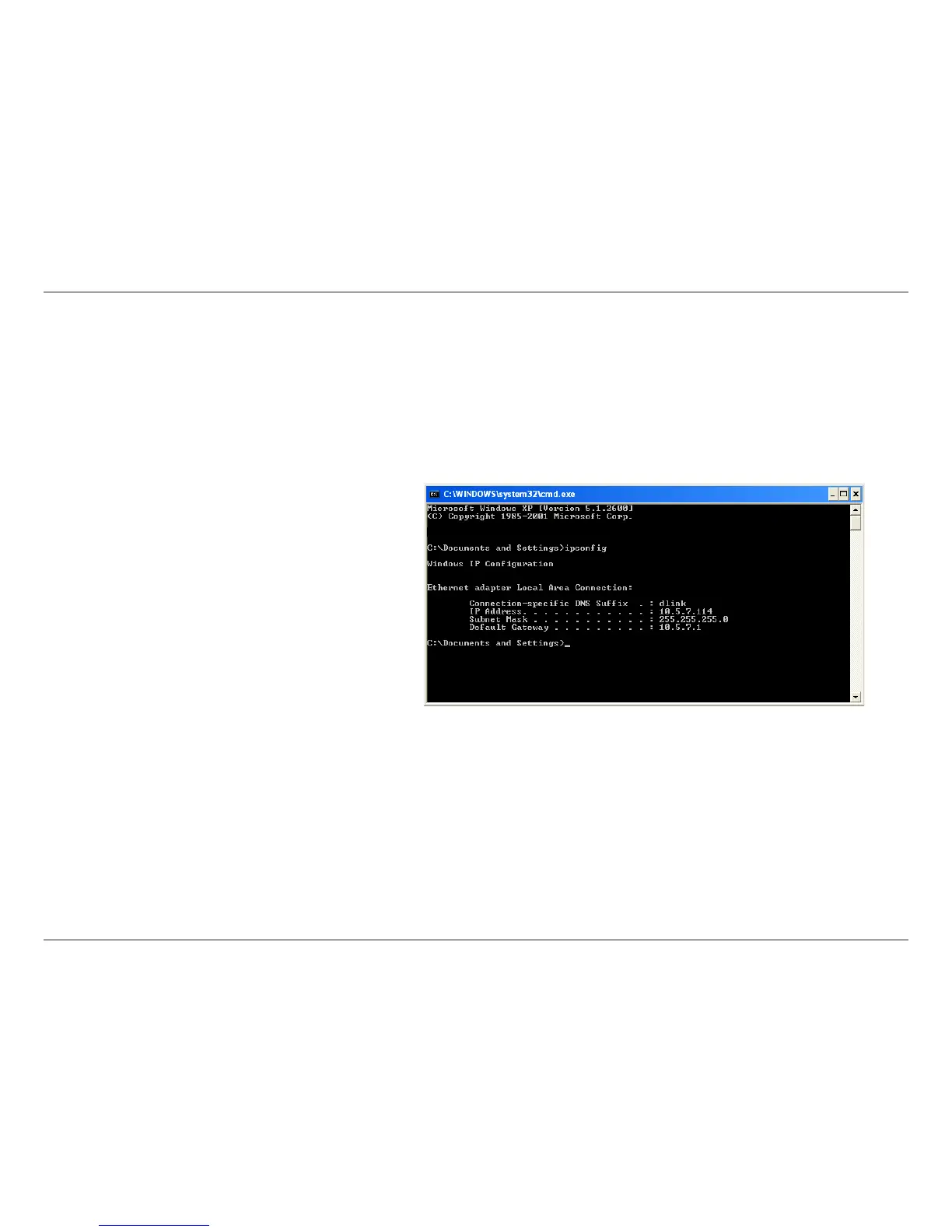

Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some rewall software
programs may block a DHCP request on newly installed
adapters.

D-Link DSL-2888A Specifications

General

Ethernet WAN	Yes
SIM card slot	No
WAN connection type	RJ-11
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	1600 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11az, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11u, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
RJ-11 ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Firewall security	Dual Active Firewall
Security algorithms	WPA, WPA2, WPS-PBC, WPS-PIN
Product type	Tabletop router
Product color	Black
Antenna type	3x3
Antennas quantity	3
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Certification	CE, FCC, LVD, RCM

Weight and Dimensions

Depth	37 mm
Width	155 mm
Height	230 mm
Weight	523 g
