D-Link DWL-8600AP User Manual

Configuring and Viewing ISDP Information
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 152
D-Link UWS User Manual
Statistics
From the ISDP Statistics page, you can view information about the ISDP packets sent and received by the
switch. To display the ISDP Statistics page, click LAN > Monitoring > ISDP > Statistics in the navigation tree.

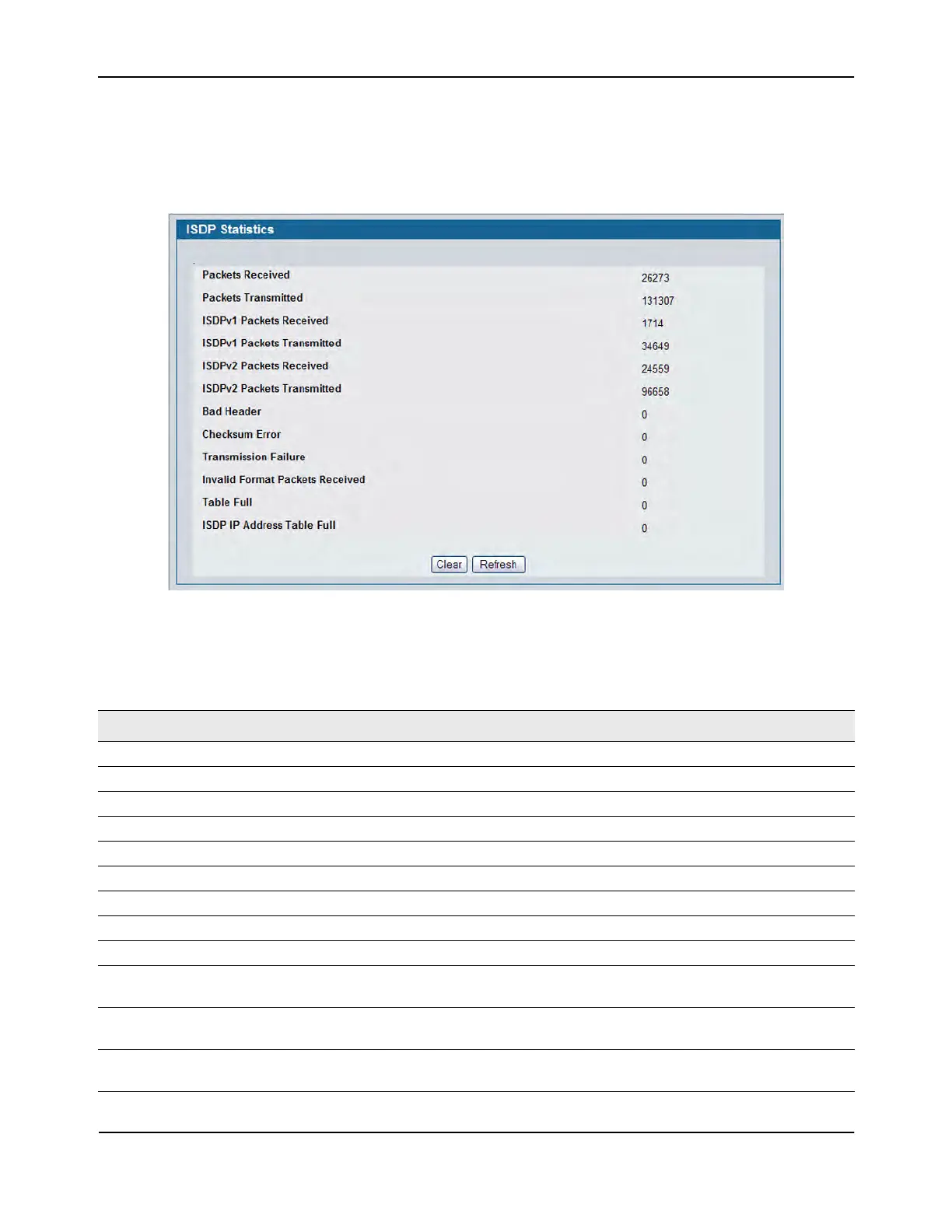

Figure 73: ISDP Statistics
The following table describes the fields available on the ISDP Statistics page.
Table 65: ISDP Statistics
Field Description
ISDP Packets Received Displays the number of all ISDP protocol data units (PDUs) received.
ISDP Packets Transmitted Displays the number of all ISDP PDUs transmitted.
ISDPv1 Packets Received Displays the number of v1 ISDP PDUs received.
ISDPv1 Packets Transmitted Displays the number of v1 ISDP PDUs transmitted.
ISDPv2 Packets Received Displays the number of v2 ISDP PDUs received.
ISDPv2 Packets Transmitted Displays the number of v2 ISDP PDUs transmitted.
ISDP Bad Header Displays the number of ISDP PDUs that were received with bad headers.
ISDP Checksum Error Displays the number of ISDP PDUs that were received with checksum errors.
ISDP Transmission Failure Displays the number of ISDP PDUs transmission failures.
Invalid Format ISDP Packets
Received
Displays the number of ISDP PDUs that were received with an invalid format.
Table Full Displays the number of times the system tried to add an entry to the ISDP
table but was unsuccessful because the table was full.
ISDP IP Address Table Full Displays the number of times the system tried to add an entry to the ISDP IP
Address table but was unsuccessful because the table was full.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
