Class Configuration
Use the Class Configuration page to add a new Diffserv class name, or to rename or delete an existing class.
The page also allows you to define the criteria to associate with a DiffServ class. As packets are received, these
DiffServ classes are used to prioritize packets. You can have multiple match criteria in a class. The logic is a
Boolean logical AND for this criteria.
To display the page, click LAN > QoS > Differentiated Services > Class Configuration in the navigation menu.
The fields available on the Class Configuration page depend on whether you create a new class or configure a
class that has already been created.

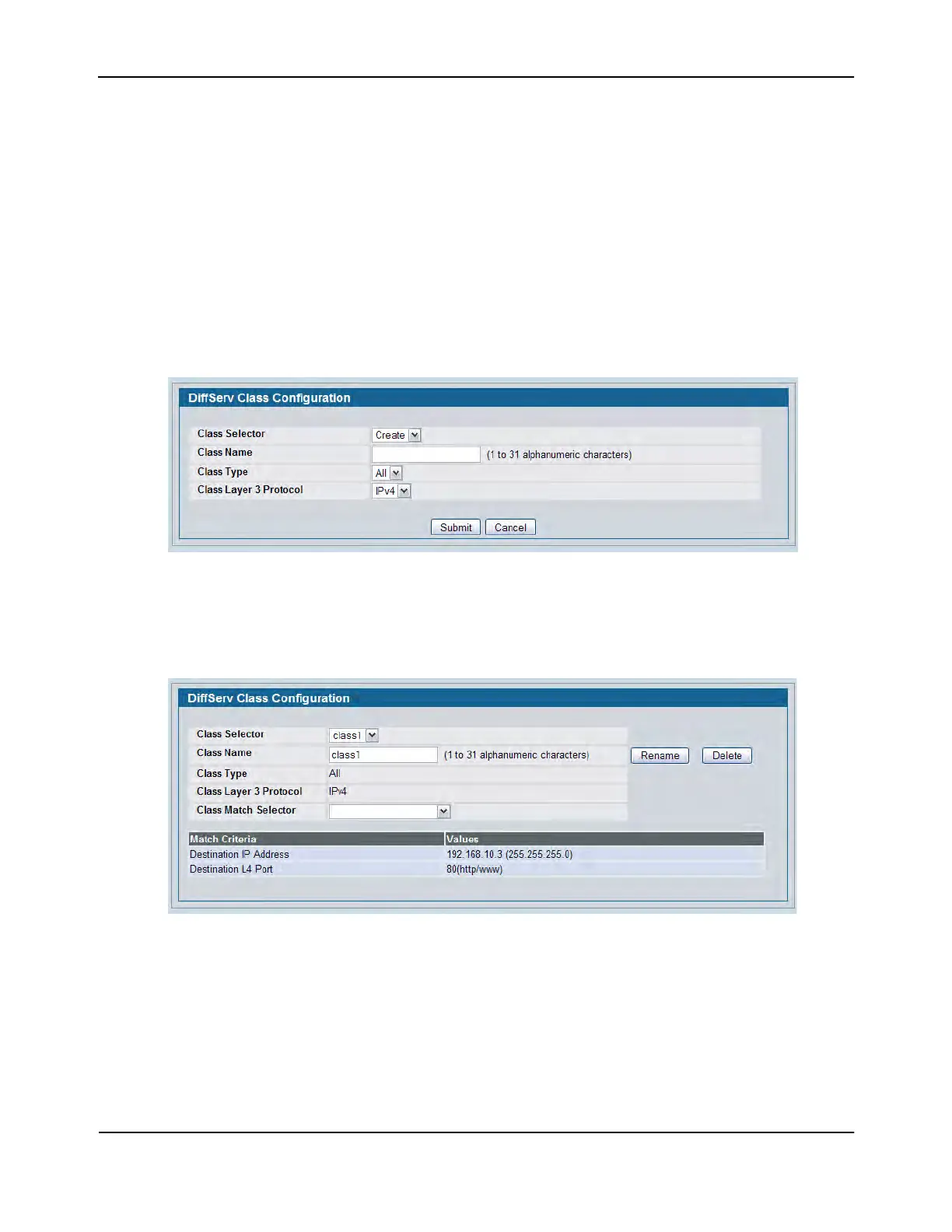

Figure 225 shows the Class Configuration page when the Class Selector option is Create.
Figure 225: DiffServ Class Configuration
Figure 226 shows the Class Configuration page when the Class Selector option shows a configured class. The
class has two class match selectors configured.
Figure 226: DiffServ Class Configuration
