D-Link DWL-8600AP User Manual

Detecting and Preventing Wireless Intrusion
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 730
D-Link UWS User Manual

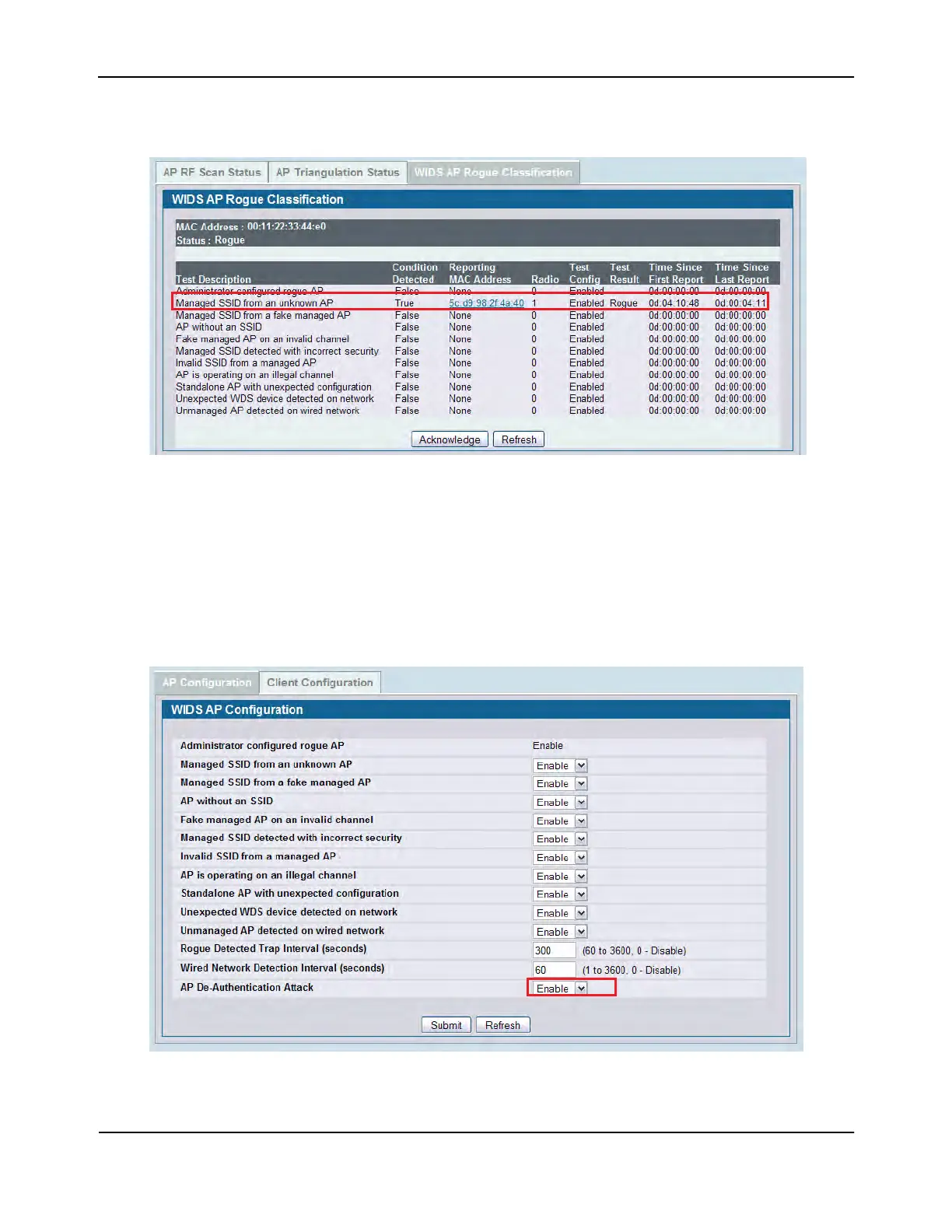

Click the WIDS AP Rogue Classification tab to learn which WIDS test triggered the rogue status.
Figure 446: WIDS Test Discovers Rogue
As Figure 446 shows, the honeypot AP is identified as a rogue because it triggered the Managed SSID from an
unknown AP test. In other words, the honeypot AP, which is an unknown AP to the company, is using the same
SSID as the legitimate AP inside the building.
At this point, no further action is taken by the DWS-4000 Series switch because the AP deauthentication attack
feature is disabled. To enable the AP to take further action, enable the AP De-Authentication Attack option on
the WLAN > Administration > Advanced Configuration > WIDS Security tab.
Figure 447: De-Authentication Attack Enabled

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
