Managed AP Location Summary
Use the Managed AP Location Summary page to view summary information about the location of the APs in
the wireless network. The page displays the APs with a location that has been manually configured or imported
from the WLAN Visualization tool.

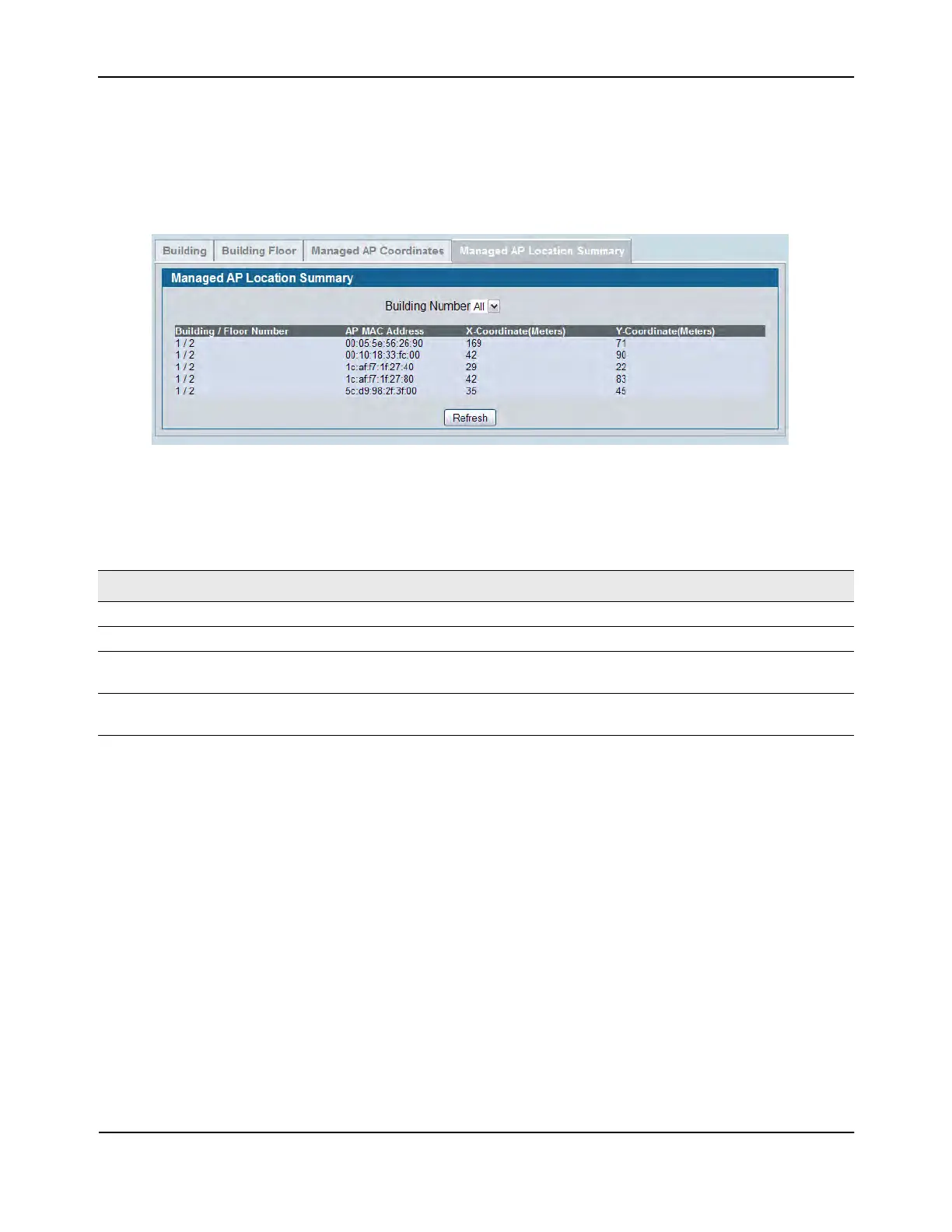

Figure 411: Managed AP Location Summary
The following table shows the fields available on the Managed AP Location Summary page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 377: Managed AP Location Summary
Field Description
Building/Floor Number Identifies the building and floor where the AP is located.
AP MAC Address Identifies the MAC address of the AP
X-Coordinate Identifies the X axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.
Y-Coordinate Identifies the Y axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
