Adding a Port Mirroring Session
1. From the LAN > Administration > Multiple Port Mirroring page, click Add Source Port to display the Add
Source Port page.

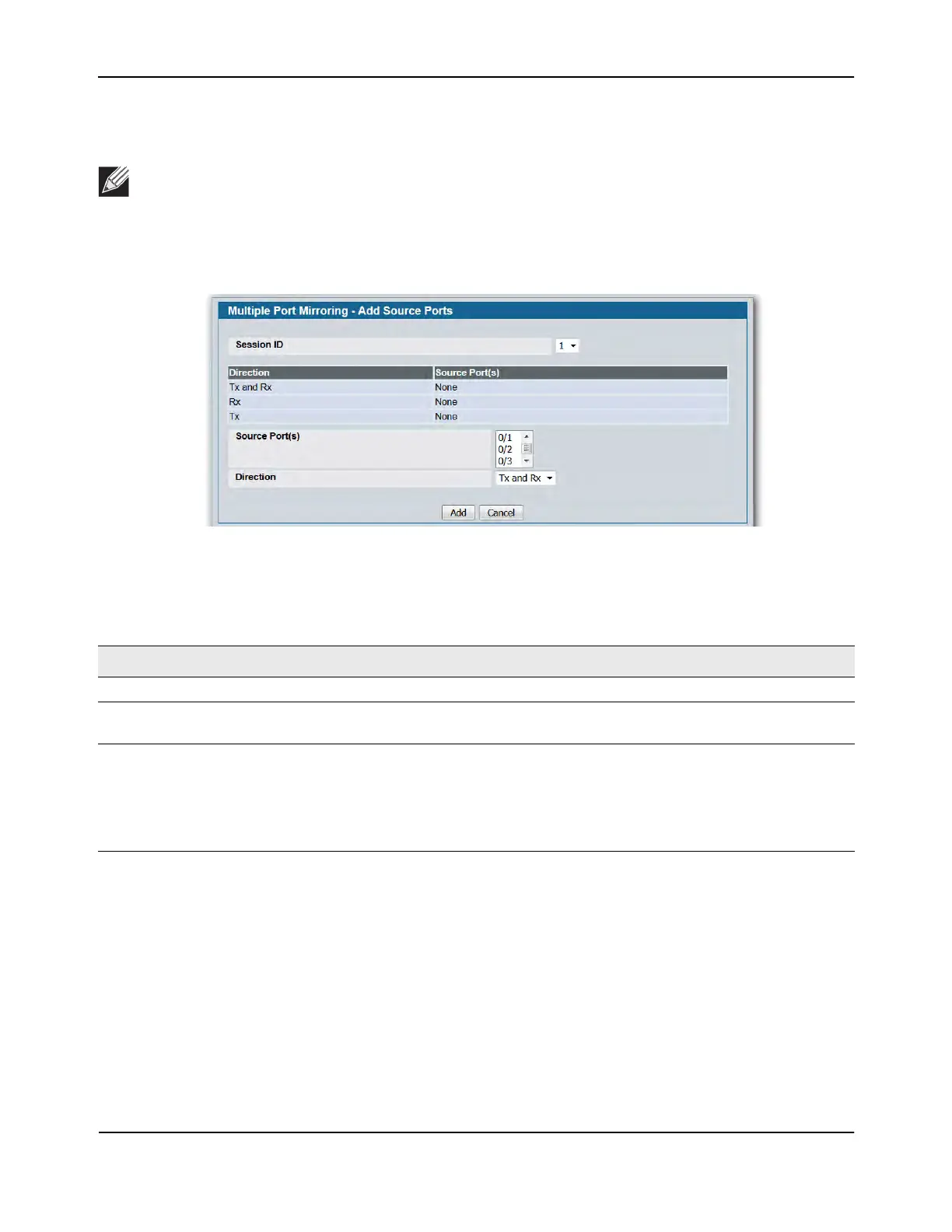

Figure 25: Multiple Port Mirroring—Add Source Ports
2. Configure the following fields:
3. Click Add to apply the changes to the system.
The new port mirroring session is enabled for the unit and port, and the device is updated. The source port
appears in the Source Port list on the Multiple Port Mirroring page.
Note: A Port will be removed from a VLAN or LAG when it becomes a destination mirror.
Table 20: Multiple Port Mirroring—Add Source Fields
Field Description
Session ID Specifies the monitoring session.
Source Port(s) Select the unit and port from which traffic is mirrored. Up to eight source
ports can be mirrored to a destination port.
Direction Select the type traffic monitored on the source port, which can be one of the
following:
• Tx: Monitors transmitted packets only.
• Rx: Monitors received packets only.
• Tx and Rx: Monitors transmitted and received packets.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
