Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 512
D-Link UWS User Manual
Viewing Detailed Associated Client Association Statistics
The statistics on the WLAN > Monitoring > Client > Associated Clients > Statistics > Association Detail tab
displays the Associated Client Statistics page. This page shows information about the traffic a wireless client
receives and transmits while it is associated with a single AP. Use the menu above the table to view details
about an associated client. Each client is identified by its MAC address.

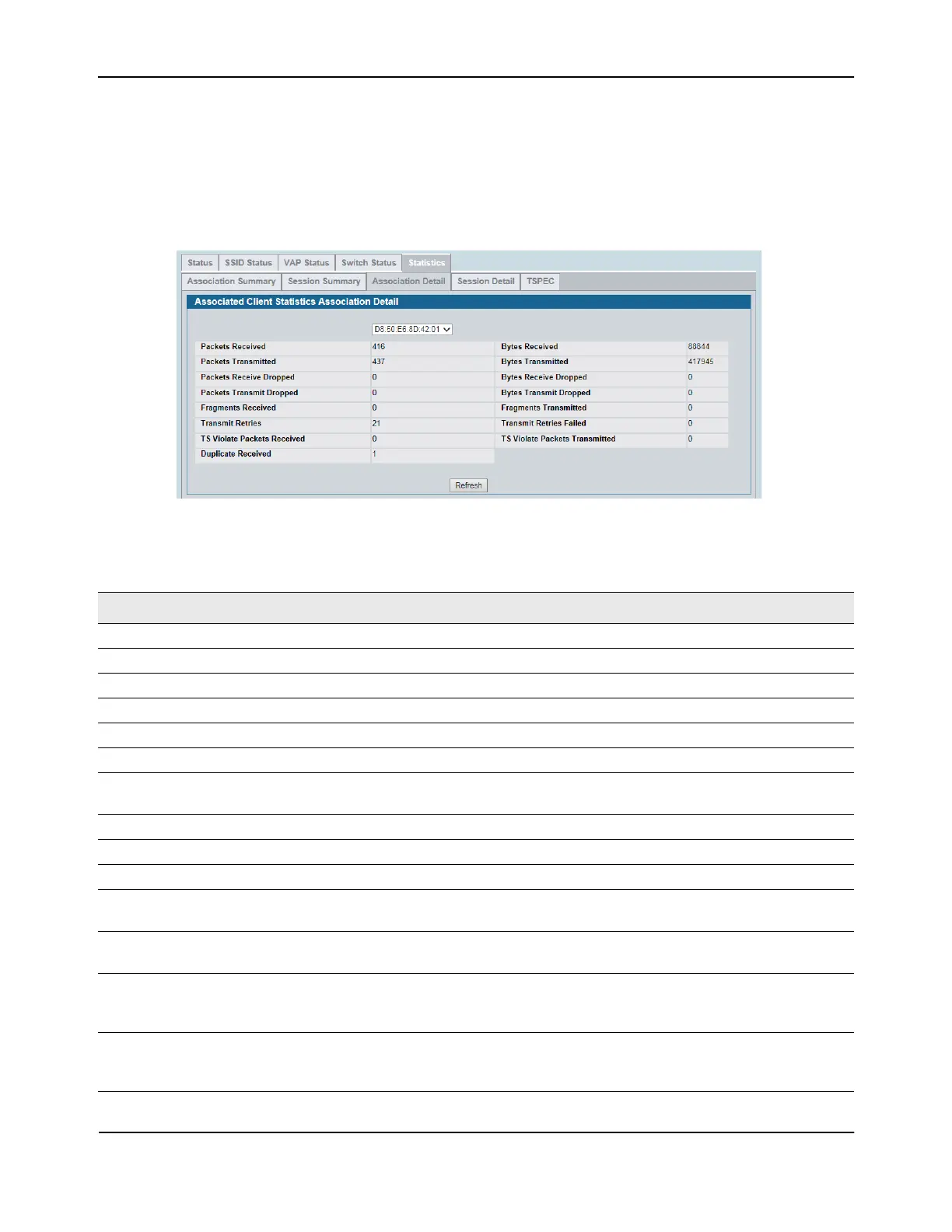

Figure 336: Associated Client Association Detail Statistics
Table 304: Associated Client Association Detail Statistics
Field Description
Packets Received Total packets received from the client station.
Bytes Received Total bytes received from the client station.
Packets Transmitted Total packets transmitted to the client station.
Bytes Transmitted Total bytes transmitted to the client station.
Packets Receive Dropped Number of packets received from the client station that were dropped.
Bytes Receive Dropped Number of bytes received from the client station that were dropped.
Packets Transmit Dropped Number of packets transmitted to the client station that were
dropped.
Bytes Transmit Dropped Number of bytes transmitted to the client station that were dropped.
Fragments Received Total fragmented packets received from the client station.
Fragments Transmitted Total fragmented packets transmitted to the client station.
Transmit Retries Number of times transmits to client station succeeded after one or
more retries.
Transmit Retries Failed Number of times transmits to client station failed after one or more
retries.
TS Violate Packets Received Number of packets sent from a client to the AP in excess of its active
traffic stream (TS) uplink bandwidth, or for an access category
requiring admission control to which the client has not been admitted.
TS Violate Packets Transmitted Number of packets sent from the AP to a client in excess of its active
traffic stream downlink bandwidth, or for an access category requiring
admission control to which the client has not been admitted.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
