Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 192
D-Link UWS User Manual
Protocol-Based VLAN Summary
Use the Protocol-based VLAN Summary page to view information about protocol-based VLAN groups
configured on the system.
To access the Protocol-based VLAN Summary page, click LAN > Monitoring> VLAN Summary > Protocol-based
VLAN Port Summary in the navigation tree.

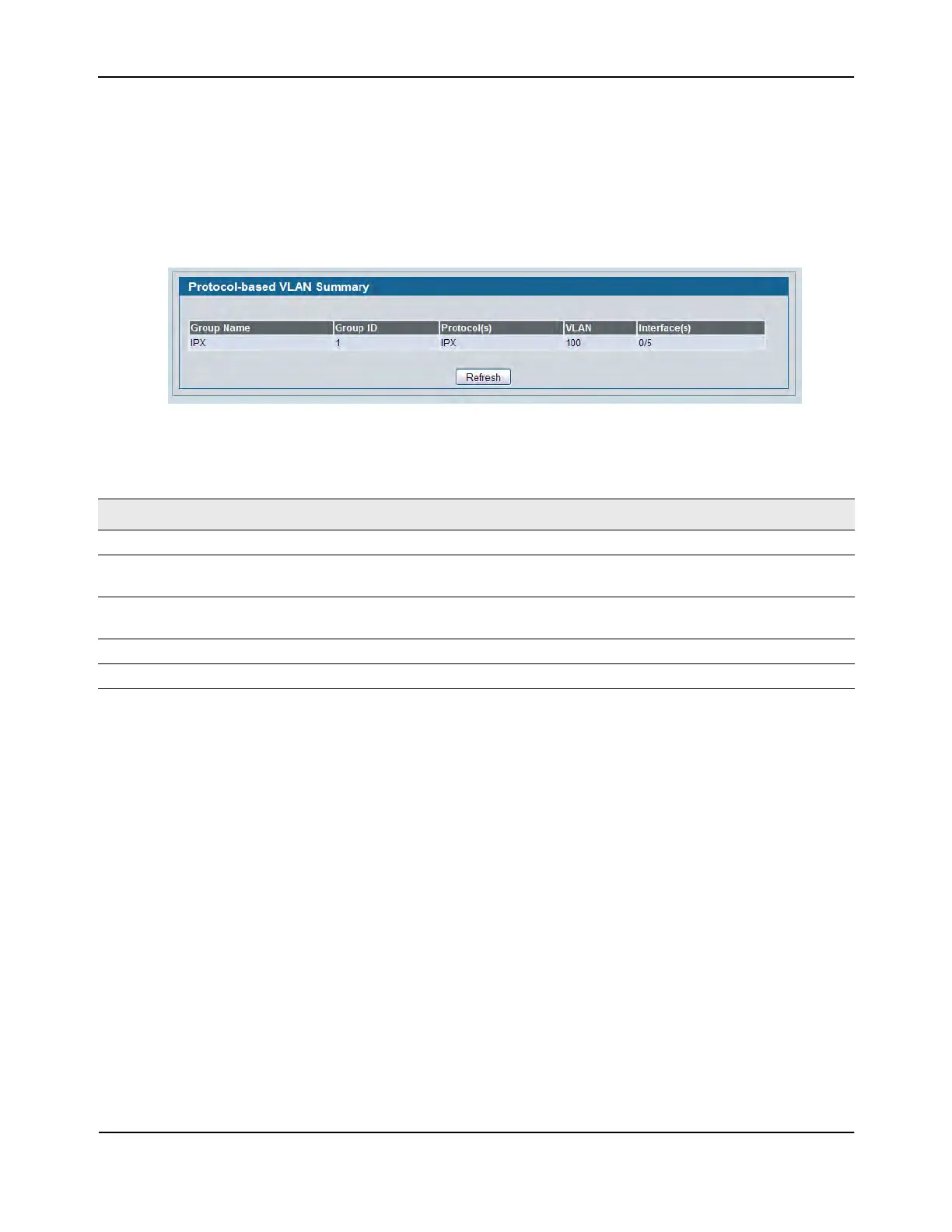

Figure 101: Protocol-based VLAN Summary
• Click Refresh to reload the page and display the most current information.
Table 87: Protocol-based VLAN Summary Fields
Field Description
Group Name Shows the user-defined name associated with protocol group.
Group ID Shows the number that identifies the group you create. Group IDs are
automatically assigned when you create a group.
Protocols Shows the protocol keyword or protocol value (hex or decimal numbers) to
associate with this group, which can be one or more of the following:
VLAN Specifies the VLAN ID associated with this group.
Interface Shows the interfaces participating in this group.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
