D-Link DWL-8600AP User Manual

Reset Passwords to Defaults
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 170
D-Link UWS User Manual
Reset Passwords to Defaults
Use the Reset Passwords to Defaults page to reset the passwords for the default read/write (admin) and read-
only (guest) users on the system. By default, the passwords are blank. If you have configured additional read-
only users on your system, their passwords are not affected.
To access the Reset Passwords to Defaults page, click Tool > Reset Password in the navigation tree.

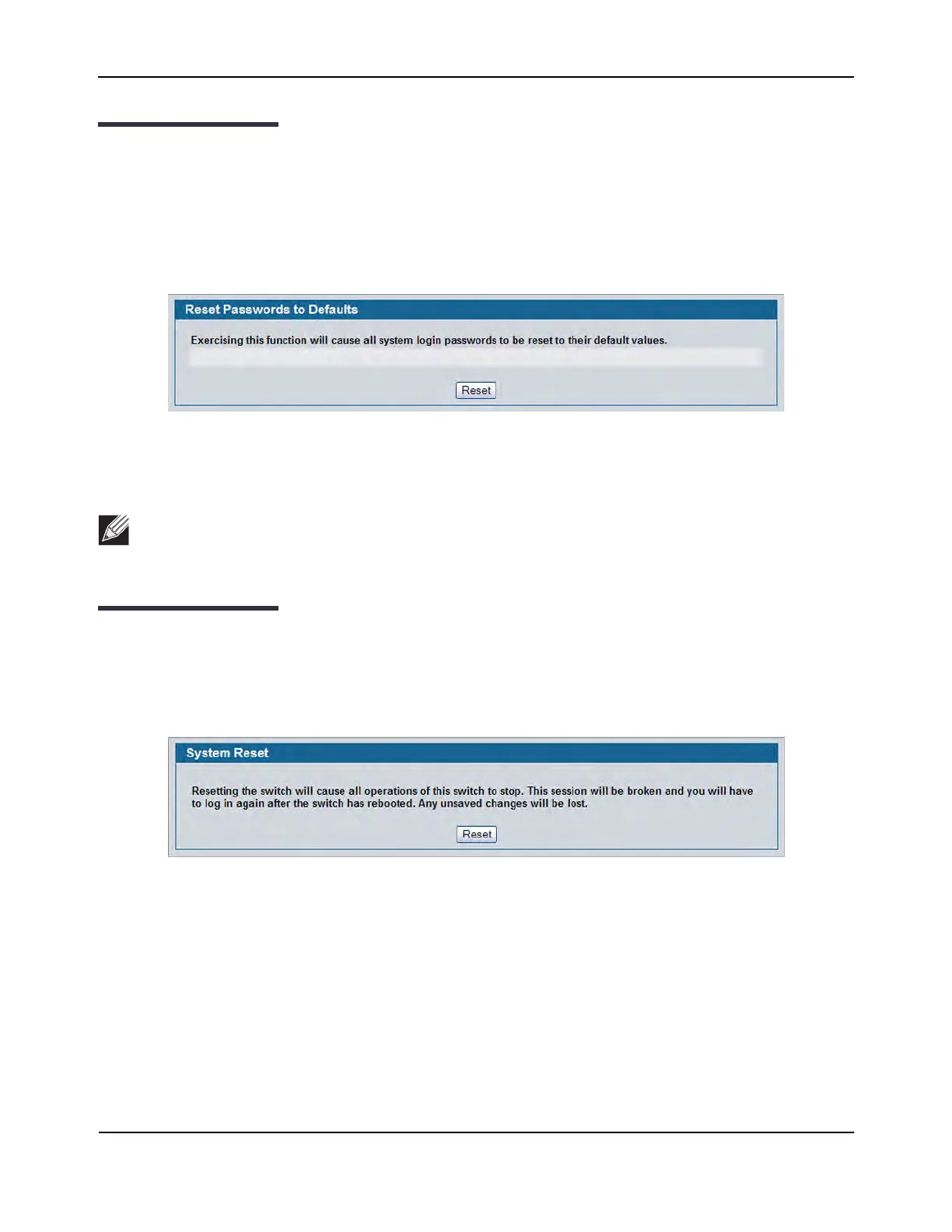

Figure 83: Reset Passwords to Defaults
• Click Reset to restore the passwords for the default users to the factory defaults.
System Reset
Use the System Reset page to reboot the system.
To access the System Reset page, click Tool > Reboot System in the navigation tree.
Figure 84: System Reset
• Click Reset to initiate the system reset. If you have not saved the changes that you submitted since the
last system reset, the changes will not be applied to the system after the reset.
Note: When the password for the read/write user (admin) changes, you must re-authenticate with
the username and default password.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
