Loopback Interfaces
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 302
D-Link UWS User Manual

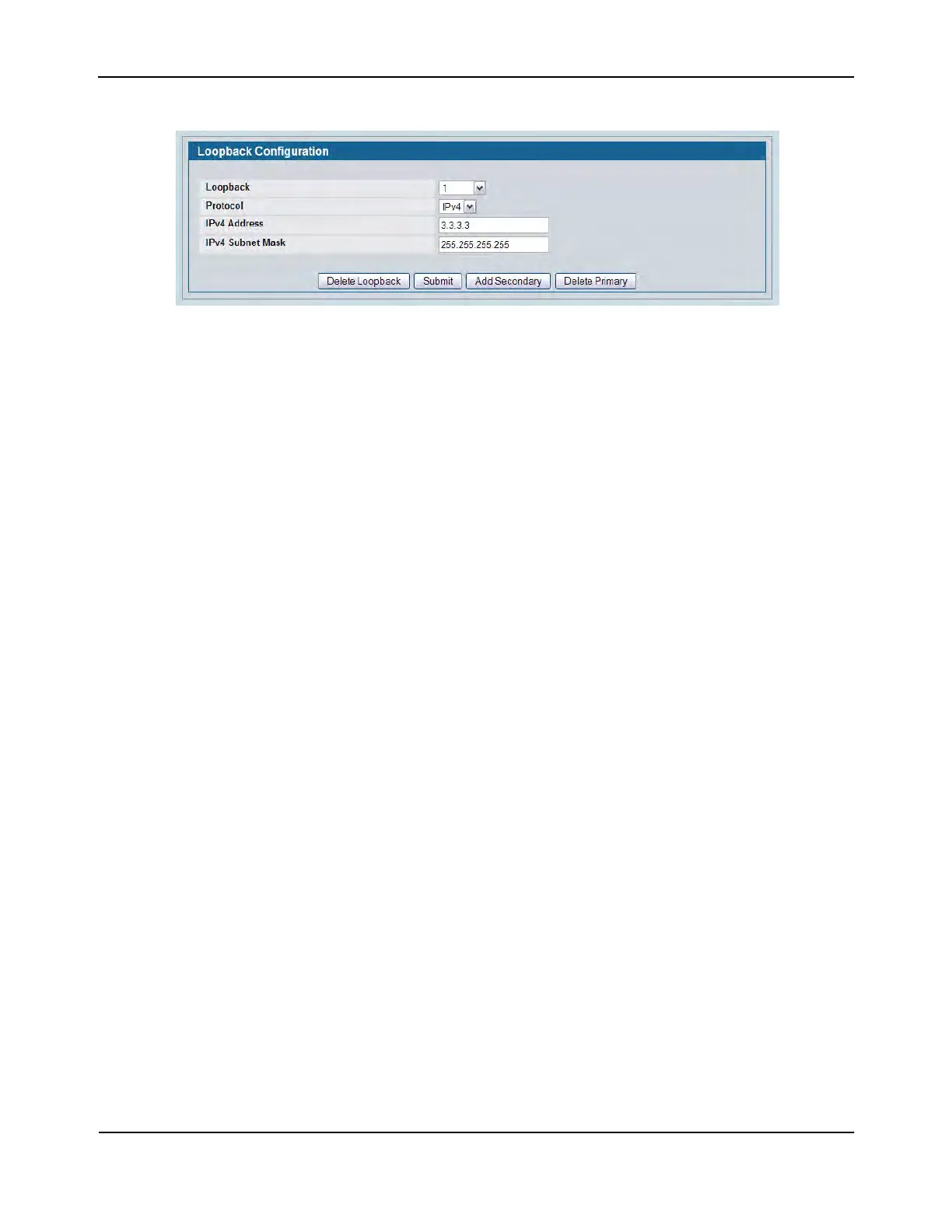

Figure 192: Loopbacks Configuration—IPv4 Entry
4. In the Protocol field, select IPv4
5. Enter desired values in the remaining fields.
6. Click Submit.
The new loopback is saved, and the web page reappears showing secondary address configuration fields.
For an example of the fields on this page, see Figure 191.
7. Optionally, click the Add Secondary field to add a secondary IP address and complete the Secondary
Address, Secondary IP Address, and Secondary Subnet Mask fields.
8. Click Submit.
Removing a Loopback
1. Open the Loopback Configuration page.
2. Specify the loopback to remove in the Loopback menu.
3. Click Delete Loopback.
The loopback is deleted, and the device is updated.
Removing a Secondary Address
1. Open the Loopback Configuration page.
2. Specify the loopback to be affected.
3. Specify the secondary address to be removed.
4. Click Delete Selected Secondary.
The secondary address is deleted, and the device is updated.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
