D-Link DWL-8600AP User Manual

Captive Portal Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 402
D-Link UWS User Manual
Table 232 describes the fields displayed on the CP Global Status page.
Viewing CP Activation and Activity Status
The CP Activation and Activity Status page provides information about each CP configured on the switch.

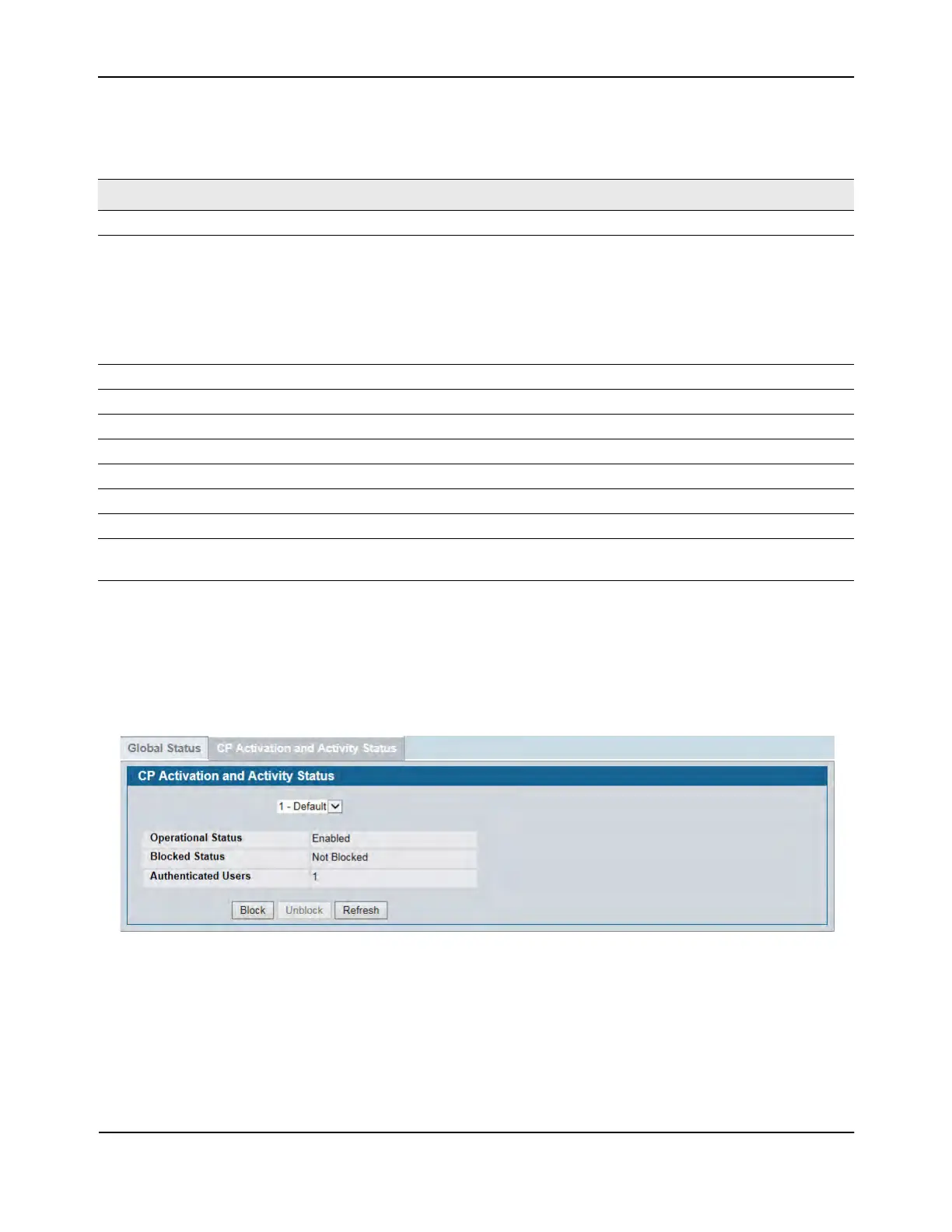

Figure 272: CP Activation and Activity Status
The CP Activation and Activity Status page has a drop-down menu that contains all captive portals configured
on the switch. When you select a captive portal, the activation and activity status for that portal displays.
Table 232: Global Captive Portal Status
Field Description
CP Global Operational Status Shows whether the CP feature is enabled.
CP Global Disable Reason Indicates the reason for the CP to be disabled, which can be one of the
following:
• None
• Administratively Disabled
• No IPv4 Address
• Routing Enabled, but no IPv4 routing interface
Supported Local Users Shows the number of entries that the Local User database supports.
Configured Local Users Shows the number of users configured in the system.
System Supported Users Shows the number of authenticated users that the system can support.
CP IP Address Shows the captive portal IP address
Supported Captive Portals Shows the number of supported captive portals in the system.
Configured Captive Portals Shows the number of captive portals configured on the switch.
Active Captive Portals Shows the number of captive portal instances that are operationally enabled.
Authenticated Users Shows the number of users currently authenticated to all captive portal
instances on this switch.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
