Configuring Differentiated Services
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 351
D-Link UWS User Manual
DiffServ Service Summary
The DiffServ Service Summary page provides an overview of the policies-port associations. To display the page,
click LAN > Monitoring > Differentiated Services > Service Summary in the navigation menu.

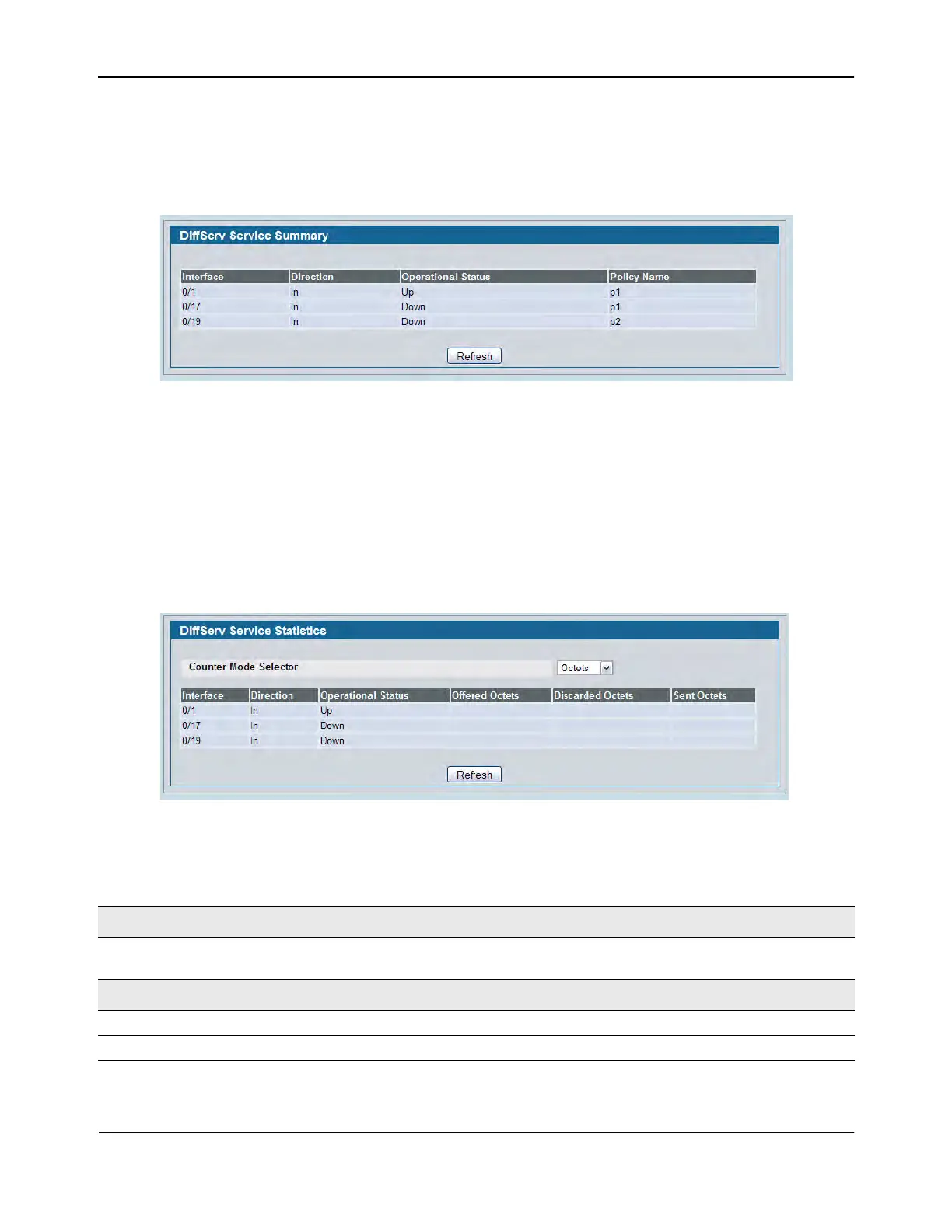

Figure 234: Service Summary
Service Statistics
Use the Service Statistics page to display service-level statistical information about all interfaces that have
DiffServ policies attached.
To display the page, click LAN > Monitoring > Differentiated Services > Service Statistics in the navigation
menu.
Figure 235: Service Statistics
Table 209: Service Statistics Fields
Field Description
Counter Mode Selector Use the menu to determine the format of the displayed counter values, which
must be either Octets or Packets. The default is Octets.
Service Statistics
Interface Shows the interface for which service statistics are to display.
Direction Shows the direction of packets for which service statistics display.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
