RADIUS Settings

D-Link Unified Wired and Wireless Access System

Oct. 2015 Page 413

D-Link UWS User Manual

RADIUS Server Configuration

From the RADIUS Authentication Server Configuration page, you can add a new RADIUS server, configure

settings for a new or existing RADIUS server, and view RADIUS server status information. The RADIUS client on

the switch supports up to 32 named authentication and accounting servers.

To access the RADIUS Server Configuration page, click LAN > Security > RADIUS > RADIUS Authentication

Server Configuration in the navigation menu.

If there are no RADIUS servers configured on the system, or if you select Add from the RADIUS Server Host

Address menu, a subset of the fields described in the following table are available. After you enter the RADIUS

host address and click Submit, the additional configuration fields appear.

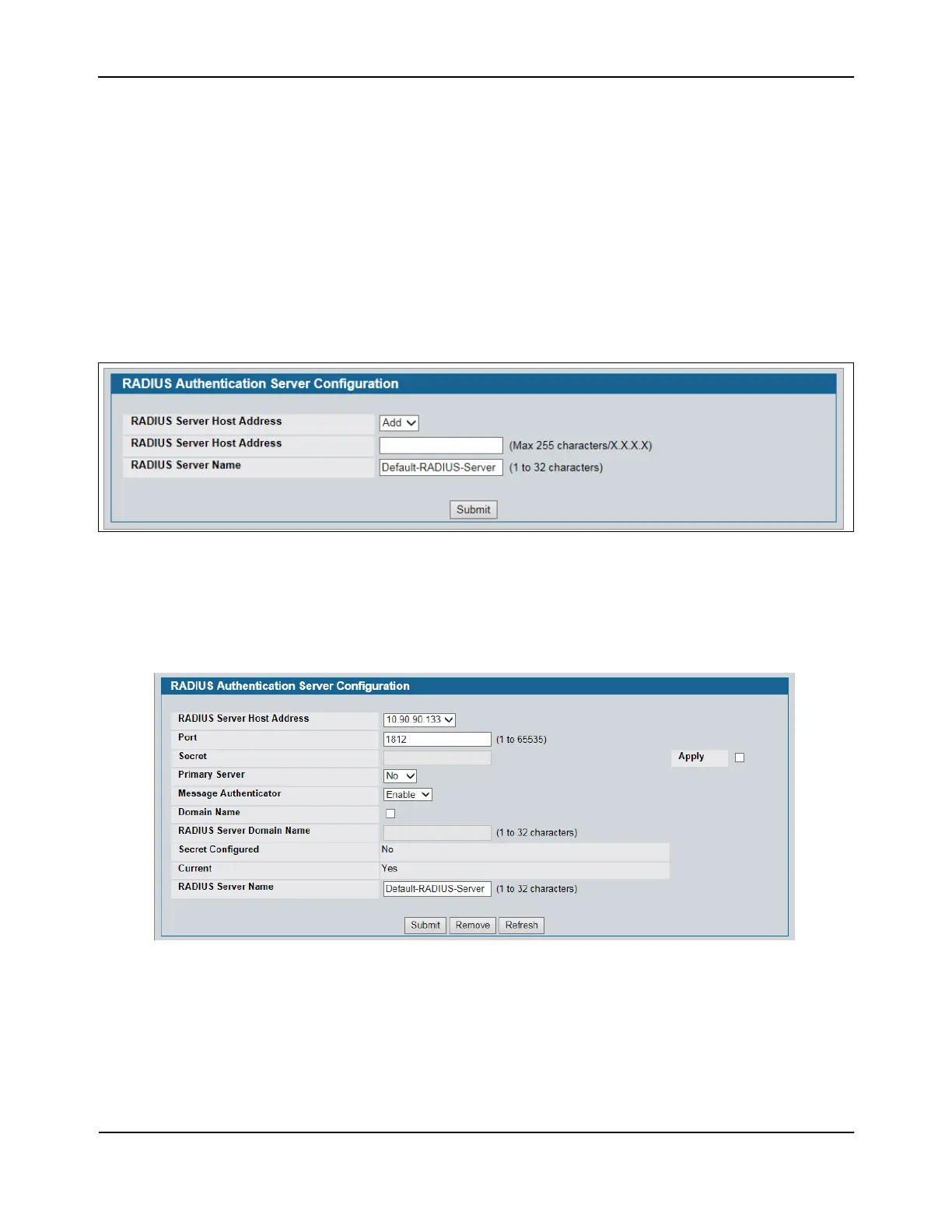

Figure 282: RADIUS Server Configuration—Add Server

If at least one RADIUS server is configured on the switch, and a host address is selected in the RADIUS Server

Host Address field, then additional fields are available on the RADIUS Server Configuration page.

Figure 283: RADIUS Server Configuration—Server Added

Other manuals for D-Link DWL-8600AP

Questions and Answers:

Need help?

Do you have a question about the D-Link DWL-8600AP and is the answer not in the manual?

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.
