Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 513
D-Link UWS User Manual
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Viewing Detailed Associated Client Session Statistics
The statistics on the WLAN > Monitoring > Client > Associated Clients > Statistics > Session Detail page show
information about the traffic a wireless client receives and transmits while it is connected to the same WLAN
network shared by APs that the switch manages. Use the menu above the table to view details about an
associated client. Each client is identified by its MAC address.

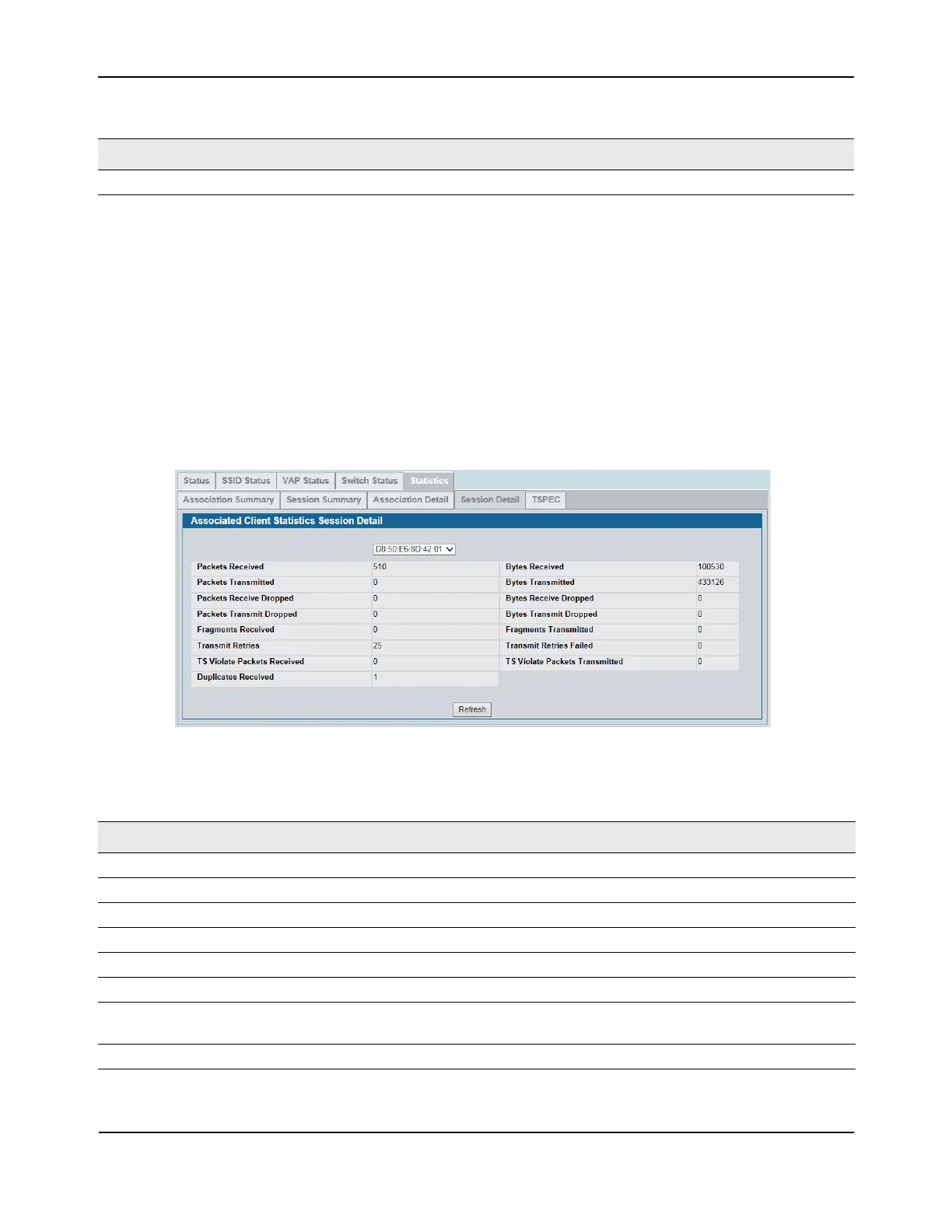

Figure 337: Associated Client Session Detail Statistics
Duplicates Received Total duplicate packets received from the client station.
Table 305: Associated Client Session Detail Statistics
Field Description
Packets Received Total packets received from the client station.
Bytes Received Total bytes received from the client station.
Packets Transmitted Total packets transmitted to the client station.
Bytes Transmitted Total bytes transmitted to the client station.
Packets Receive Dropped Number of packets received from the client station that were dropped.
Bytes Receive Dropped Number of bytes received from the client station that were dropped.
Packets Transmit Dropped Number of packets transmitted to the client station that were
dropped.
Bytes Transmit Dropped Number of bytes transmitted to the client station that were dropped.
Table 304: Associated Client Association Detail Statistics (Cont.)
Field Description

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
