D-Link DWL-8600AP User Manual

Configuring a Network with WDS-Managed APs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 704
D-Link UWS User Manual

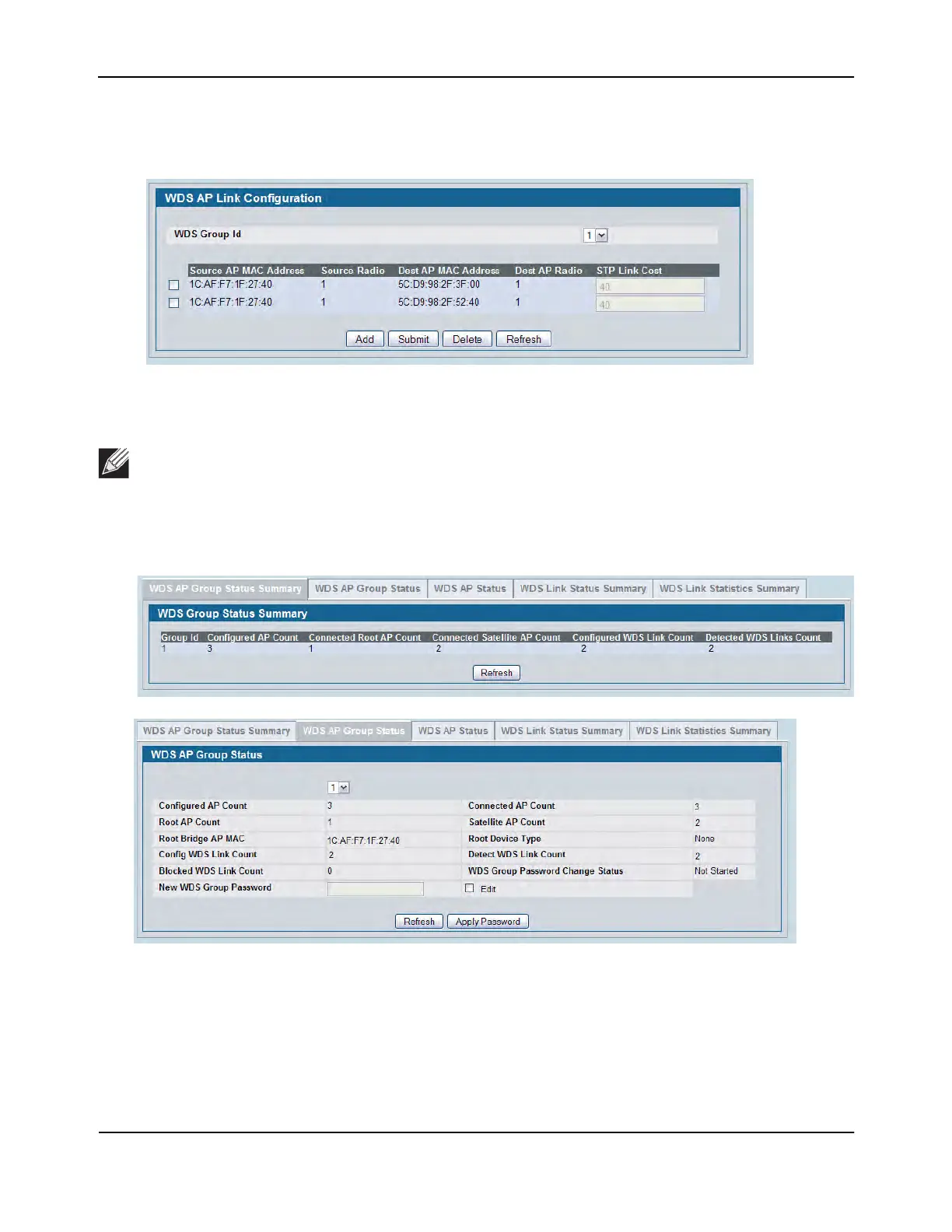

20. Return to the WLAN > Administration > WDS Configuration > Link Configuration page to verify the link
settings.
21. Deploy the APs, if they have not already been deployed. After the Root AP is discovered and has become
managed, it will scan for the Satellite APs. As they are discovered, they will become managed.
22. To verify that the WDS links and APs are operating as expected, navigate to WLAN > Monitoring > WDS
Managed APs.
Note: It might take several minutes for the APs to establish WDS links and to become managed.

D-Link DWL-8600AP Specifications

General

Modulation	DBPSK, DQPSK, DSSS, OFDM
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	300 Mbit/s
Frequency range	2400 - 2497 MHz
Wireless technology	802.11a/b/g/n
Compliance industry standards	IEEE 802.11a, 802.11b, 802.11g, 802.11n, IEEE 802.3, 802.3u, IEEE 802.11d, IEEE 802.11h, IEEE 802.3x, IEEE 802.3af
Antenna connector type	SMA
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
AC input voltage	48 V
Power supply type	DC
Power consumption (typical)	12 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	-FCC Class B, -CE, -C-Tick, -VCCI, -TELEC, -Wi-Fi, - ICES-003, -EN60601-1-2, -NCC, -CSA.

Weight and Dimensions

Weight	1020 g
Dimensions (WxDxH)	190.5 x 198.8 x 36.8 mm
