6-3

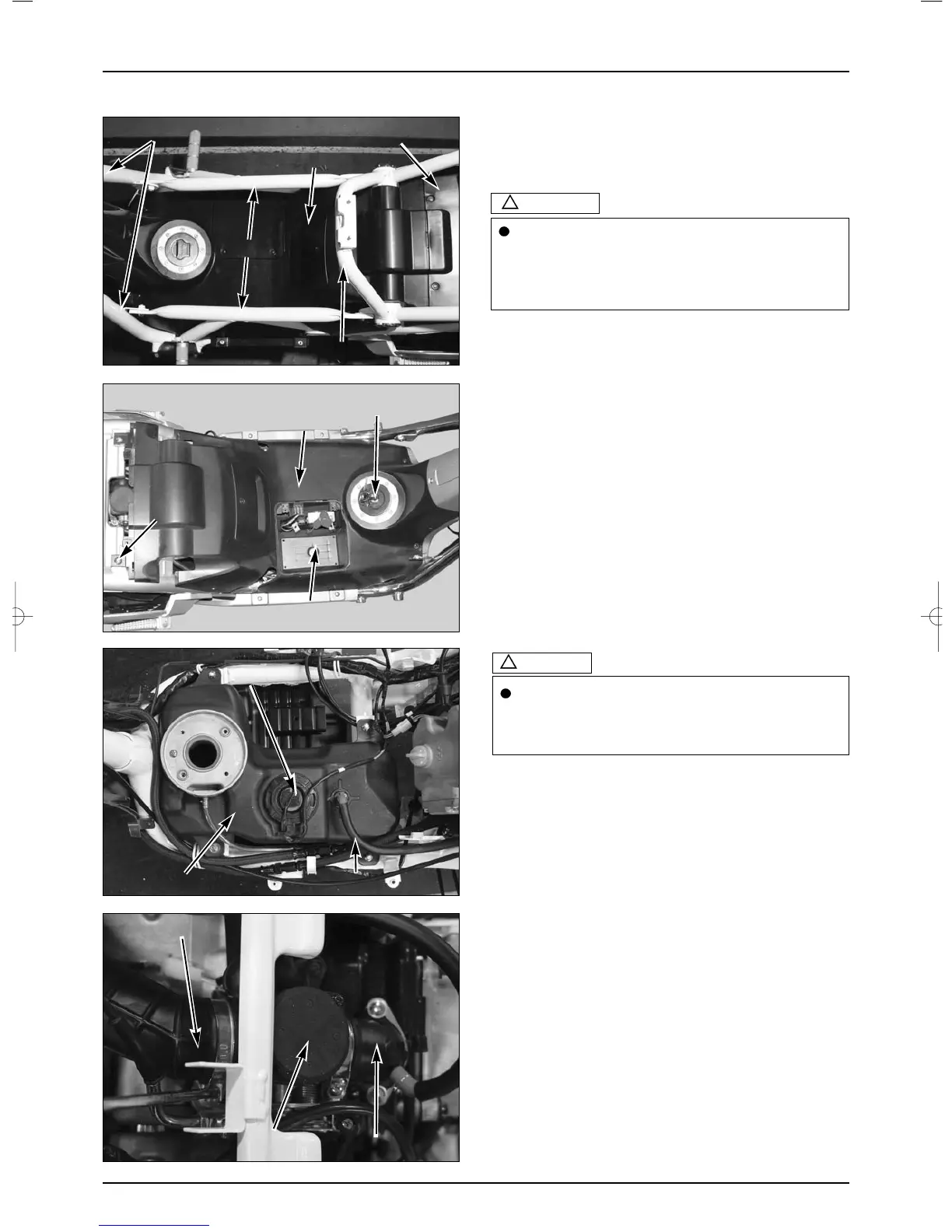

FUEL SYSTEM

FUEL TANK

REMOVAL

● Release the seat lock by turning the main switch key to

open the seat.

● Remove the following parts.

- Rear fender.

- Seat support pipe.

- Center cover.

- Truss pipe.

- Battery.

- Floor panel.

● Remove the fuel unit wiry coupler.

● Remove the fuel strainer tube.

● Remove the flange nut.

● Remove the fuel tank.

● Install in the revers order removal.

CARBURETOR

REMOVAL

- Rear fender.

- Center cover.

- Air cleaner connecting tube band.

CRADLE PIPE

TRUSS PIPE COMP

FLOOR PANEL

CENTER COVER

SEAT SUPPORT PIPE

FLANGE BOLT

FUEL CAP

FUEL TANK

FUEL UNIT

FUEL STRAINER TUBE

AIR CLEANER CONNECTING BAND

CARBURETOR

INSULATOR

FLOOR PANEL

SPECIAL SCREW

Gasoline is extremely flammable. Avoid fire during

work, and pay particular attention to electric sparks.

Furthermore, the evaporated (gasified) gasoline is highly

explosive. Work in a well-ventilated areas.

WARNING

After removing the fuel tank be sure to close

the fuel tank cap.

(Gasoline is extremely flemmable)

CAUTION
