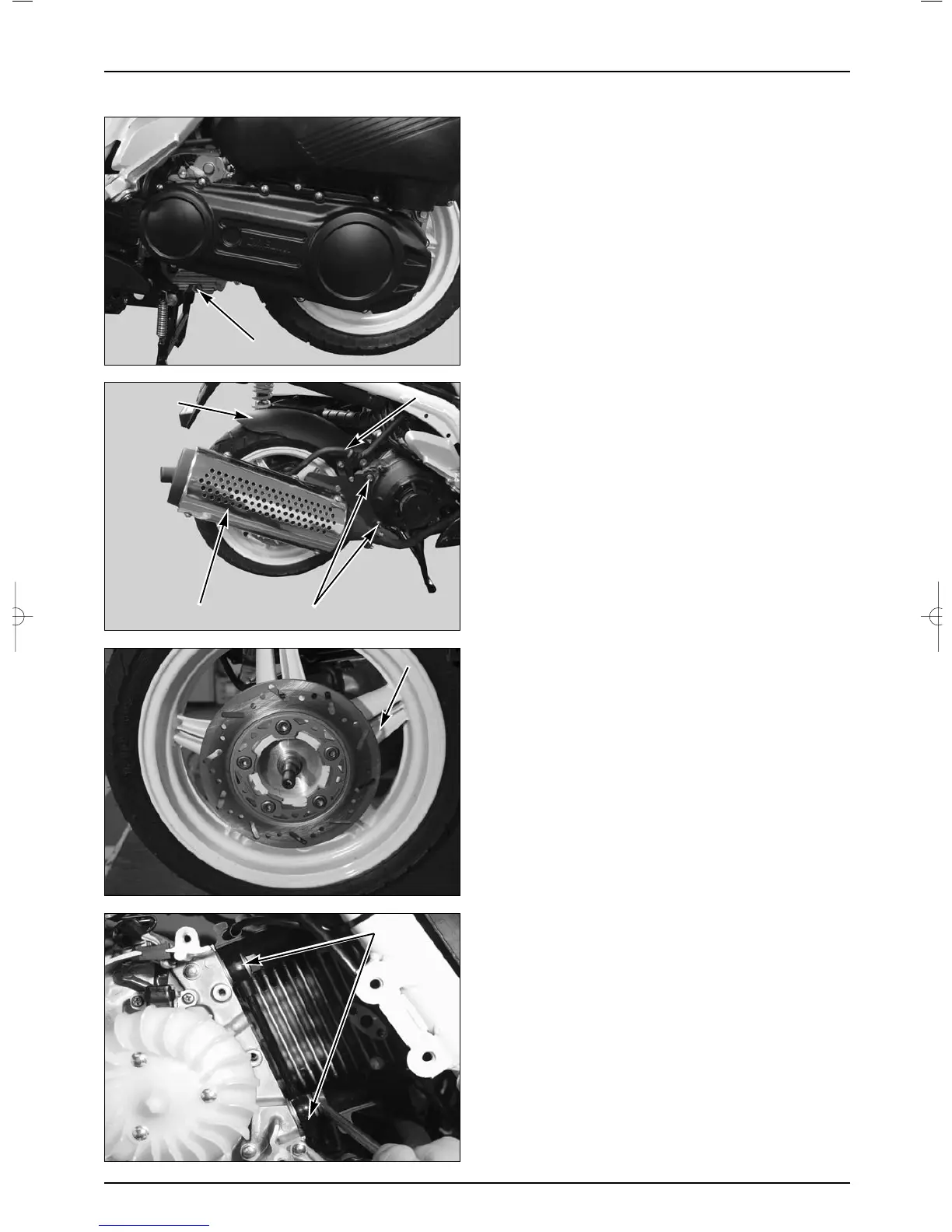

ENGINE REMOVAL/INSTALLATION

ENGINE REMOVAL

● Drain the engine oil.

● Release the seat lock by turning the main switch key to

open the seat.

● Remove the following parts.

- Rear under cover.

- Air cleaner (2-5)

- Carburetor (6-3)

● Disconnect the ACG coupler and connector wiring

connected to the ACG, disconnect the starter motor

wiring cable.

● Disconnect the high-tension cord from the engine.

● Remove the bleeder tube from the cylider hesd cover.

● Remove

- Muffler

- Rear brake caliper

- Swing arm

- Rear wheel mudguard

● Loosen the U nut.

● Remove the rear wheel.

● Remove the RH. shroud.

● Remove the RH. radiater hose.

DRAIN PLUG BOLT

MUFFLER

MUDGUARD

FLANGE BOLT

BRAKE HOSE

REAR WHEEL

RADIATER HOSE
