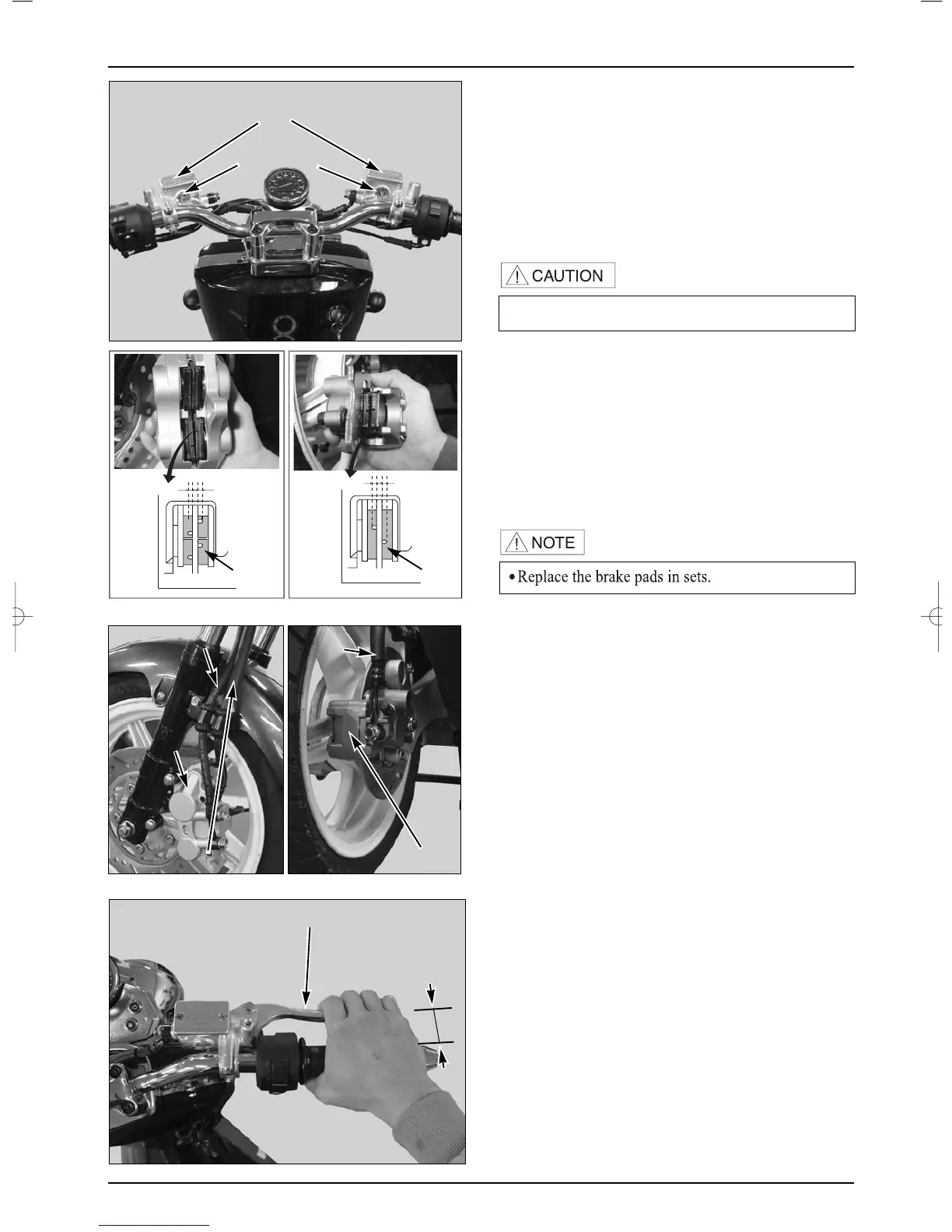

INSPECTIONS/ADJUSTMENTS

FREE PLAY

BRAKE FLUID

●Check the oil level inside the front brake reservoir.

If the oil level is near the lower limit line, remove

the reservoir diaphrag mand fill DOT3 and DOT 4

brake fluid to the top limit line.

●If the brake fluid reaches the lower limit line, check

the entire brake system for leaks.

BRAKE SYSTEM

●Check the front brake hose for cracks or damage.

If any leaks are found,replace immediately

BRAKE LEVER FREE PLAY

●Check the free play after pulling the lever.

FRONT: 10~20mm

REAR: 10~20mm

BRAKE LEVER

ROD MARK

BRAKE PAD

ROD MARK

BRAKE PAD

•If the brake pad is worn severely brake fluid level

can be down.

BRAKE PAD

BRAKE PAD REPLACEMENT

●Check the brake pads for wear.

●If the rod mark on the pad reaches the brake

disc, replace the pads.

MASTER CYLINDER

CHECK GLASS

REAR BRAKE HOSE

DUBLE BRAKE HOSE

FRONT CALLIPER

FRONT BRAKE HOSE

REAR CALIPER
