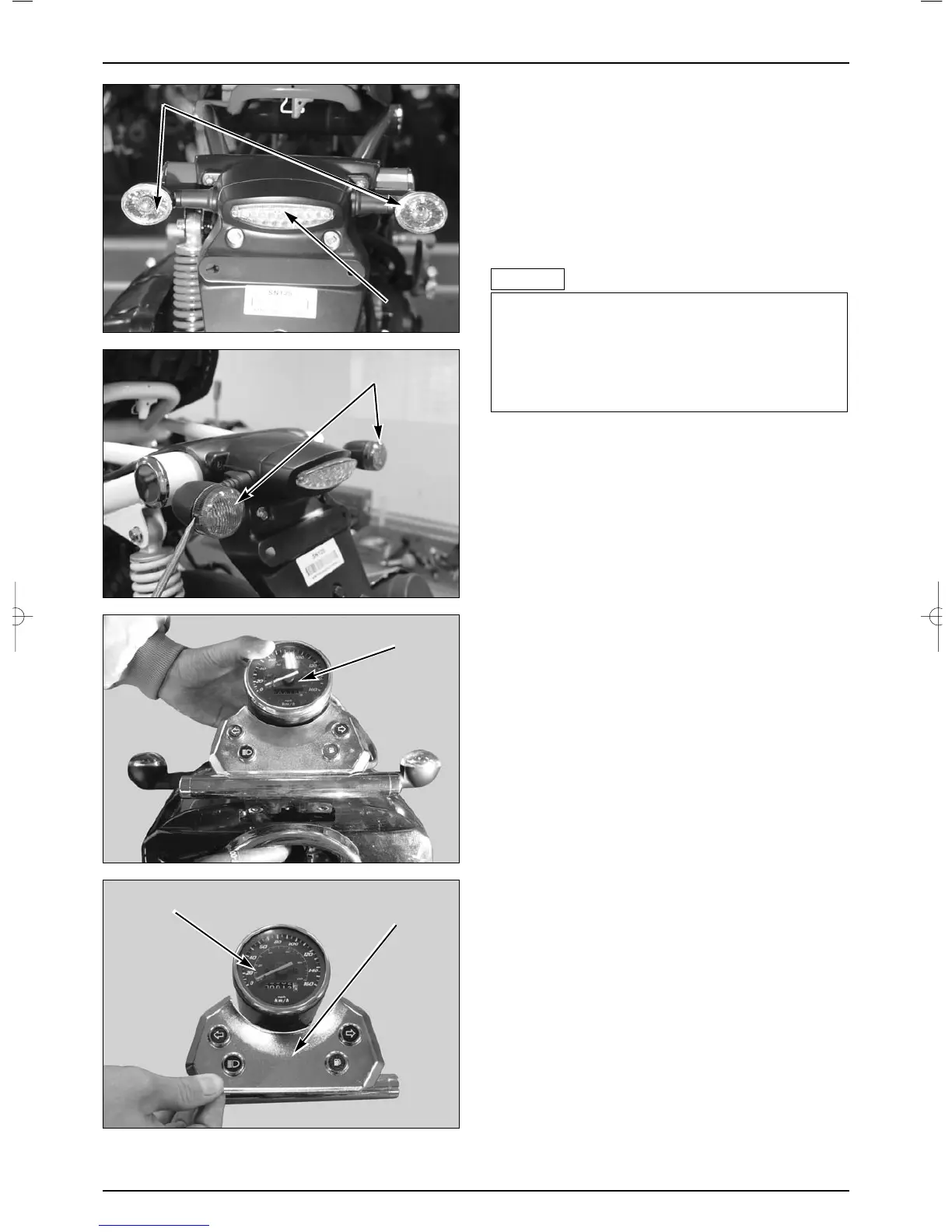

LIGHTS/SWITCHES/HORN

TAIL & STOP BULB

REAR WINKER

SPEEDOMETER

PILOT BOX

REAR TAIL LIGHT

ASSEMBLY REPLACEMENT

● Remove the rear upper cover.

● Loosen the 2 screws securing the rear tail light.

● Remove the coupler link to the tail light.

● The tail light is LED light so, replace it with assembly

parts.

● Install in the reverse order of removal.

●Pay attention not to damage the lens.

●Do not apply excessive force when removing

the lens.

●Check the installation of the tail light and lens

seal accurately.

NOTE

△

REAR WINKER

BULB REPLACEMENT

● Press the lock on the side of the winker base and

remove the rear winker cover.

● Remove the winker lens.

● Remove the bulb from the socket and replace with a

new bulb.

● Install in the reverse order of removal.

SPEEDOMETER

REMOVAL

● Remove the inner box.

● Remove the headlight.

● Remove the wiring coupler and speedometer cable.

● Loosen the flange bolt securing the pilot box on the

inner box and remove the speedometer set.

● Loosen the bolt securing the pilot box from the

speedometer set and remove the speedometer assembly.

● Install in the reverse order of removal.
